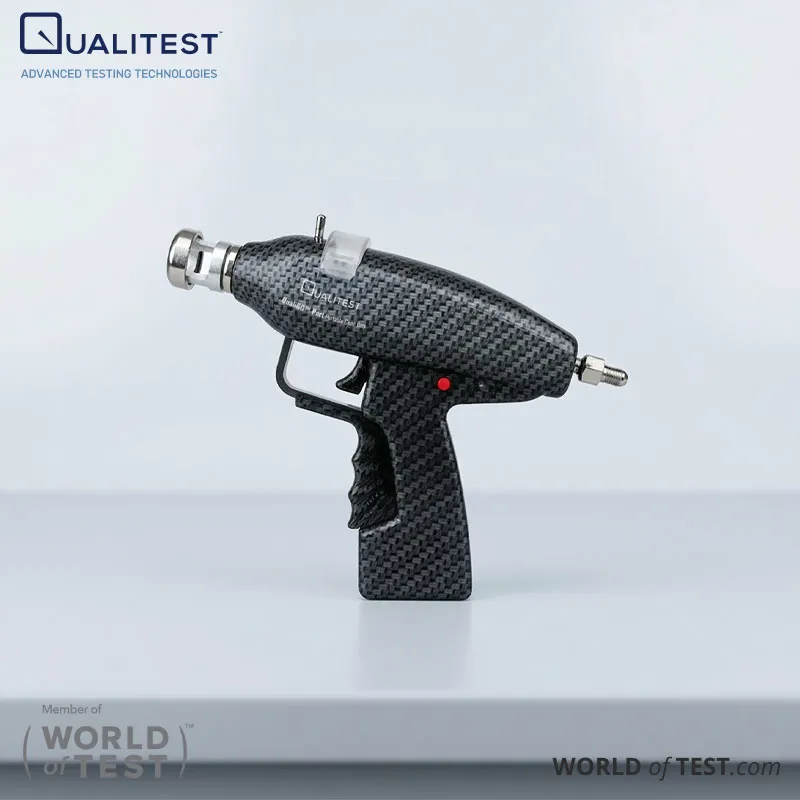

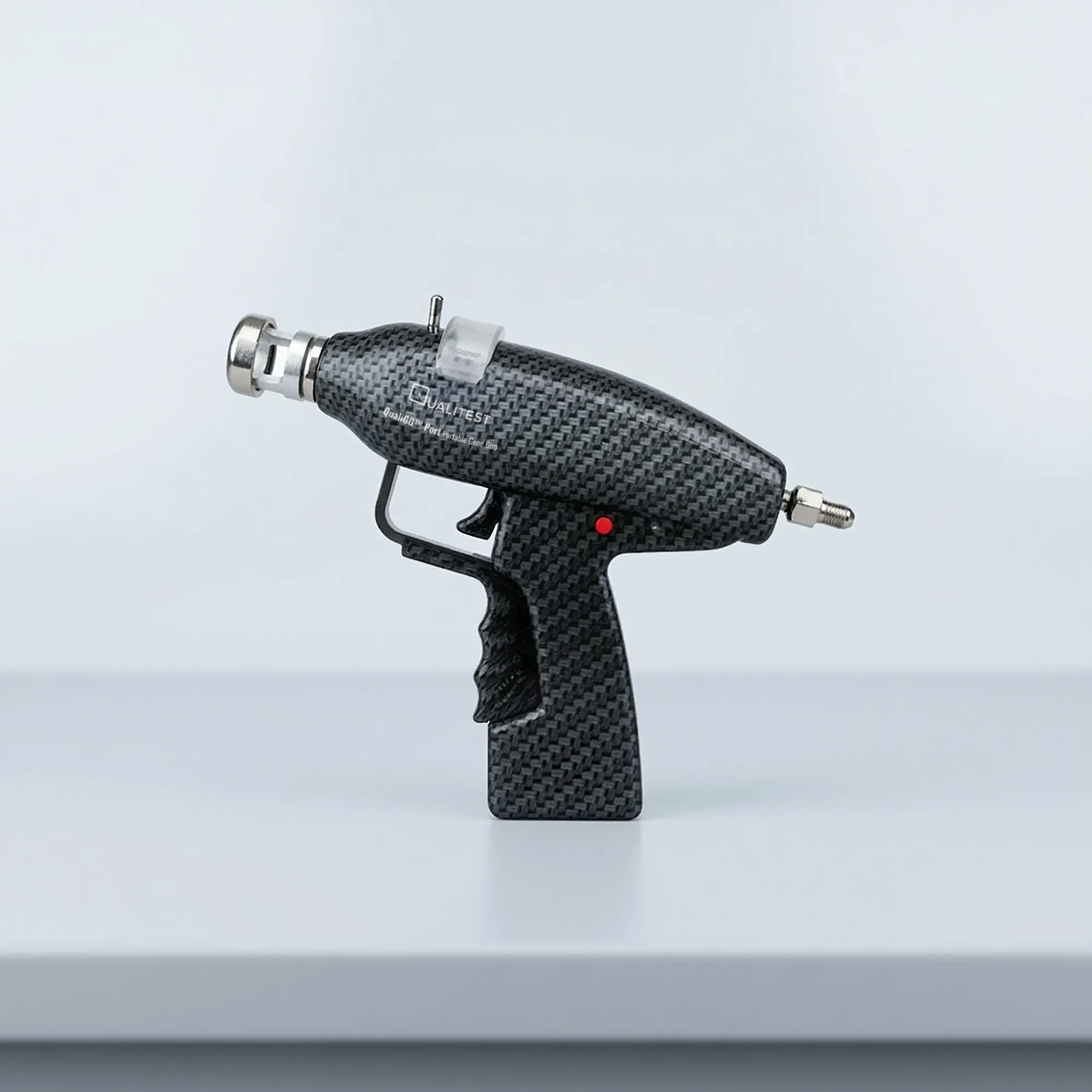

Portable Gene Gun – QualiGG™ Port

Gene Gun QualiGG™ Port is a handheld biolistic particle delivery system designed for direct, in situ gene transfer when speed, portability, and flexible targeting matter. It uses a regulated “cold” gas shock wave driven by helium or nitrogen to propel DNA-coated microcarriers into target tissue or cultured samples, helping reduce thermal effects compared with hot-gas approaches.

Working pressure is adjustable from 0.5–5 MPa, supporting controlled delivery across different sample types and thicknesses. The compact format is built for bench work, greenhouse trials, and animal room workflows where moving a larger gene transfer platform is impractical.

Portable Gene Gun – QualiGG™ Port Applications

  • Living plant leaves and plant cells (in situ transformation) Supports fast gene delivery directly to leaf tissue or plant cell targets for screening expression and optimizing conditions before scale-up. The small target area helps focus bombardment where you need results, including exploratory transformation studies.
  • Animal cells and cultured cell workflows (in vitro) Enables particle-based delivery into cultured samples when chemical or viral approaches are limited by cell type, timeline, or experimental constraints. Useful for rapid method development and comparative transfection studies.
  • Live tissue and organ targets (in vivo / ex vivo) Suitable for localized delivery to sites such as skin, muscle, and organ surfaces where direct targeting is required. This workflow is commonly used for proof-of-concept expression and localized delivery research.
Portable Gene Gun – QualiGG™ Port

Standards

  • IEC 61010-1 (Safety requirements for electrical equipment for measurement, control, and laboratory use).
  • CISPR 11 / EN 55011 (EMC emissions requirements for industrial, scientific, and medical equipment).

Portable Gene Gun – QualiGG™ Port Key Features

  • Handheld, portable platform for on-site and multi-room workflows without relocating a full benchtop system.
  • Adjustable working pressure (0.5–5 MPa) to tune delivery for different targets and experimental goals.
  • Helium or nitrogen drive gas with a “cold” shock-wave delivery approach intended to limit heat-related sample effects.
  • Small target area (2 cm²) for localized bombardment and controlled placement on the specimen.
  • Battery-powered operation (9V) for portability and high shot count between changes.
  • Microcarrier size options to match receptor type and penetration requirements.

Theory and Method

A Gene Gun delivers genetic material using microcarrier bombardment. DNA (or other payloads) is coated onto fine metal particles (commonly gold or tungsten), then loaded into a consumable delivery path. The instrument releases a controlled gas pulse that accelerates the particles toward the target over a short distance, creating penetration sufficient for intracellular delivery. Key variables include gas type, pressure, target distance, particle size, and shot count, which are tuned to balance expression efficiency and tissue impact.

Portable Gene Gun – QualiGG™ Port Technical Specification

SpecificationQualiGG™ Port
Experimental conditionsIn situ; In vitro; In vivo
Target area2 cm²
Operating pressure range0.5–5 MPa
Target typesAnimal cells; plant cells; living plant leaves; live animal skin; muscle; live animal organs
Power / battery9V battery; up to ~1000 shots (per source listing)
Drive gasHelium or nitrogen (helium preferred per listing)
Metal particle optionsØ0.8–1.5 μm; Ø1.5–3.0 μm
