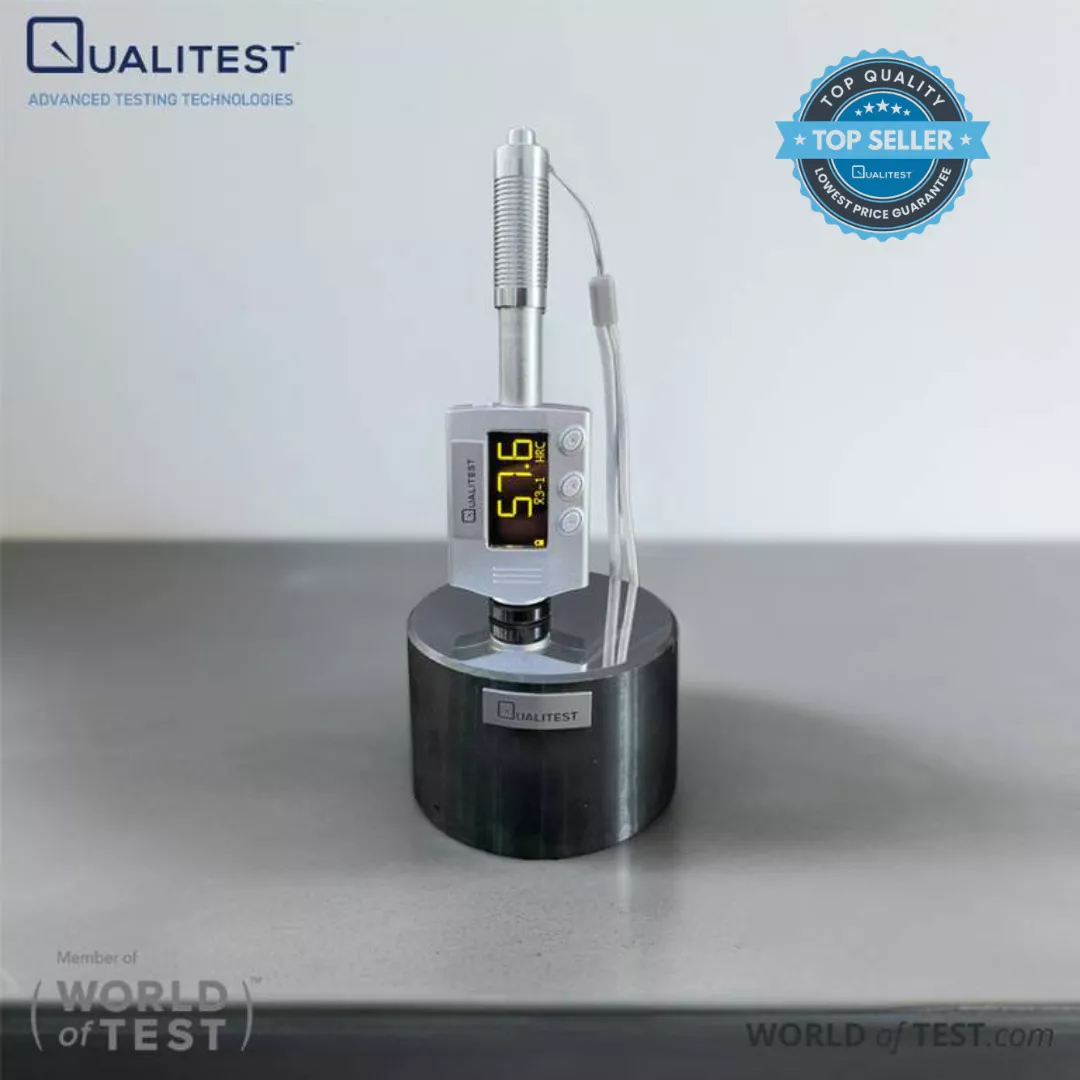

Portable Hardness Tester QualiTip Lite

Portable Hardness Tester QualiTip™ Lite

Buy Now

Parent Product

Portable Hardness Tester

Standards

Available Model:

Standard D Probe QualiTip™ Lite D
QualiTip™ Lite 2-IN-1 D/DL

The QualiTip™ Lite Integrated Hardness Tester leverages advanced micro-electronic technology in a pocket-sized design that combines a hardness impact probe, microprocessor, and data display. Key features include a statistical data display, enhanced storage capacity, USB interface for recharging and data transfer, and an OLED display for use in low-light areas.

Compliant with ASTM A956, the QualiTip™ Lite offers exceptional reliability across a broad measuring range. It automatically converts and displays measurements in Rockwell, Brinell, Leebs, Vickers, and Shore hardness values, and can also test metal strength.

Portable Hardness Tester QualiTip™ Lite 2-IN-1 D/DL

The QualiTip™ Lite 2 in 1 model Integrated Hardness Tester utilizes state-of-the-art micro-electronic technology in a uniquely designed pocket-sized instrument. This compact unit integrates a hardness impact probe, microprocessor, and data display. Key features include statistical data display, enlarged storage capacity, USB interface for recharging and data transfer to PC or printer, an OLED display for use in dark areas, and much more.

Conforming to ASTM A956, the QualiTip™ Lite 2 in 1 model delivers exceptional reliability across a wide measuring range, automatically converting and displaying measurements in Rockwell, Brinell, Leebs, Vickers, and Shore hardness values. Additionally, it is capable of testing metal strength.

Portable Hardness Tester QUALITIP LITE

Typical applications

Metal processing, Petro-chemical industry, QC Inspection, Metallurgy, Ship-building and Power industry etc.
Testing of large and/or heavy components, including installed machine parts and components
Testing of products during manufacture, especially of mass produced components
Testing of items and materials in warehouses or stores for material identification
Testing of materials and components located in difficult to access, or confined spaces

Portable Hardness Tester QualiTip™ Lite Technical Specifications

Model	QualiTip™ Lite D	QualiTip™ Lite 2-IN-1 D/DL
Measuring Accuracy	+/- 0.5%
Impact Device	Model D	Both D and DL impact bodies
Standards Compliance	ASTM A956, DIN50156, ISO 16859
Display	OLED
Hardness Measurement Values	HRC, HRB, HRA, HB, HV, HS, HLD
Automatic Calculations	Average and mean test values
Storage Capacity	3000
Casing	Durable aluminum
Software Interface	USB data port
Display Modes	Three interchangeable
Impact Direction	Any angle
Impact Energy	8 ft-lbs (11Nmm)
Test Tip	Tungsten Carbide
Dimensions	148 x 44 x 22 mm
Weight	110 g
Operating Temperature	-15°C to 50°C

Standard package

QualiTip™ Lite D main unit integrated with D impact body (QualiTip™ Lite 2-IN-1 D/DL model main unit integrated with D and DL impact bodies)
Calibration certificate
Standard test block
Software with USB cord
Battery charger
Support ring
Cleaning brush
Carrying case

Materials	HL	HRC	HRB	HB		HRA	HV	σb (N/mm²)
30D²	10D²
ST & CAST ST	300~960	20.0~68.0	38.4~99.5	80~647		60~85	80~940	118~3315
CWT STEEL	300~640	20.4~67.1	46.5~100.7				80~898	118~4590
STAINLESS	300~800	19.6~62.4		85~656			85~802	118~1725
GC IRON	360~650			90~334
NC IRON	400~660			131~367
CAST ALUM	174~560				20~190			129~2618
BRASS	200~550		13.5~95.3		40~173
BRONZES	300~700				60~290
COPPER	200~690				45~315
