Portable Liquid and Oil Particle Counter - QualiOPC™ 400H

Oil Particle Counter performance matters most when contamination data needs to be collected quickly, accurately, and outside the lab. The QualiOPC™ 400H is a Portable Oil Particle Counter designed for offline and online particle contamination analysis in oils and liquids using optical light-blocking detection. It is intended for hydraulic oil, lubricating oil, transformer insulating oil, turbine oil, gear oil, engine oil, aviation kerosene, water-based hydraulic fluids, organic liquids, and polymer solutions.

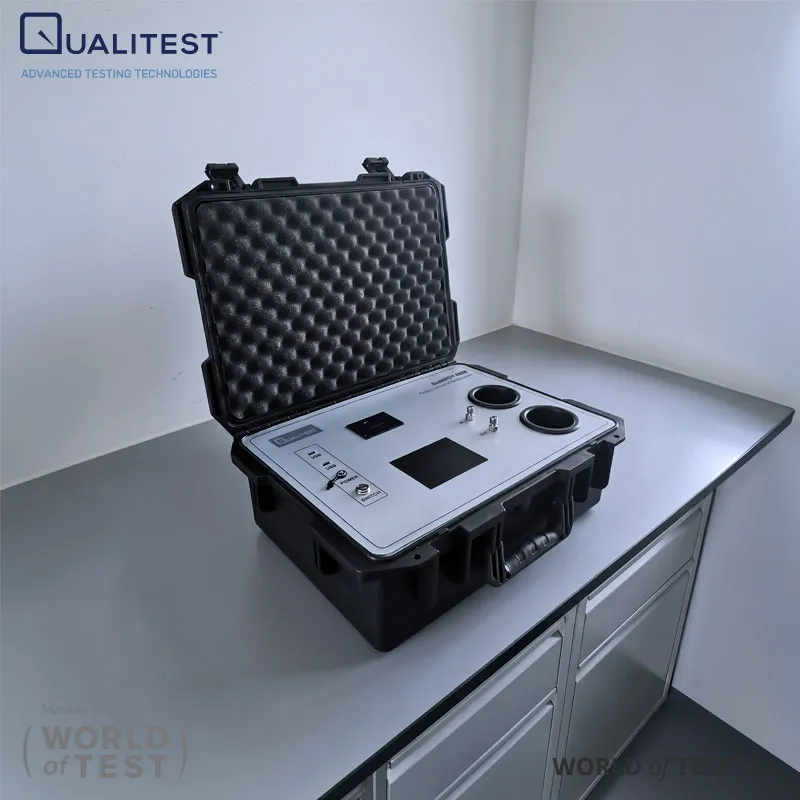

Built for field and laboratory use, this portable system combines a semiconductor laser, 32 configurable detection channels, onboard data handling, and battery-supported operation in a rugged carry-case format. The QualiOPC™ 400H for military, aerospace, electrical power, and transportation applications where fluid cleanliness monitoring supports maintenance planning and equipment reliability.

The QualiOPC™ 400H is a portable Oil Particle Counter developed for contamination analysis of liquid samples in both field and lab settings. It measures the size and concentration of suspended solid particles in service fluids and helps users evaluate fluid cleanliness, detect abnormal contamination, and support preventive maintenance programs. This instrument is support for both offline and online operation, making it suitable for spot checks, maintenance verification, and routine laboratory quality control.

This model is built around the optical light-blocking method and uses a semiconductor laser with a high-performance particle counting sensor. An industrial control platform, multiple calibration curve options, integrated data output, and portable enclosure design for easier transport and on-site testing. Built-in lithium battery support and optional online measurement accessories for higher-pressure or higher-viscosity workflows.

Portable Liquid and Oil Particle Counter - QualiOPC™ 400H Applications

Portable Liquid and Oil Particle Counter - QualiOPC™ 400H
  • Hydraulic and Lubricating Oil Monitoring: the QualiOPC™ 400H is suitable for particle contamination analysis in hydraulic oil, lubricating oil, turbine oil, gear oil, and engine oil. This supports maintenance teams that need to monitor fluid cleanliness, identify abnormal wear-related contamination, and manage service intervals more effectively.
  • Transformer and Insulating Oil Analysis: this makes the instrument useful for utilities and maintenance teams that need portable contamination checks for insulating fluids used in electrical power systems.
  • Aerospace, Military, and Transportation Use: typical uses include contamination analysis of aviation hydraulic fluids, turbine oils, fuels, and mobile equipment lubricants where particulate cleanliness can affect reliability and service life.
  • Water-Containing Oil Monitoring: the QualiOPC™ 400H also includes oil water-content measurement capability, with a listed measuring range of 10 ppm to 500 ppm. That makes the platform relevant for users who want both portable particle counting and basic water-content assessment in oil samples.
Portable Liquid and Oil Particle Counter

Standards

  • ISO 4402 – Hydraulic fluid particle counting and calibration reference
  • ISO 11171 – Calibration and verification reference for automatic particle counters
  • ISO 4406 – Fluid cleanliness coding for hydraulic and lubricating systems
  • NAS 1638 – Aerospace fluid contamination classification
  • SAE AS4059E / SAE AS4059F – Aerospace fluid cleanliness classification systems
  • ROCT 17216 – Contamination classification standard
  • JTS-005
  • SAE 749D
  • AETF1A

Portable Liquid and Oil Particle Counter - QualiOPC™ 400H Key Features

  • Uses the light-blocking detection principle for particle size and concentration measurement in oils and liquids.
  • Designed for offline and online operation, allowing both field checks and in-line contamination monitoring.
  • Measures contamination in hydraulic oil, lubricating oil, transformer oil, turbine oil, gear oil, engine oil, aviation kerosene, water-based hydraulic fluids, organic liquids, and polymer solutions.
  • Uses a semiconductor laser and a high-performance large-particle counting sensor.
  • Provides 32 detection channels with user-defined particle size settings. Fine channel customization for flexible particle-size analysis.
  • Supports multiple calibration curves, including ACFTD, ISOMTD, latex sphere, and GOST-type calibration options.
  • Built around an industrial Windows-based control system for instrument control, calculation, and data handling.
  • Includes data storage and output options such as built-in printing, software database storage, USB storage, and computer connection capability.
  • Portable enclosure with embedded structural design for easier transport and field deployment.
  • Optional accessories support high-pressure online use, high-viscosity sample handling, and sample degassing workflows.
  • Built-in lithium battery support for portable operation.
  • The QualiOPC™ 400H also includes oil water-content measurement capability in the 10 ppm to 500 ppm range.

Theory and Method

The QualiOPC™ 400H uses the optical light-blocking method, also called the shading or photoresist method. As particles pass through the sensing zone, they interrupt the laser beam, and the instrument converts those signal changes into particle size and particle count data. This method is widely used for liquid contamination analysis because it allows direct measurement of suspended solid particles in oils and related fluids.

The system supports both offline bottle sampling and online measurement. For online workflows, a normal pressure range of 0.1 to 0.6 MPa, with an optional pressure-reducing device for higher-pressure measurement up to 40 MPa. Optional pressure or vacuum sample chambers for higher-viscosity samples and sample degassing support.

Portable Liquid and Oil Particle Counter - QualiOPC™ 400H Technical Specification

ParameterQualiOPC™ 400H
Product NamePortable Liquid and Oil Particle Counter
ModelQualiOPC™ 400H
Detection PrincipleOptical light-blocking / shading method
Light SourceSemiconductor laser
Detection ModeOffline or online
Online Viscosity Range< 100 cSt, optional positive-pressure sampler for higher viscosities
Online Pressure Range0.1–0.6 MPa, optional up to 40 MPa with pressure-reducing device
Sample Temperature0°C to 80°C
Particle Size Range1 μm to 500 μm
Sensitivity1 μm (ISO 4402) or 4 μm(c) (ISO 11171 or equivalent reference)
Detection Channels32 channels, configurable
Sample Volume10–100 mL
Sample Volume Relative ErrorBetter than ±2%
Detection Speed5–60 mL/min, default 25 mL/min
Cleaning Speed5–60 mL/min
ResolutionBetter than 10%
Coincidence Error Limit12,000–40,000 particles/mL
Counting RepeatabilityRSD < 2%
Particle Count Relative Error±10%
Oil Water-Content Measuring Range10 ppm–500 ppm
Water-Content Error±5 ppm from 10–100 ppm; better than ±10% from 100–500 ppm
Operating Temperature-20°C to 60°C
Storage Temperature-30°C to 80°C
Voltage110–240 V, 50/60 Hz
BatteryBuilt-in lithium battery
Size380 × 310 × 205 mm
Weight8.6 kg
