QualiTip II-Plus Portable Hardness Tester
QualiTip II-Plus Portable Hardness Tester

QualiTip II-Plus Portable Hardness Tester – NEW Rebound-type Model by Qualitest
Parent Product
Portable Hardness Tester
Standards
ASTM A956

The QualiTip II-Plus portable hardness tester stands as an advanced Leeb's rebound-type digital portable hardness tester for metals, offering exceptional accuracy, a wide measuring range, and effortless operation.

This device is your go-to solution for assessing the hardness of all metal types, making it particularly well-suited for on-site testing of large structures and assembled components. Leeb-type rebound hardness testers are trusted and widely used in manufacturing plants, testing laboratories, and engineering companies.



QualiTip II-Plus Portable Hardness Tester

The QualiTip II-Plus portable hardness tester stands as an advanced Leeb's rebound-type digital portable hardness tester for metals, offering exceptional accuracy, a wide measuring range, and effortless operation.

This device is your go-to solution for assessing the hardness of all metal types, making it particularly well-suited for on-site testing of large structures and assembled components. Leeb's-type rebound hardness testers are trusted and widely used in manufacturing plants, testing laboratories, and engineering companies.

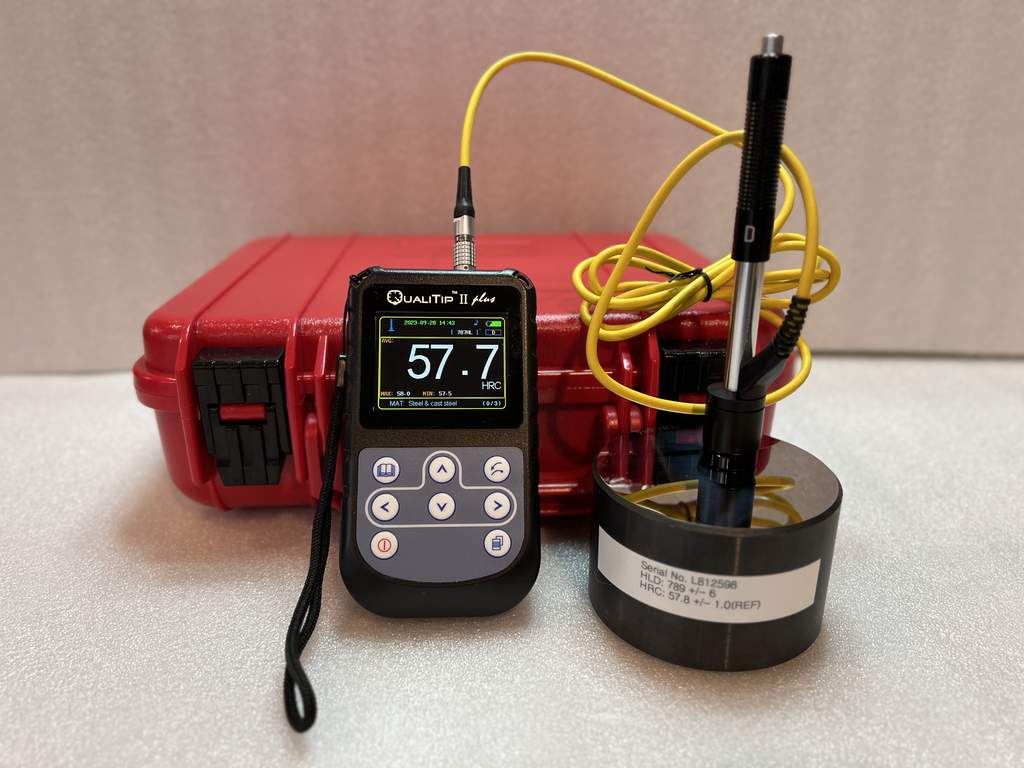

QualiTip II-Plus Portable Hardness Tester



Standard Delivery Includes:

  • QualiTip II Plus Main Unit.
  • Standard D Impact Device.
  • Calibration Certificate.
  • LD Test Block.
  • Software with USB Cable.
  • Battery Charger.
  • Instruction Manual.
  • Carrying Case.

Elevate your hardness testing capabilities with the QualiTip II-Plus Portable Hardness Tester, an advanced and reliable tool that guarantees precision, convenience, and compliance with industry standards. Get the results you need, wherever you are.

QualiTip II-Plus Portable Hardness Tester applications



QualiTip II-Plus Portable Hardness Tester advantages

Key Features of QualiTip II-Plus Portable Hardness Tester:

  • Menu Operation: User-friendly menu navigation for intuitive operation.
  • Large OLED Display: Clear and vivid display for easy reading of results.
  • High Accuracy: Ensures precision in hardness measurements.
  • Automatic Mean Value Display: Instantly view the average hardness values.
  • Universal Impact Devices: Accommodates various impact devices: D, DC, D+15, G, C, DL, E; recalibration is not required.
  • Multiple Hardness Scales: Displays hardness values in HL, HRC, HRB, HB, HV, and HS.
  • Probe Impact Direction: Test at any angle, ensuring flexibility in usage.
  • USB Connectivity: Included software and USB cable for data transfer.
  • ASTM A956 Compliance: Conforms to ASTM A956 standards, assuring quality and reliability.

Technical Specifications of QualiTip II-Plus Portable Hardness Tester:

Hardness ScaleHL, HRC, HRB, HB, HV, and HS convertible
Impact DevicesD (standard), DC, D+15, C, G, DL (optional).
Accuracy±0.5%.
DisplayOLED display.
Statistics FunctionAverage, Max, Min value calculation, limits setting, and alarms.
Data Storage with OutputIncludes data view software and a USB cable.
Max Hardness Value999HV (Impact devices D/DC/DL/D+15/C), 68HRC (Impact devices D/DC/DL/D+15/C), 680HB (Impact device G).
Minimum Sample Weight2kg on solid support / 0.8kg with couplant paste.
Minimum Thickness Coupled6mm (Impact devices D/DC/DL/D+15), 10mm (Impact device G).
Battery IndicatorProvides a low battery indication.
Power Supply2 AA batteries.
Operating Temperature-20°C to 40°C.
Dimensions133 x 75 x 29 (mm) | 5.2362 x 2.9528 x 1.1417 (inches)
Weight260g.
