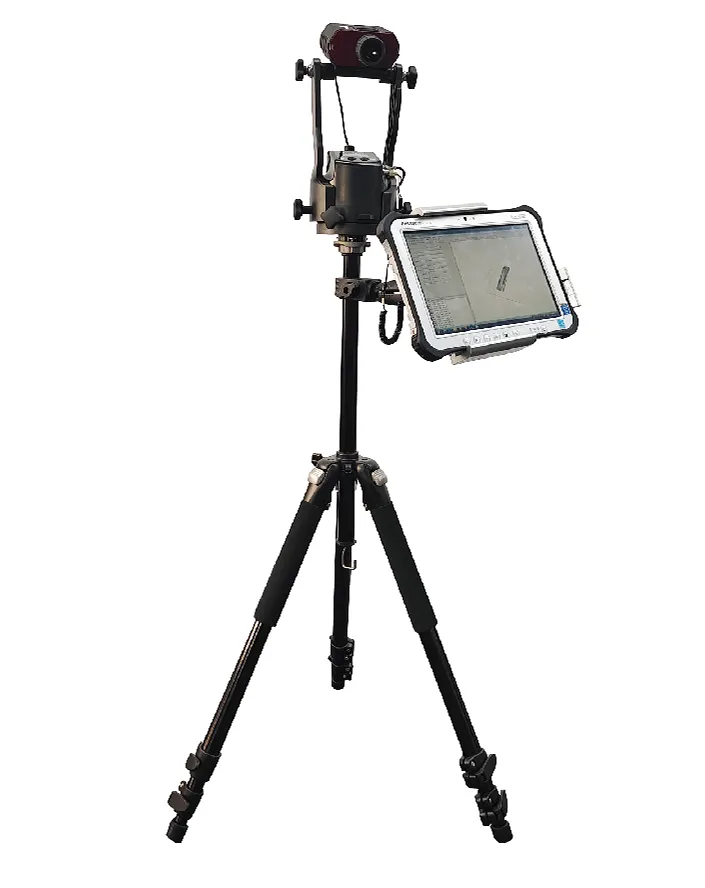

Portable Stockpile-inventorying Equipment & Measurement System – QualiPSIE™ 300

QualiPSIE™ 300 is designed to measure the volume of coal and other material stockpiles across industries such as power generation, coal processing, petrochemicals, and metallurgy. It is also ideal for calculating excavation, backfill, and earth removal volumes in highway and railway construction projects.

Portable Stockpile-inventorying Equipment & Measurement System – QualiPSIE-300

Portable Stockpile-inventorying Equipment & Measurement System – QualiPSIE™ 300 Features

  • Lightweight and battery-powered, the device weighs only 3.5 kg, making it easy to carry and operate. No manual surface shaping is required — one operator can complete the full measurement of a coal pile within an hour.
  • The system features a user-friendly software interface with guided menus and runs seamlessly in the Windows environment for efficient data processing.
  • Using advanced laser and electronic technology, it quickly captures surface contours of materials, stockpiles, and terrain, calculates volume, and generates 3D visualizations from any angle.
  • All key components, including the laser rangefinder, electronic compass, and handheld computer, are built to high standards for reliable and precise performance.

Portable Stockpile-inventorying Equipment & Measurement System – QualiPSIE™ 300 Technical Specifications

ToleranceVolume < 1000m³, ≤1.5%; Volume ≥1000m³, ≤1.0%
Total Weight3.5 kg (Weight will vary slightly with different handhelds or stands)
Working Temperature-30°C to 55°C (laser rangefinder -30°C to 60°C; military laptop -30°C to 55°C)
Working TimeLaser rangefinder 4 hours/single battery; Military laptop 3 hours/one charge
Protection LevelIP56 dustproof and waterproof , anti-drop laptop
Laser ranging componentMaximum ranging 1900 meters (more than 10% reflectivity); Measurement accuracy 4cm (typical target < 400m); Weight 500g; Inclination angle ±85° Accuracy :±0.1°; Horizontal Angle 0 ~ 360° Accuracy ±0.01°
