Portable Thermal Camera (Advanced)

Portable Thermal Camera (Advanced)
Request A Quote
Parent Product
Thermal Camera - Thermal Imaging Camera
View PDF

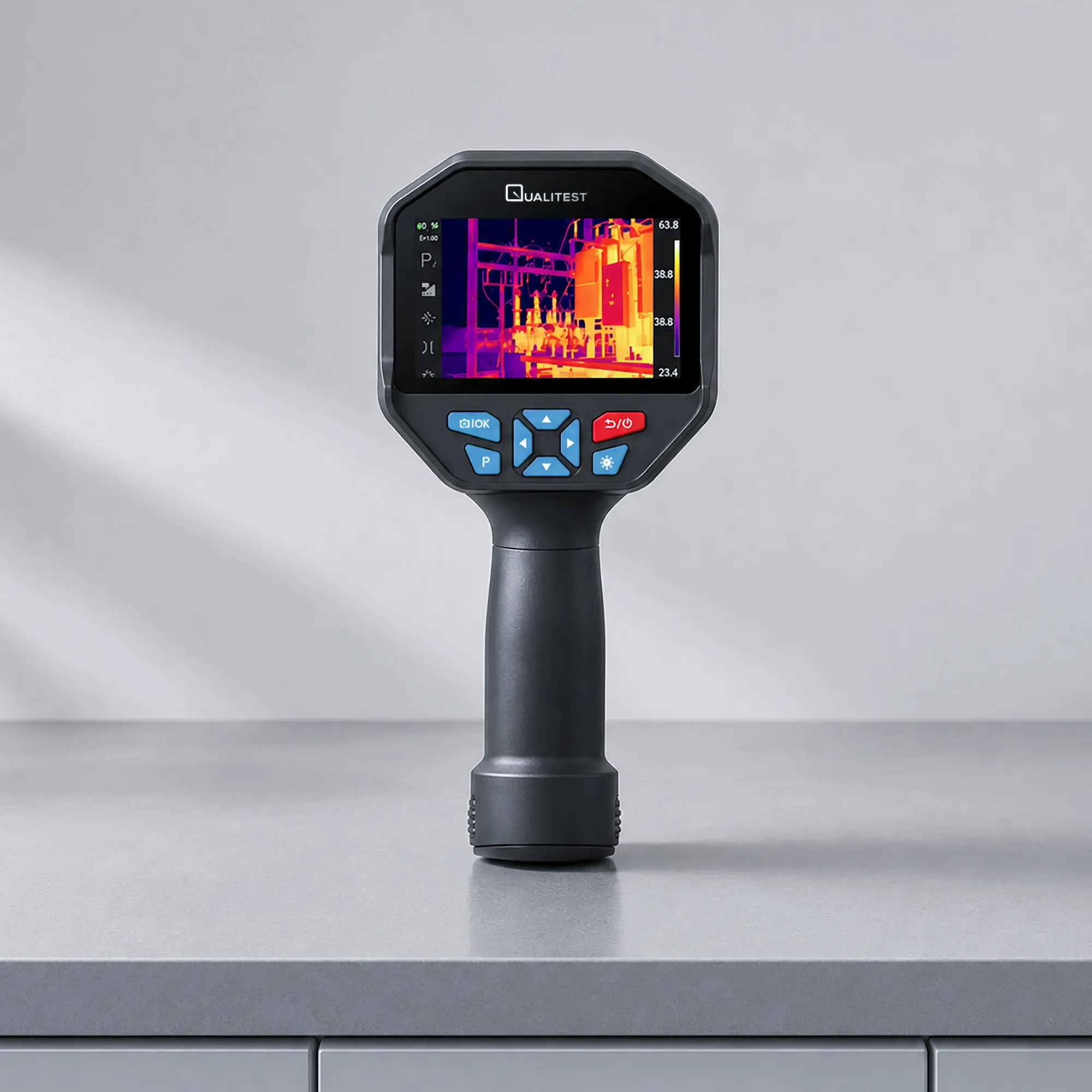

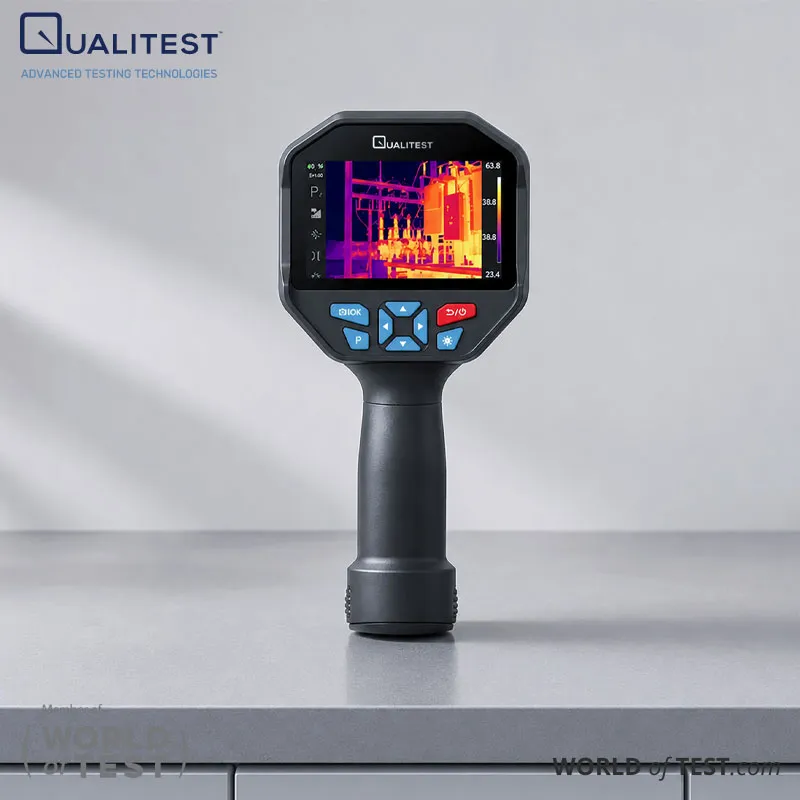

Portable Thermal Camera (Advanced) - QualiTC™ 64

Portable Thermal Camera (Advanced) - QualiTC™ 64 is a high resolution industrial thermal camera built for power grid crews, plant technicians, and petrochemical inspectors. The device pairs a 640×480 thermal detector with an 8-megapixel visible light camera on a 4.3-inch sunlight-readable industrial touchscreen with adjustable brightness. A measurement range of -20°C to 1200°C (-4°F to 2192°F) covers routine electrical checks and demanding high-temperature process work in the same device. TisoView image processing applies super-resolution and detail enhancement to keep the display sharp.

The QualiTC™ 64 pairs a 40-meter laser rangefinder with laser point temperature measurement, so an operator can confirm target distance and read a precise spot temperature without stepping closer to a hazard. Voice annotation attaches spoken notes to a captured photo or video. The included PC software reads full-frame thermal data and full-temperature video for a detailed report after the inspection. WiFi, Bluetooth, and HDMI outputs move images to a phone, PC, or external display.

The QualiTC™ 64 runs on a detachable 5000 mAh lithium battery that also charges directly from a USB adapter, so a spare pack tops up without a separate dock. An IP54 rating protects the camera from dust and splashing water on active job sites. Storage starts at 32GB of built-in memory and expands to 256GB with a microSD card, and an operating range of -10°C to 60°C suits most field conditions. Gas sensors can be added for combined thermal and gas detection.

Portable Thermal Camera (Advanced) - QualiTC™ 64 Applications

The QualiTC™ 64 targets industrial and utility users who need high-resolution thermal detail, extreme-temperature accuracy, and geolocated data in a single handheld device.

  • Electric Power and Grid Inspection: assesses transmission lines, substations, and power equipment for thermal signs of an impending fault
  • Machinery and Equipment Diagnosis: pinpoints overheating in motors, switchgear, and industrial machinery during routine maintenance rounds
  • Construction and Building Diagnostics: detects moisture intrusion, air leakage, and insulation defects in walls, roofs, and building envelopes
  • Petrochemical Inspection: monitors oil pipeline condition, material interfaces, heat leakage, and insulation structure on process equipment
  • Firefighting and Fire Prevention: supports forest fire and hot-spot detection, spontaneous combustion monitoring, and electrical fire safety checks
  • Research, Development, and Preventive Maintenance: documents thermal behavior of components, assemblies, and processes across automation and R&D programs
Portable Thermal Camera (Advanced)

Portable Thermal Camera (Advanced) - QualiTC™ 64 Key Features

The QualiTC™ 64 pairs a high-resolution thermal detector with connectivity, battery, and analysis features built for demanding industrial programs.

  • 640×480 Thermal Detector with 8-Megapixel Visible Light: delivers sharper thermal and visual detail than lower-resolution models for confident fault identification
  • TisoView Image Enhancement: applies super-resolution, detail enhancement, saturation control, and gain optimization to sharpen the displayed image
  • -20°C to 1200°C Measurement Range: covers high-temperature industrial and process targets beyond the reach of consumer-grade cameras
  • 40-Meter Laser Rangefinder with Laser Point Measurement: confirms target distance and reads a precise spot temperature from a safe standoff
  • Detachable, USB-Chargeable 5000 mAh Battery: swaps in the field and tops up directly from a USB adapter without a separate charging dock
  • IP54 Dust and Water Protection: withstands dusty and splashing job-site conditions without a separate case
  • Full-Frame Radiometric Video: records temperature data for every pixel in every frame, not only in still photos
  • Voice Annotation: attaches a spoken note directly to a captured photo or video for faster reporting
  • 4.3-Inch Sunlight-Readable Touchscreen: stays clear and operable in direct outdoor light with adjustable brightness
  • 32GB Storage, Expandable to 256GB: holds large full-frame temperature video files alongside standard photos
  • WiFi, Bluetooth, USB, and HDMI: connects to a phone app, PC, or external display for review and reporting

Theory and Method

Every surface above absolute zero emits infrared radiation in proportion to its temperature, and the QualiTC™ 64 captures this energy in the 8 to 14 micrometer long-wave infrared band using a 640×480 detector array. Each detector element changes electrical resistance as it absorbs infrared radiation, and the onboard processor converts that resistance change into a temperature value for every pixel. TisoView then applies super-resolution, digital detail enhancement, saturation control, and gain optimization to sharpen the resulting image.

Reaching a 1200°C upper limit takes more than a wide detector range. The camera applies measurement correction for target distance, atmospheric conditions, ambient temperature and humidity, and visibility, all of which affect how much infrared energy actually reaches the sensor from a hot, distant target. The built-in 40-meter laser rangefinder measures true distance to the target and feeds that value into the correction calculation instead of relying on an operator's estimate.

Point, line, and frame temperature measurement modes let the operator sample a single spot, a profile along a weld or seam, or an entire region for its highest, lowest, and center-point readings. Because the camera can record full-frame radiometric video, every pixel in every frame carries its own temperature value, so a reviewer can pull a reading from any point in a recorded sequence rather than only from a still photo.

Portable Thermal Camera (Advanced) - QualiTC™ 64 Technical Specifications

ParameterSpecification
IR Resolution640 × 480
Lens25 mm F/1.0 (standard); 19 mm, 35 mm (optional)
Wavelength8 to 14 μm
Frame Rate30 Hz
NETD≤45 mK @ 25°C
Zoom1x to 8x, continuous digital zoom
FocusManual
Measurement Range-20°C to 1200°C (-4°F to 2192°F)
Accuracy±2°C or ±2% of reading, whichever is greater
Temperature Measurement ModesFull-screen hotspot, cold spot, and center point temperature measurement, plus regional temperature measurement
Measuring Mode1 global and 8 local measurement zones (points, line segments, and rectangles), 1 center point, and temperature monitoring by measurement area
AlarmCustom high, low, and interval temperature alarm thresholds with on-screen and audible alerts
Visible Light Resolution8 megapixels (3264 × 2448)
Image OptimizationTisoView image enhancement set
Screen Size4.3 inch
Screen TypeIndustrial IPS touchscreen, sunlight readable, adjustable brightness, capacitive touch
Image ModesInfrared, visible light, edge (outline) fusion, layer fusion, picture-in-picture
InterfaceUSB (data and charging), HDMI
WirelessWiFi (mobile app image transmission), Bluetooth
Laser PointerSupported
Laser Distance Measurement40 meters
LED LightSupported
BuzzerSupported
GPSSupported
4GSupported
Electronic CompassSupported
Gas SensorsCustomizable according to demand
Voice AnnotationSupported
BatteryDetachable, rechargeable lithium battery, 5000 mAh, charges directly via USB adapter
Image AnalysisFull-frame thermal image and full-temperature video analysis supported, with detailed report generation
Storage Capacity32GB built-in memory, expandable to 256GB via microSD card
RecordingPhotograph, video, screen recording, and screenshot (standard and full-frame temperature video)
Ingress ProtectionIP54 (dust and splash resistant)
Operating Temperature-10°C to 60°C
Storage Temperature-40°C to 85°C
