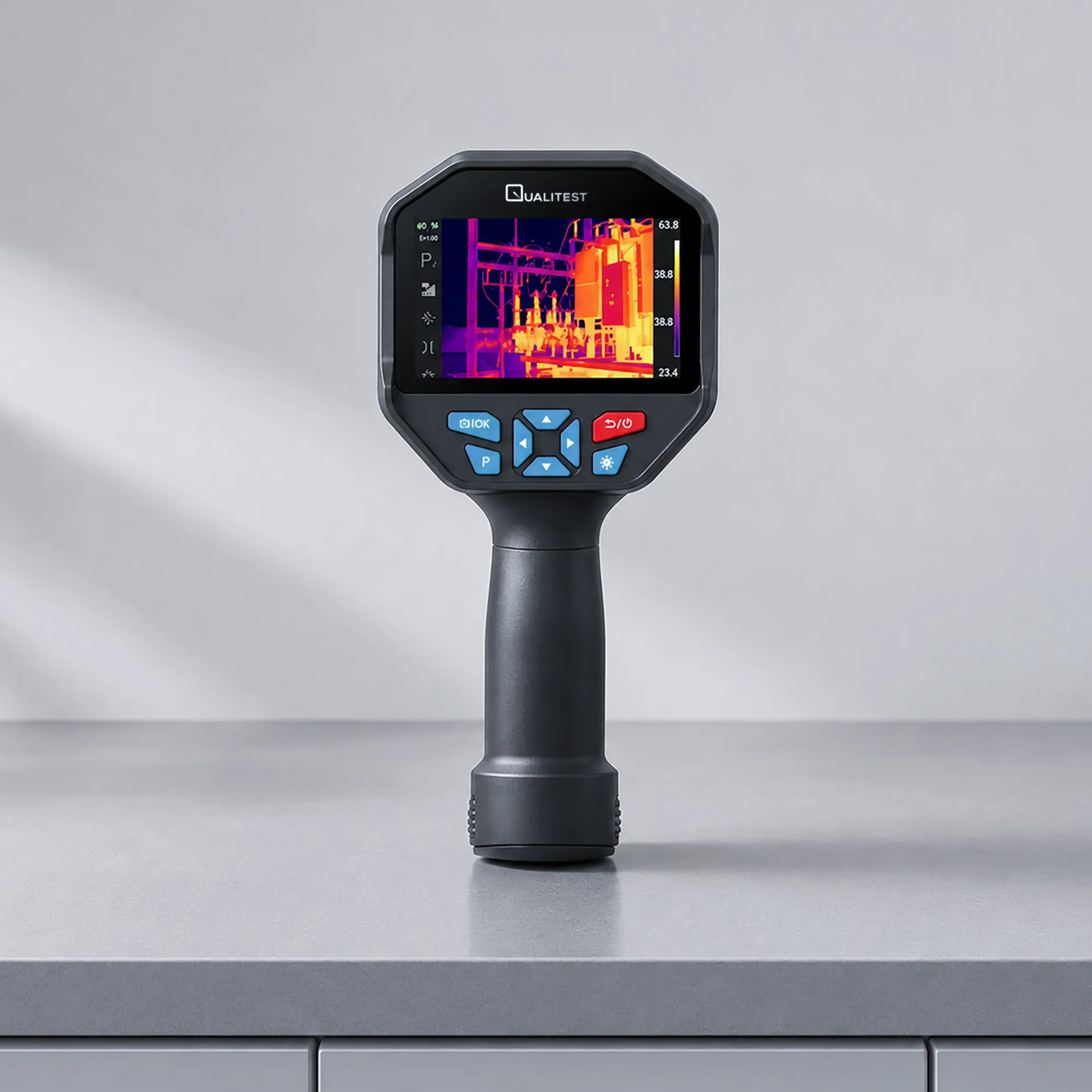

Portable Thermal Camera (Professional) - QualiTC™ 38

Portable Thermal Camera (Professional) - QualiTC™ 38 is an industrial thermal imaging camera built for power utility crews, petrochemical technicians, and firefighting teams who need accurate high-temperature readings. The device pairs a 384×288 thermal detector with an 8-megapixel visible light camera on a 4.3-inch sunlight-readable touchscreen, protected by 0.5mm explosion-proof glass. A measurement range of -20°C to 1200°C (-4°F to 2192°F) covers everything from routine electrical checks to high-temperature process monitoring. TisoView image processing sharpens detail through super-resolution and detail enhancement algorithms.

The QualiTC™ 38 adds a laser rangefinder accurate to 40 meters, GPS positioning, 4G connectivity, and an electronic compass, letting field crews log exactly where and how far from a target each reading was taken. Voice annotation attaches spoken notes to a captured photo or video. The dedicated analysis software reads full-frame thermal data and full-temperature radiometric video after the inspection. WiFi and Bluetooth connect the camera to a companion app for real-time image transmission to a phone or tablet.

The QualiTC™ 38 runs on a removable 5000 mAh lithium battery rated for about five hours of continuous use, with a spare pack ready for a full shift of work. Storage starts at 32GB of built-in EMMC and expands to 256GB with a microSD card for large temperature video files. An operating range of -10°C to 60°C and a storage range of -40°C to 85°C suit demanding field and transport conditions. Gas sensors can be added for combined thermal and gas detection.

Portable Thermal Camera (Professional) - QualiTC™ 38 Applications

The QualiTC™ 38 targets professional and industrial users who need high-temperature accuracy, geolocated data, and radiometric video in a single handheld device.

  • Electric Power Inspection: assesses transmission lines, substations, and power equipment for thermal signs of an impending fault
  • Electrical and Mechanical Fault Diagnosis: pinpoints overheating in motors, switchgear, and industrial machinery during routine maintenance rounds
  • Construction and Building Diagnostics: detects moisture intrusion, air leakage, and insulation defects in walls, roofs, and building envelopes
  • Petrochemical Inspection: monitors oil pipeline condition, material interfaces, heat leakage, and insulation structure on process equipment
  • Firefighting and Fire Prevention: supports forest fire and hot-spot detection, spontaneous combustion monitoring, and electrical fire safety checks
  • Medical and Research Use: measures human body surface temperature and temperature field distribution for clinical and research applications
  • Research, Development, and Preventive Maintenance: documents thermal behavior of components, assemblies, and processes across automation and R&D programs
Portable Thermal Camera (Professional)

Portable Thermal Camera (Professional) - QualiTC™ 38 Key Features

The QualiTC™ 38 pairs industrial-grade thermal imaging with geolocation, connectivity, and analysis tools built for professional inspection programs.

Portable Thermal Camera (Professional)

Combine Infrared and Digital Camera

384x288 advanced infrared thermal imaging resolution combined with 8 megapixels visible light produces the most vibrant, easiest-to-interpret images

  • 384×288 Thermal Detector with 8-Megapixel Visible Light: delivers clear thermal and visual detail for confident fault identification
Portable Thermal Camera (Professional)

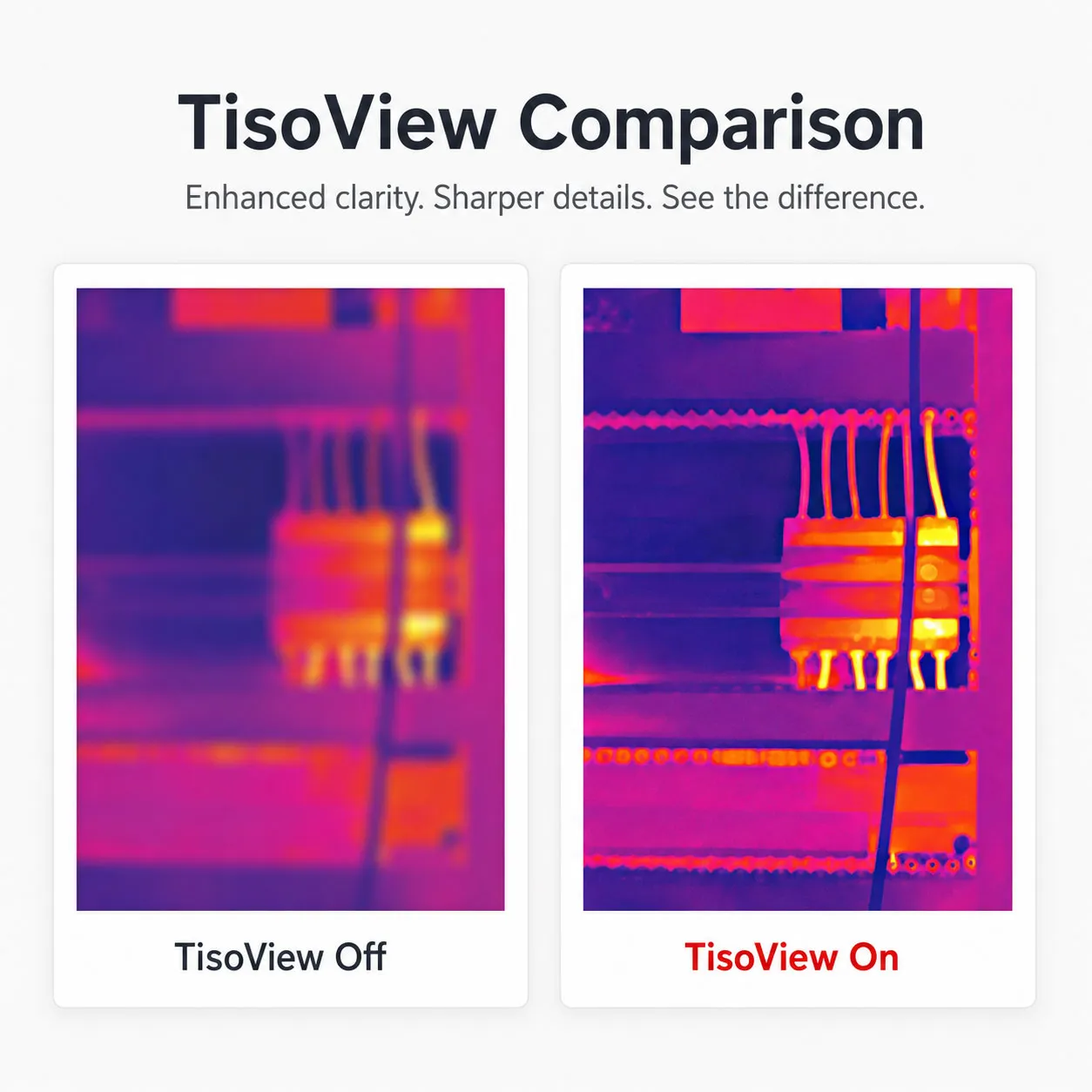

Unique TisoView Technology

By leveraging DYT's proprietary TisoView™ imaging technology, the system implements advanced algorithms including super-resolution, DDE enhancement, saturation control, and gain optimization to deliver exceptionally vivid and delicate images

  • TisoView Image Enhancement: applies super-resolution, detail enhancement, and gain adjustment to sharpen the displayed image
  • -20°C to 1200°C Measurement Range: covers high-temperature industrial and process targets beyond the reach of consumer-grade cameras
  • 40-Meter Laser Rangefinder: measures true target distance for more accurate temperature correction and safer standoff inspection
  • GPS and 4G Connectivity: geotags readings and keeps the camera connected in the field without a separate hotspot
  • Full-Frame Radiometric Video: records temperature data for every pixel in every frame, not only in still photos
  • Voice Annotation: attaches a spoken note directly to a captured photo or video for faster reporting
  • 4.3-Inch Explosion-Proof Touchscreen: stays readable in direct sunlight and protected behind 0.5mm safety glass
  • Removable 5000 mAh Battery: swaps in the field for extended shifts without downtime for charging
  • 32GB Storage, Expandable to 256GB: holds large full-frame temperature video files alongside standard photos
  • WiFi, Bluetooth, USB Type-C, and HDMI: connects to a phone app, PC, or external display for review and reporting

Theory and Method

Every surface above absolute zero emits infrared radiation in proportion to its temperature, and the QualiTC™ 38 captures this energy in the 8 to 14 micrometer long-wave infrared band using a 384×288 detector array. Each detector element changes electrical resistance as it absorbs infrared radiation, and the onboard processor converts that resistance change into a temperature value for every pixel. The TisoView engine then applies super-resolution and digital detail enhancement to sharpen the resulting image before the operator ever adjusts a setting.

Reaching a 1200°C upper limit requires more than a wider detector range. The camera applies measurement correction for target distance, atmospheric conditions, ambient temperature and humidity, and visibility, all of which affect how much infrared energy actually reaches the sensor from a hot, distant target. The built-in laser rangefinder measures the true distance to the target, feeding that value into the correction calculation instead of relying on an operator's estimate.

Point, line, and frame temperature measurement modes let the operator sample a single spot, a profile along a weld or seam, or an entire region for its highest, lowest, and center-point readings. Because the camera can record full-frame radiometric video, every pixel in every frame carries its own temperature value, so a reviewer can extract a reading from any point in a recorded sequence rather than only from a still photo.

Portable Thermal Camera (Professional) - QualiTC™ 38 Technical Specifications

ParameterSpecification
IR Resolution384 × 288
Lens15 mm F/1.0 (standard); 19 mm, 25 mm (optional)
Wavelength8 to 14 μm
Frame Rate30 Hz
NETD≤45 mK @ 25°C
Zoom1x to 8x
FocusManual
Measurement Range-20°C to 1200°C (-4°F to 2192°F)
Accuracy±2°C or ±2% of reading, whichever is greater
Temperature Measurement ModesFull-screen hotspot, cold spot, and center point temperature measurement, plus regional temperature measurement
Measuring Mode1 global and 8 local measurement zones (points, line segments, and rectangles), 1 center point, and temperature monitoring by measurement area
AlarmCustom high, low, and interval temperature alarm thresholds with on-screen and audible alerts
Visible Light Resolution8 megapixels (3264 × 2448)
Visible Light Field of View90° (diagonal)
Image OptimizationTisoView image enhancement set
Screen Size4.3 inch
Screen TypeIndustrial touchscreen, sunlight readable, capacitive touch, 0.5mm explosion-proof glass
Image ModesInfrared, visible light, edge (outline) fusion, layer fusion, picture-in-picture
Color PalettesIron Red, Rainbow, Rainbow High Contrast, White Hot, Black Hot, Arctic, Lava, Red Hot
Language SupportEnglish, French, Spanish, Portuguese, German, Russian, Arabic, Japanese, Korean, Chinese (Simplified), Chinese (Traditional)
Measurement CorrectionTarget distance, atmospheric correction, ambient temperature and humidity, visibility
InterfaceUSB Type-C, HDMI
WirelessWiFi (mobile app image transmission), Bluetooth
Laser PointerSupported
Laser Distance Measurement40 meters
LED LightSupported
BuzzerSupported
GPSSupported
4GSupported
Electronic CompassSupported
Gas SensorsCustomizable according to demand
Voice AnnotationSupported
BatteryRemovable lithium battery, 5000 mAh
Working HoursApproximately 5 hours on a full charge
Image AnalysisFull-frame thermal image and full-temperature video analysis supported
Storage Capacity32GB built-in EMMC, expandable to 256GB via microSD card
RecordingPhotograph, screen recording, and video (standard and full-frame temperature video)
Radiation Flow FileSupported (video with temperature data for every frame)
Photo IntervalSupported
Operating Temperature-10°C to 60°C
Storage Temperature-40°C to 85°C
