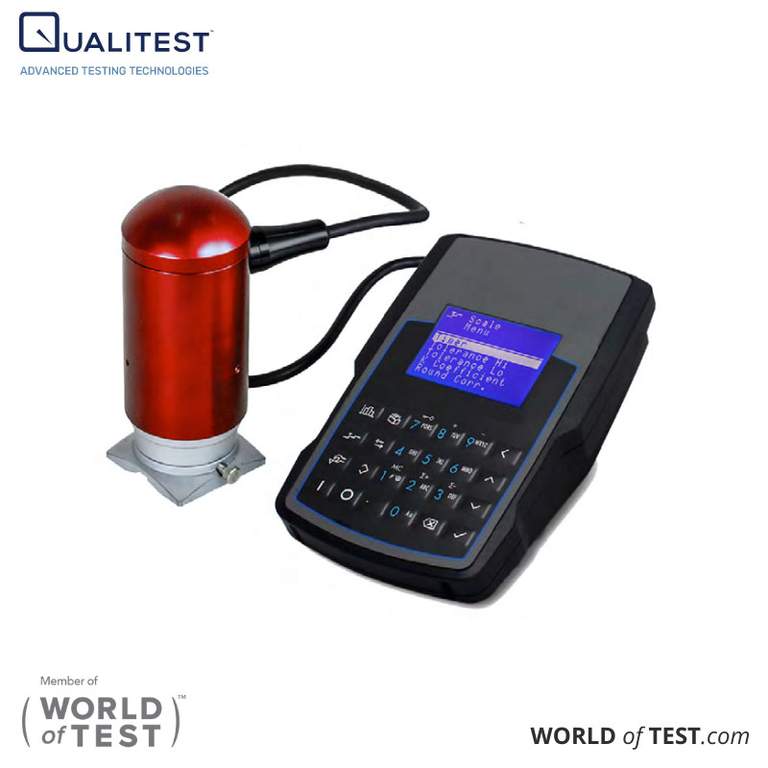

Portable Universal Hardness Testers - METALTEST MKII
Portable Universal Hardness Tester – METALTEST MKII features a smart digital console with an LCD screen, ample storage for data and statistics, and RS232/USB outputs for seamless connection to a printer or computer.
Operating Console
Hardness test results are instantly displayed on the LCD graphic screen, showing values across multiple scales, real-time average updates, battery status, numerical and graphical tolerance limits, programmable preload and load timing, statistics with a Gauss diagram, and an audio signal indicating cycle completion. Temperature readings can also be displayed.
This portable hardness tester features a smart digital console, an LCD screen, ample data storage, and outputs for seamless connection to a printer or computer.
Test Every Sample
Secure clamping adapts to any surface, from round to flat, with automatic indenter alignment for precise measurements. Delivers high accuracy, even on flexible materials. Unaffected by orientation, it operates seamlessly in any position—up to 360°, including upside down.
Fast Test Cycle
Complete testing in under 5 seconds, including preload, main load, and release. Pressure has no impact on accuracy—just reliable results every time.
Accessories
Handclamp Support
Ideal for testing challenging or irregularly shaped items, such as spring wires. The HARDTEST hand clamp system secures your MKII or METALTEST, ensuring stable measurements by preventing sample movement. Designed for ease and safety, it supports testing up to 30 x 30 mm and includes an anvil with various accessories.
Handclamp Sample Supports & Anvils
The HARDTEST hand clamp securely locks samples for testing. For uniquely shaped items, optional supports are recommended to ensure stability and precise positioning for standard hardness tests. Below are examples of primary supports, with additional options available based on specific needs.
