Portal Bridge Gantry Type Brinell Hardness Tester - EP-3000

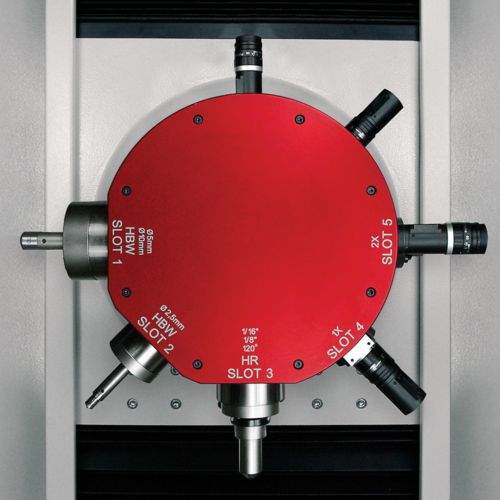

Portal Bridge Gantry Type Brinell Hardness Tester - EP-3000 is a fully automated Brinell hardness tester featuring integrated Brinell milling surface preparation, indentation, and measurement—all housed within a smart rotating turret. A robotic system controls the turret, allowing movement in multiple directions (XYZR) across various frame sizes.

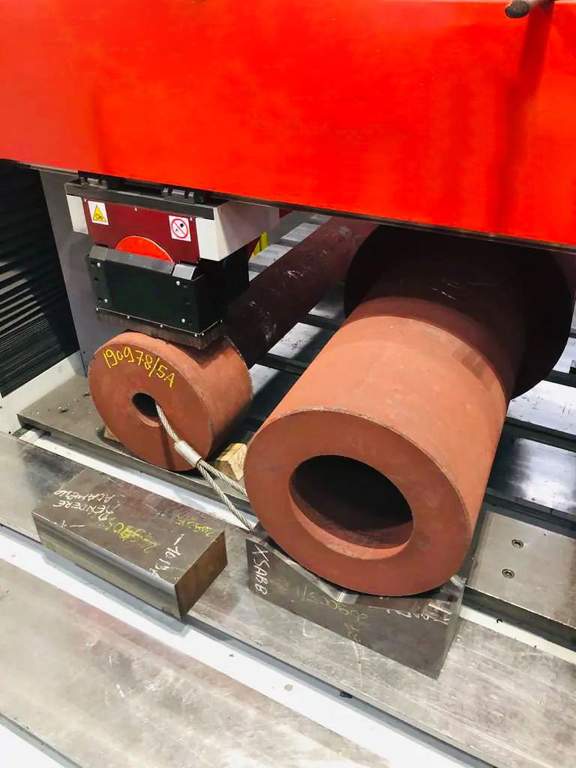

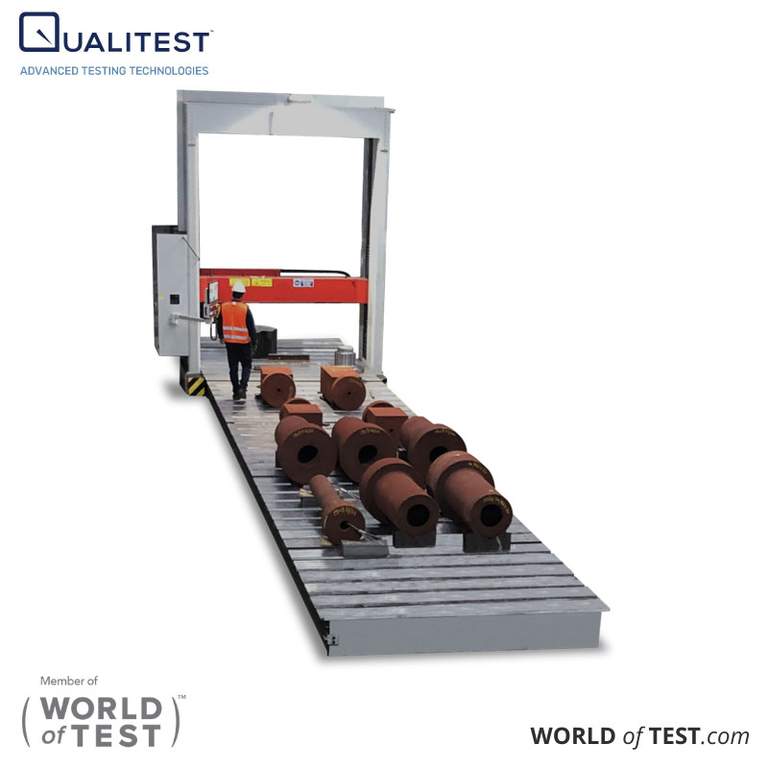

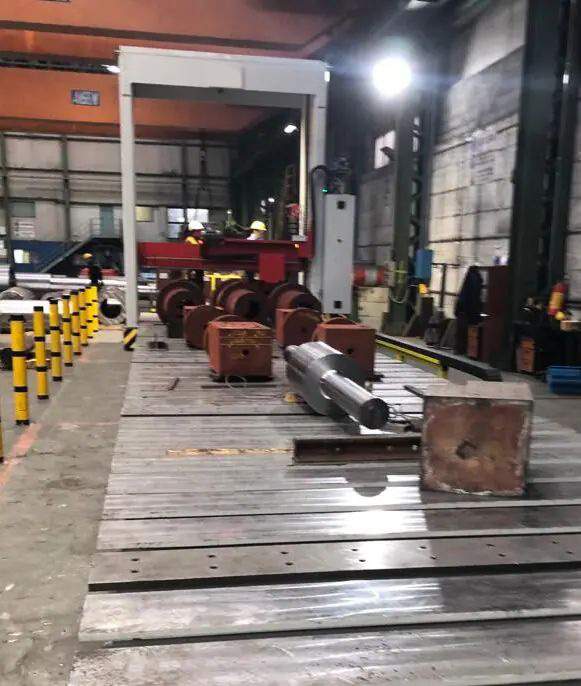

The fixed, stable table (6,000 mm long) accommodates samples of any weight or size without restrictions. A bridge structure moves along the XYR axis to access multiple test points with exceptional precision. The software controls turret movements, enabling automated sequences for milling, indentation, and measurement.
Test loads: From 10 kgf to 3000 kgf (98.07 to 29421 N).
BRINELL HBWT ISO 6506 / ASTM E-10: HBW 1/10 – HBW 1/30 – HBW 2.5/15.625 – HBW 2.5/31.25 – HBW 2.5/62.5 – 2.5/187.5 – 5/25 – 5/62,5 – 5/125 – 5/250 – 5/750 – 10/100 – 10/250 – 10/500 – 10/1000 – 10/1500 – 10/3000
Rockwell and superficial Rockwell ASTM E-18 / ISO 6508 : HRA – HRB – HRC – HRD – HRF – HRG – HRL – HRM – HRR / HRN – HRT

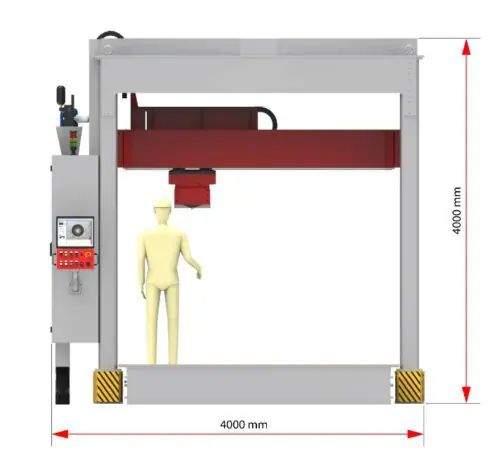

Open space samples everywhereOur design team develops tailored solutions for any application, utilizing the latest technologies for maximum efficiency. - Length: 16 meters or more
- Height: 5 meters or more
- Width: 4 meters or more

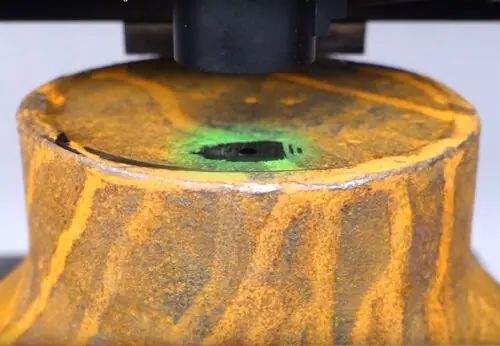

- Laser pointer for precise test point alignment
- Testing load accuracy of 0.05% with Closed Loop system

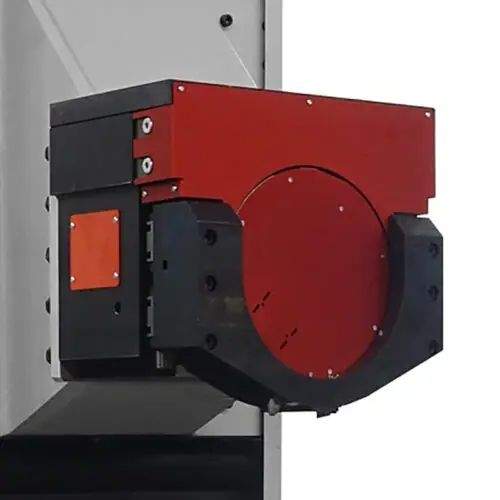

- Clamping system to secure samples before testing

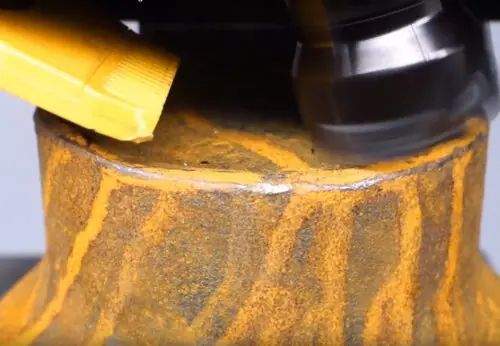

- Adjustable-depth milling tool with variable RPM for surface preparation

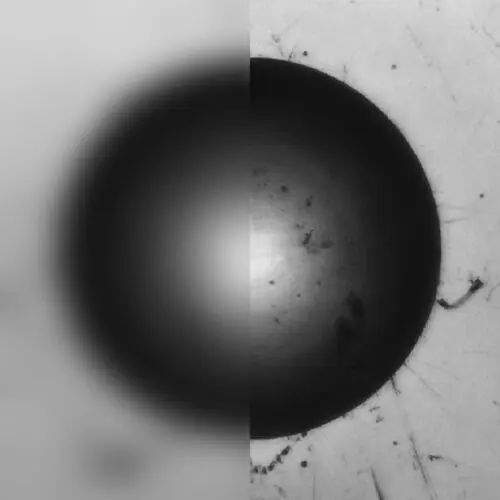

- Brinell measurement with camera and autofocus
- Data acquisition and automated hardness calculation

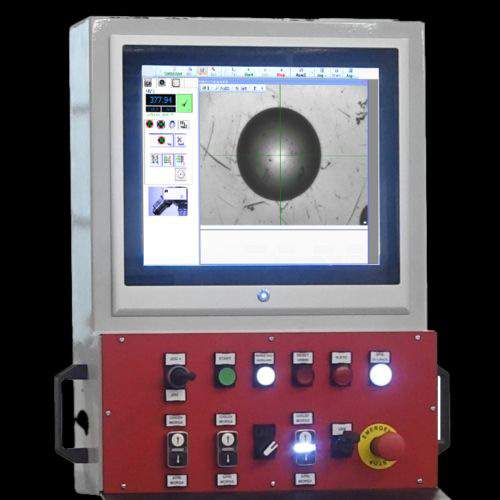

- On-screen display of results
- Image and result archiving with statistical analysis
|  |

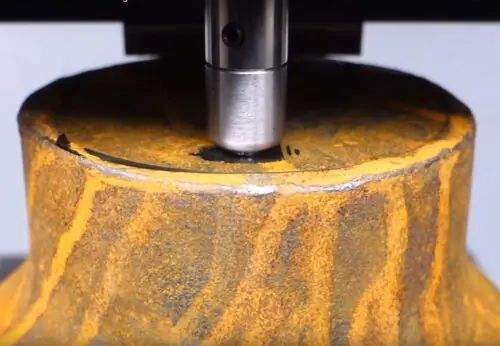

The entire test cycle is completed in under one minute, with milling, indenting, and reading controlled by a single input. Surface preparation is fully programmable, allowing adjustments to milling depth (up to 5 mm) and RPM based on the material being tested.

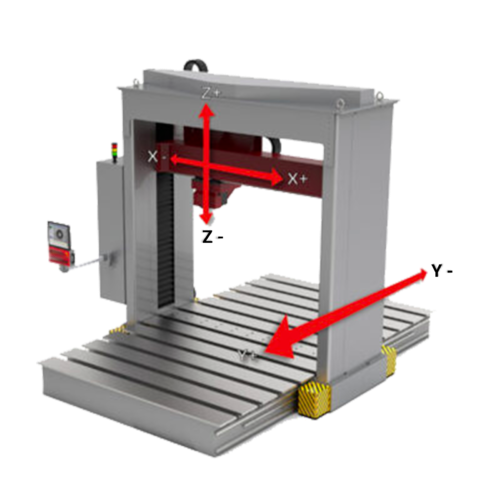

Our portals feature motorized axes for precise movement of the stand, crossbar, and head. The advanced mechanical design of the measuring head enables the EP-3000 to test small parts and surfaces near edges with ease.
Press start and get the result
Save time, money and increase Accuracy!
- Complete test cycle in just 45 seconds, including surface preparation
- 100% production testing with maximum Brinell accuracy
- Fully automated quality inspection process
- Free up personnel for other tasks
- Consistent surface roughness with no risk of damage or heat effects
- Full return on investment within one year
