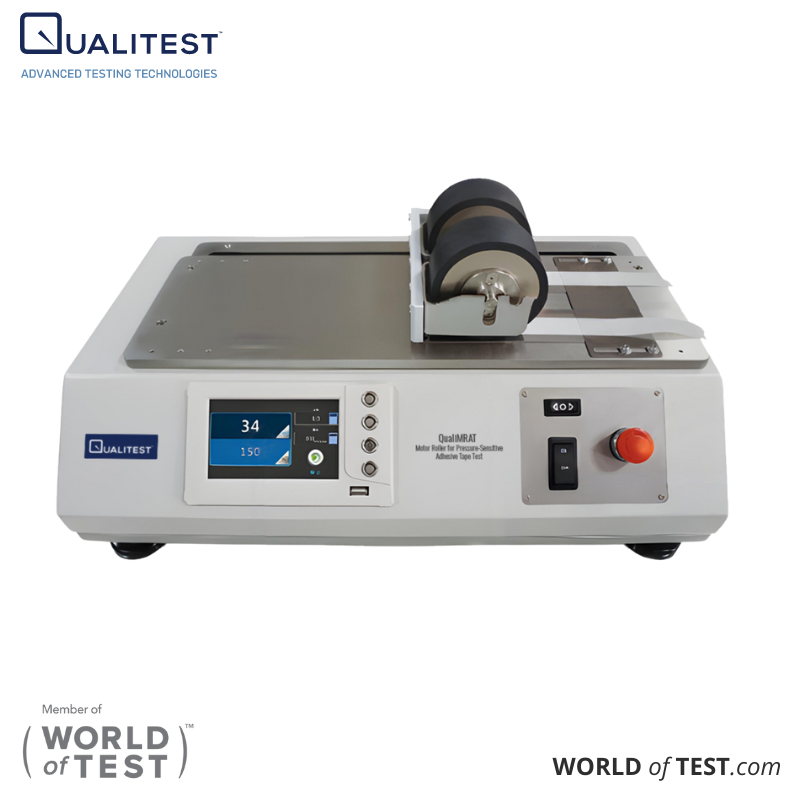

Motor Roller for Pressure-Sensitive Adhesive Tape Test

The preparation of samples for tape peeling tests is performed using a standard rubber roller to roll and adhere the tape onto a steel plate or specific material. Manual application of the tape can be inconsistent and easily affect the test results. However, by using a motorized rolling roller to make the samples, the consistency and stability of the adhesion can be ensured. The QualiMRAT Motorized Roller for Pressure-Sensitive Adhesive Tape Testing operating interface features a 5-inch touchscreen, providing a simple and clear user interface. The rolling speed can be freely set between 50 to 1200mm/min, and up to 99 reciprocating rolls and a maximum adhesive distance of 300mm can be programmed.

Operational Interface

Model	QualiMRAT
Weight of roller	4.5 lb (two rollers can be used at the same time)
Material	Outer covering 80° ±5° (Shore A), rubber coating 6 mm
Speed of roller	50 ~ 1200 mm/min (Stepless setting)
Stroke	Screen touch settings
Width of Roller	45 ± 1.5 mm
Diameter of Roller	97 ± 2.5 mm
Power	Single phase, 110 ~ 240V (110V is also available)
Dimension	580 X 350 X 280 mm
Weight	33 kgf
