2D Precision Height Gage – QualiGage™ 2D Series

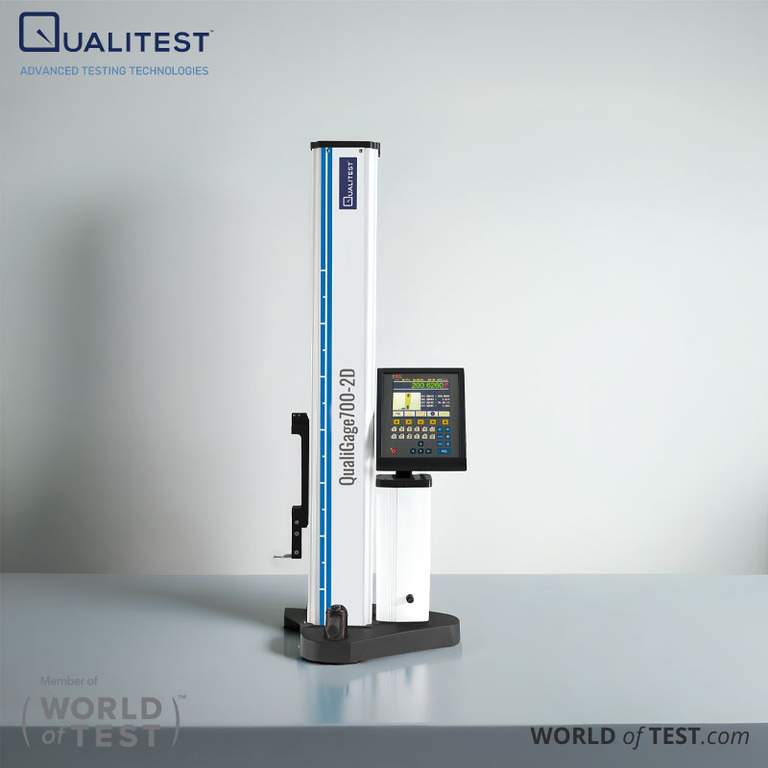

2D Precision Height Gage – QualiGage™ 2D Series is designed for both one-dimensional and two-dimensional measurements, featuring a color LCD screen and automatic vertical probe movement. It supports batch programming for efficient measurements and includes high and low limit indicators.

2D Precision Height Gage – QualiGage-2D Series

Application Demo

2D Precision Height Gage – QualiGage-2D Series2D Precision Height Gage – QualiGage-2D Series

Basic Measurement

2D Precision Height Gage – QualiGage-2D Series

2D Precision Height Gage – QualiGage™ 2D Series Features

  • Suitable for both one-dimensional and two-dimensional measurements
  • Supports batch measurement programming
  • Features a color LCD screen
  • Automatic vertical probe movement
  • Displays high and low limits with status indicators
  • Integrated air compressor ensures smooth operation on a granite surface plate
  • Equipped with a rechargeable battery, offering up to 10 hours of use
  • Supplied with a manufacturer inspection certificate

2D Precision Height Gage – QualiGage™ 2D Series Technical Specifications

ModelQualiGage™ 700QualiGage™ 1000
Range0-700mm0-1000mm
Expandable range1015mm1315mm
Squareness6μm10μm
Resolutions0.5μm, 1μm
Accuracy2+L/330μm, L is measuring length in mm (working temperature is 20±1°C)
Repeatability (with standard probe)0.001 mm on plane and 0.002 mm on bore
Measuring force1±0.2N
OutputUSB or RS232
Power supplyRechargeable battery
Working temperature10°C-40°C
Weight25kg



Included Accessories
Main unit1pc
Ø4x48mm ruby ball probe1pc
Calibration block1pc
Software and USB cable1pc each
Allen key1 set
AC/DC Adapter1pc
