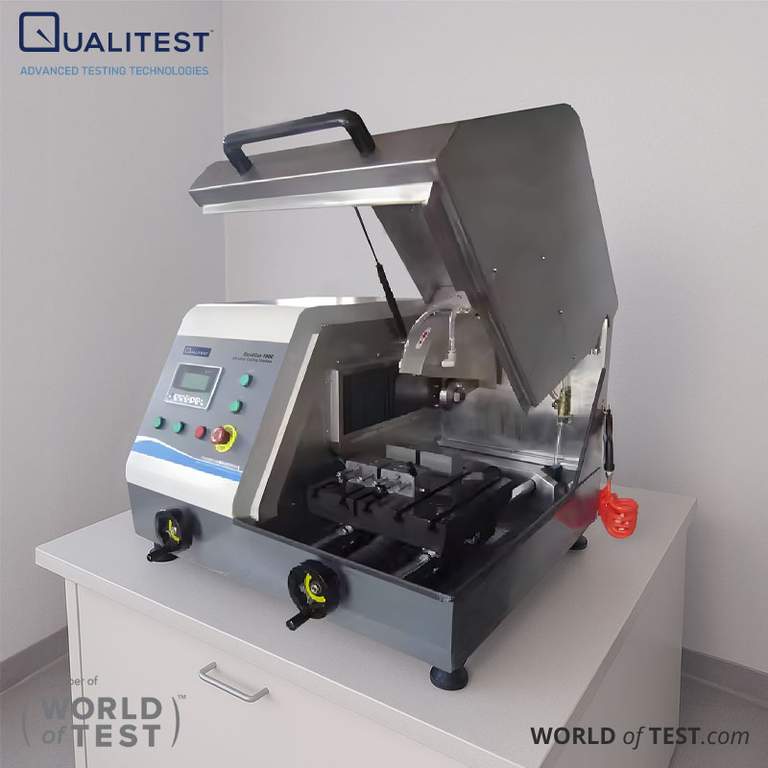

Abrasive Cutting Machine – QualiCut-100C

Abrasive Cutting Machine – QualiCut-100C is designed for precision cutting across a wide range of materials, offering strong performance, high reliability, and user-friendly operation.

This machine includes a durable main body, an advanced electrical control unit, a spacious cutting chamber, and an efficient cooling system—supporting cost-effective and convenient cutting modes. Users can easily customize cutting modes, speed, and tracking paths to meet specific needs.

Key features include a self-diagnostic function, safety mechanisms, and real-time operation guidance to help enhance sample quality.

Ideal for laboratories in universities, research centers, and industrial facilities, the QualiCut-100C is an essential tool for accurate material preparation.

Metallography Abrasive Cutter – Metallographic Abrasive Cutting Machine

Abrasive Cutting Machine – QualiCut-100C Technical Specifications

ModelQualiCut-100C
Input voltage380V/50HZ
Feed speed (Y table)0.005-1mm/s
Spindle speed (cutting wheel)1000-2800RPM
Cut-off wheelΦ350×2.5×32mm
Cutting capacity (Max)Φ110mm
Max Table Moving Distance270mm (Only Y axis for Auto & Manual)
Cutting room460×670mm
Input power4KW
Cutting axisManual Z axis, automatic and manual Y axis
Dimensions1150×1113×800mm
Table Dimension400×280mm
Net weight435kg
Pump & tank100L, 570×440×590mm (L×W×H) including water pump
Coolant flow rate50L/min
Optional accessoriesCabinet / Transversal worktable (X axis) Max. movement is 60mm
