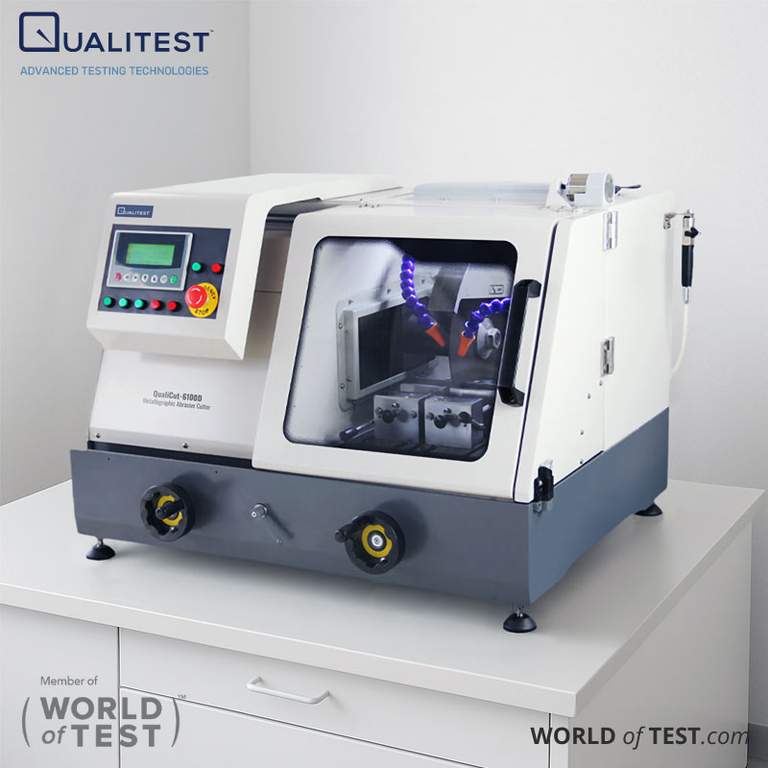

Abrasive Cutting Machine – QualiCut-6100D

Abrasive Cutting Machine – QualiCut-6100D is designed for precision cutting across a wide range of materials. It offers strong performance, high reliability, and user-friendly operation. The system includes a main unit, electrical control tank, advanced cutting chamber, and cooling system—providing efficient and cost-effective cutting options.

Users can customize cutting modes, speed, and path to meet specific requirements. Additional features include self-diagnostics, safety alerts, and operational tips to enhance sample quality.

This machine is an essential tool for laboratories in universities, research centers, and industrial facilities.

Metallography Abrasive Cutter – Metallographic Abrasive Cutting Machine

Abrasive Cutting Machine – QualiCut-6100D Technical Specifications

ModelQualiCut-6100D
Input voltage380V/50HZ
Feed speed0.1-15mm/m
Spindle speed2200RPM
Cut-off wheelΦ350×2.5×32mm
Cutting capacity (Max)Φ100mm
Max Table Moving Distance145mm (Only Y axis for Auto & Manual)
Input power / Cutting motor3.3KW / 3KW
Dimensions / Net weight960mm×855mm×735mm / 285kg
Table Dimension333×280×33mm (left 122mm, right 210mm)
Pump & tank60L, 570×440×590mm (L×W×H) including water pump
Coolant flow rate50L/min
Cutting chamber insidePowerful LED light
T-slots on the cutting table12mm
Touch pad control panelNo, button control
Operation typeManual & Automatic
Optional accessoriesCabinet / Schneider safety lock / Transversal worktable (X axis) Max. movement is 60mm / Frequency converter / filter type water tank
