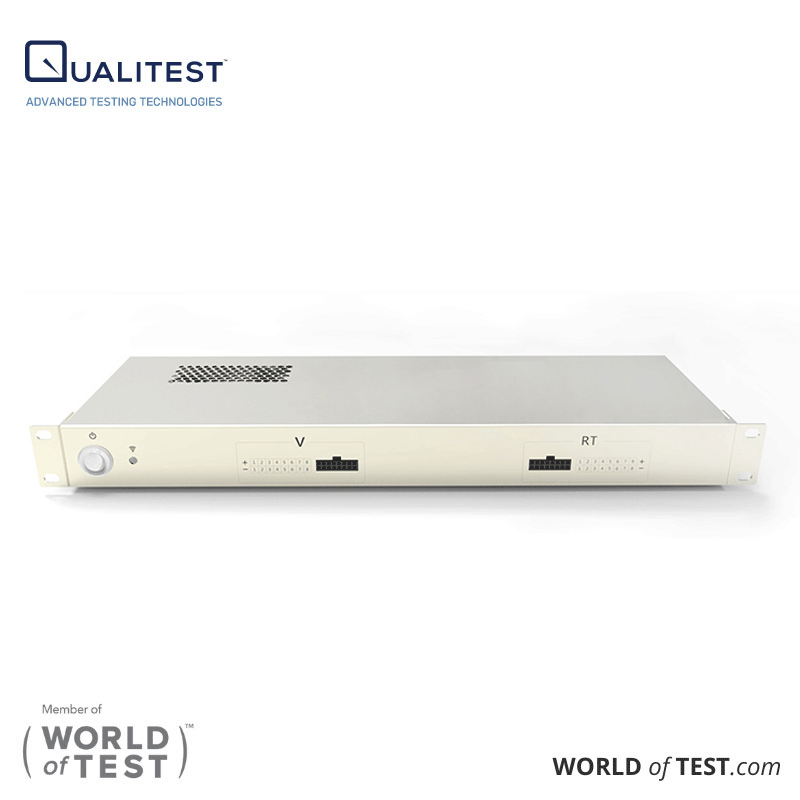

Aux Channel For Temperature and Cell Voltage Monitoring

The Aux Channel For Temperature and Cell Voltage Monitoring sensors are designed to capture the voltage of each individual cell in a series. This capability significantly enhances testing safety by providing comprehensive monitoring. With these captured values, advanced control measures can be implemented to optimize testing procedures and ensure reliable results.

Battery Testing System



Aux Channel For Temperature and Cell Voltage Monitoring

Channels TypeTemperature, Voltage
SensorsCustomized thermocouple (Type K/Type T available)
Temperature Range Thermistor: -35°C ~ 110°C; Thermocouple: -200 ~ 350°C (T); -200 ~ 1250°C (K)
Temperature Accuracy±1°C
Temperature Resolution0.1°C
Voltage Range±5V
Voltage Accuracy±0.1% of FS
Export FormatsExcel, TXT
Communication InterfaceRS485
Channels MappingConnect with BTS and QBTE-7000 through the software
Software ProtectionBy working with the main channel, AUX channel can realize the protection of the sudden voltage drop caused by current loop circuit; the individual cell voltage limits protection, temperature protection.
AUX channels per Main Channel1 - 248 optional
