Bomb Calorimeter QualiBC-3200 - Oxygen Bomb Calorimeter

Bomb Calorimeter QualiBC™ 3200
Parent Product
Bomb Calorimeter – QualiBC™ Series
Standards
AS 1038.5
ASTM D240
ASTM D4809
ASTM D5468
ASTM D5865
ASTM E711
BIS 1350
BS EN 15400
ISO 1928
ISO 9831
ISO18125
View PDF

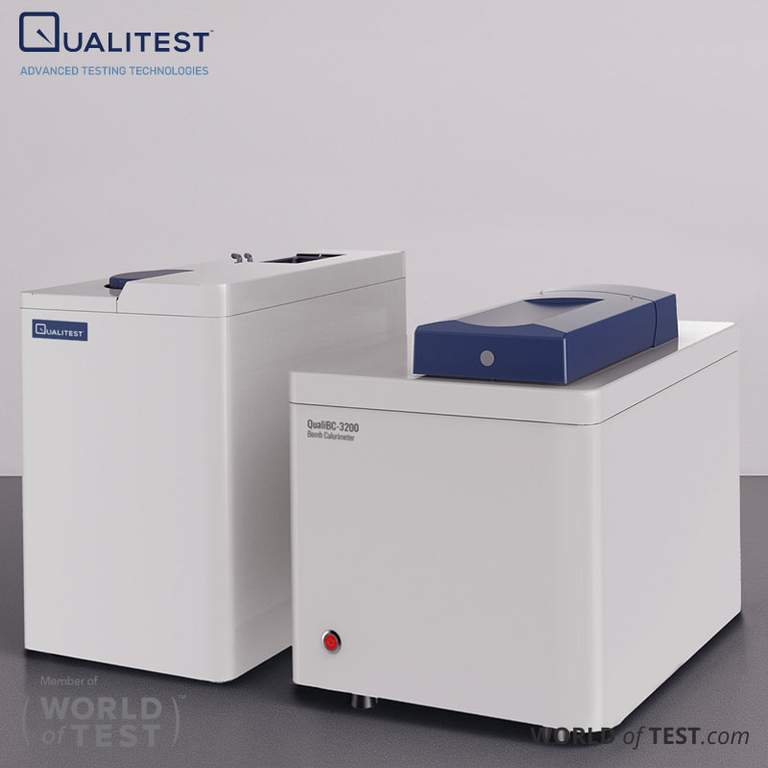

Bomb Calorimeter QualiBC™ 3200

QualiBC™ 3200 Bomb Calorimeter is designed to measure the calorific value of solid and liquid fuels, including coal, coke, petroleum oil, cement black meal, biomass fuels, and select building materials.

A highly efficient and budget-friendly solution that delivers accurate results.
Analysis time: ≤14 minutes

Bomb Calorimeter QualiBC-3200

Bomb Calorimeter QualiBC™ 3200 Features

  • Equipped with a large-capacity water tank, the jacket's water temperature variation remains under 0.1℃ per test, with heat capacity accuracy within 0.15%.
  • Features automatic temperature regulation, consistent water volume, and total water volume monitoring. The entire testing process is fully automated.
  • Enhanced heat capacity ensures highly accurate and dependable results.
  • Utilizes PT1000 platinum resistance for precise temperature measurement.
  • Standard RS232 interface allows connection to a balance and network; real-time data can be transmitted over the internal network.

Bomb Calorimeter QualiBC™ 3200 Technical Specifications

ModelsQualiBC™ 3200
Analysis Time≤14 min
Temperature Resolution0.0001 K
Precision(RSD) (1g Benzoic Acid)≤0.15%
Heat Capacity Stability≤0.25% within three months
System StructureBenchtop/vertical
Conformance with StandardASTM D5865, ASTM D240, ASTM D4809, ASTM E711, ASTM D5468, ISO 1928, ISO 9831, ISO18125, AS 1038.5, BS EN 15400, BIS1350
Test per Hour2~4
Bomb volume282 ml
Calorimeter TypeIsoperibol
Oxygen FillingSemi-automatic
Bomb WashingManual
Max. Bomb pressure20 Mp
Bomb IdentityYes
Gas Requirement99.5% Oxygen
Water RequirementDistilled  Water
Energy Measurement Range0~50000J
Bucket FillingAutomatic
Constant Volumetric Tank with Temp Control DeviceBucket determine water volume automatically
Independent Bucket and Jacket Water SystemYes
Stirring MethodBlade
Power InverterNo
Reproducibility based on analysis of 1g Benzoic Acid0.15%
Average Temperature Increase2℃
Temperature MeasurementPT1000
Working Temperatures≤32℃
Cooling methodRefrigerating Device
NetworkYes
VoltageAC 220V (-10% +10%)50/60Hz (110V is also available)
Max. Power0.6 KW
DimensionMain body: 500 x 600 x 425
Water Tank: 550 x 356 x 520
Weight65 kg
Advance CalculationYes
Analysis ReportYes
Statistics ReportYes
System MonitorYes
