CMM Coordinate Measuring Machine – QualiCMM 10xx8 Series

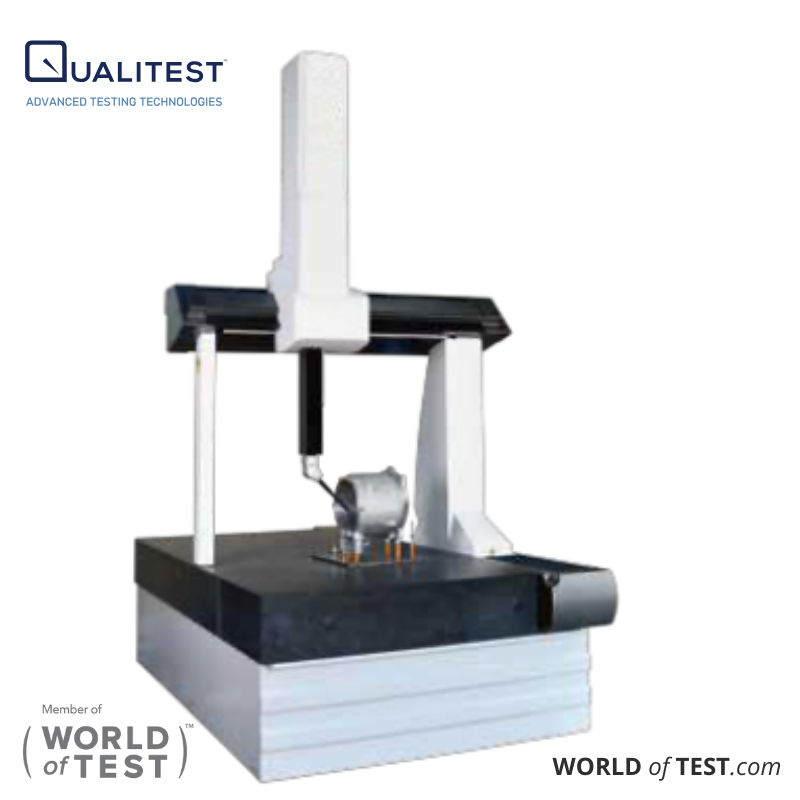

CMM Coordinate Measuring Machine – QualiCMM™ 10xx8 Series
Parent Product
CMM Coordinate Measuring Machine – QualiCMM™ Series
View PDF

The QualiCMM™ 10xx8 Series is designed for manufacturers who require a balance of generous measuring volume and uncompromising precision. Built to meet the rigorous demands of modern quality labs, this series excels in inspecting complex geometries with repeatable accuracy.

QualiCMM™ 10xx8 Series

  1. MPEE: Meets ISO 10360-2:2009 standards.
  2. MPEP: Meets ISO 10360-2:2009 standards.

Probe Configuration for Performance Testing

  • HH-MI: Stylus length of 21 mm, tip diameter of 4 mm.
  • HP-TMe/HP-THDe: Standard measuring force, stylus length of 10 mm, tip diameter of 4 mm.

Performance Specifications

Performance data are valid under the following conditions:

  • Temperature Range: 18°C to 22°C;
  • Maximum Air Temperature Variation:
    • 1°C/h - 2°C/24h;
  • Maximum Gradient in Space: 1°C/m;
  • Relative Humidity: 25% to 75%.

  • Standards Compliance: Fully compliant with $MPE_E$ and $MPE_P$ under ISO 10360-2:2009.

  • Probing Versatility: Compatible with HH-MI (21 mm stylus) and HP-TMe/HP-THDe configurations for varied tactile inspection needs.

  • Optimal Environment: To ensure measurement integrity, this series is calibrated for environments with a strict thermal gradient of 1°C/m and a stable temperature range of 18°C to 22°C.

Travelings, Dimensions, and weights

CMM Coordinate Measuring Machine – QualiCMM Series



CMM Coordinate Measuring Machine – QualiCMM™ 10xx8 Series Specifications

CMM Coordinate Measuring Machine – QualiCMM SeriesCMM Coordinate Measuring Machine – QualiCMM Series
