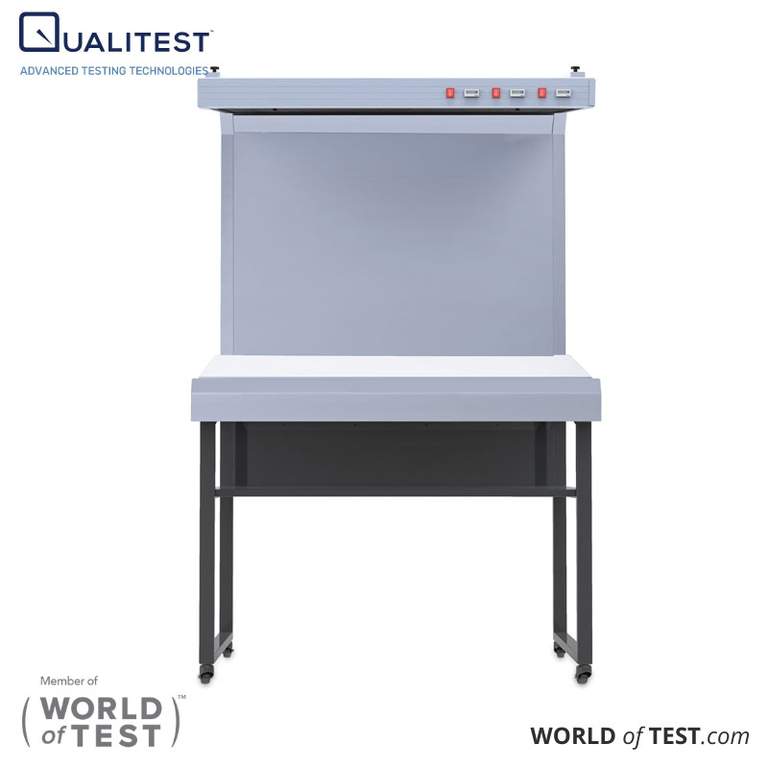

Color Viewer Light Table QT-CC120-C

Color Viewer Light Table QT-CC120-C features both upper and lower lighting. The upper section can be configured with one, two, or three light sources from D65, D50, or TL84, with a total of four fixtures. The lower section supports a single light source from D65, D50, or TL84, using six fixtures. Pricing varies based on the selected light sources.

We provide industry-standard lighting options commonly used in printing environments, compliant with ISO 3664:2009 standards.

The QT-CC120-C vertical light source viewer is ideal for print shops and proofing centers where precise environmental control is essential. It is designed for use in settings such as offset, flexographic, and gravure printing facilities. It also allows for direct viewing of reflective samples.

The QT-CC120-C series vertical sample table includes frequently used light sources in the printing industry and complies with ISO 3664:2009. It is widely used for color evaluation in printing, dyeing, textiles, plastics, and hardware. This system creates a standardized environment for color comparison, production monitoring, quality control, and inspection—helping users enhance product quality and competitiveness in the market.

Light source: Fluorescent lamp

  • 36W D65 *4
  • 36W D50 *4
  • 36W TL84 *4
Color Viewer Light Table QT-CC120-C

Color Viewer Light Table QT-CC120-C Features

  • Complies with the ISO 3664 international standard, the QT-CC120-C offers three modes with options for single, double, or triple light sources.
  • Equipped with high color-rendering index lamps and a timer that displays the lamp's usage time.
  • The QT-CC120-C is built from durable metal materials, with a large size and excellent craftsmanship, making it easy to use.
  • Includes commonly used light sources in the printing industry, meeting ISO 3664:2009 requirements.
  • The QT-CC120-C is widely used in print shops and sample testing centers.
  • It is also suitable for checking reflective samples and can be used in offset printing, flexographic printing, and gravure printing industries.

Color Viewer Light Table QT-CC120-C Technical Specifications

Upper Light Source Optional (1-3 lights)

Light SourceD65D65 & D50D65 & D50 & TL84
TubesD65 6500K 36WD65 6500K 36W
D50 5000K 36W		D65 6500K 36W
D50 5000K 36W
TL84 4000K 36W
PowerAC220V 50HZ (110V is also available)AC220V 50HZ (110V is also available)AC220V 50HZ (110V is also available)
Worktable Size (cm)135×90135×90135×90
Vertical Size (cm)135×217135×217135×217
External Size (cm)135×90×217135×90×217135×90×217

Lower Light Source Optional

Lower Light source Optional (ONLY ONE)

D65D50TL846 PCS
