Core Drilling Machines

Core Drilling Machines

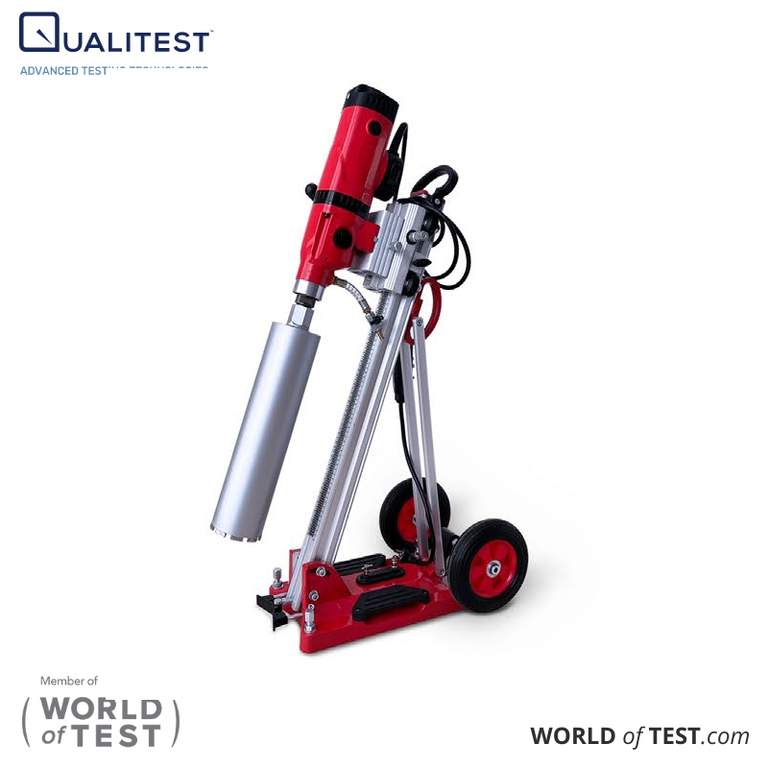

High-performance core drilling machines designed for precision and durability across various applications. Models range in capacity from 110mm to 250mm diameter and up to 2400mm drilling depth, featuring petrol and electric options, variable speeds up to 2800 rpm, and power outputs from 1.4kW to 4580W. Suitable for both light-duty and heavy-duty drilling tasks.

Model	QualiCDM™ Q20 (Petrol Control) Core Drilling Machine
Max Dia of drilling	200 mm
Max depth of drilling	700 mm
Rotate speed	800-1200 r/min
Power	5.5/9 HP
Weight	130 Kg
Dimensions	1080×780×1150 mm

Model	QualiCDM™ Z110 Core Drilling Machine
Max Dia of drilling	110 mm
Rotate speed	0-1900 r/min
Power	1.4kW 220 V (110V is also available)
Weight	6kg

Model	QualiCDM™ 3-250 Core Drilling Machine
Drilling range	15-250 mm
No-load speed	650 r/min
Power	110V/220V/240V, 50-60Hz,4580W
Weight	50 kg

Model	QualiCDM™ BTI22 Bridge & Tunnel Invert Special Core Drilling Machine
Max. applicable diameter	φ200mm
Max. drilling depth	2400mm
Rated voltage	220 / 240V (110V is also available)
Rated frequency	50-60Hz
Input power	2200W
No-load speed	580/1400/2800rpm
Weight	42/50kg
Overall size	900×400×250mm
