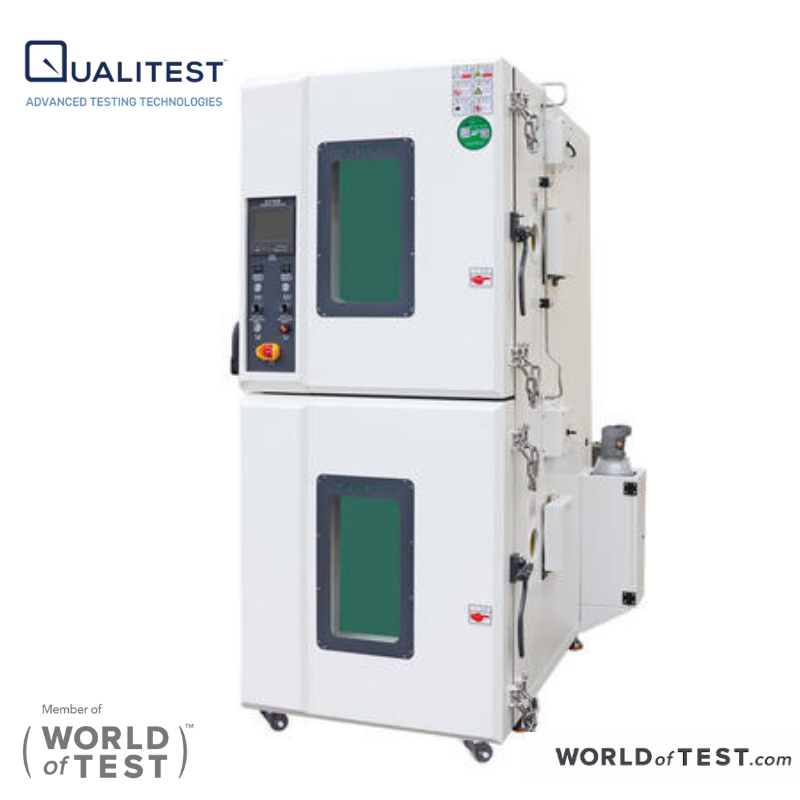

Double Layer Battery Lab Oven

Structural Features of the Double Layer Battery Lab Oven:

1. Robust Construction:
   • Inner box structure crafted from 1.2mm SUS#304 heat-resistant and cold-resistant stainless steel plate, fully seamless welded for durability.
   • Internal reinforcement with 2mm thick SUS304 stainless steel enhances structural integrity.
2. Premium Insulation:
   • Utilizes German Bayer fire-resistant high-strength PU polyurethane foam insulation material coupled with ultra-fine glass fiber for superior insulation.
3. Advanced Door Design:
   • Door seal incorporates double silicon rubber sealing material for effective sealing.
   • Multi-layer hollow tempered glass observation windows with automatic defrost function ensure a clear view without frost or condensation during any test.
4. Anti-Frost Mechanism:
   • Integrated heating wire inside the observation windows prevents glass frosting during low-temperature operations.
5. Convenient Test Cable Ports:
   • Equipped with test cable ports on both sides of the chamber, featuring a 100mm diameter and high/low-temperature resistant silicon plugs for easy connectivity.
6. Innovative Door Lock System:
   • The door lock, developed and designed in-house using lever theory, adds an innovative touch to the overall design, ensuring secure closure.

These structural features collectively enhance the reliability, functionality, and user-friendly design of the Double Layer Battery Lab Oven by combining advanced materials with innovative engineering.

CO2 Protection System for Enhanced Safety:

1. Comprehensive Control Unit:
   • Inclusive of a sophisticated control unit that manages various components for seamless operation.
2. Alarm Panel and Emergency Button:
   • Equipped with an alarm panel to provide immediate alerts and an emergency button for swift response in critical situations.
3. Precise Temperature Control:
   • Features a thermostat with a dedicated temperature probe to ensure accurate temperature monitoring and control.
4. CO2 Fire Extinguishing System:
   • Integrated CO2 fire extinguishing system for effective fire suppression, activated either by exceeding a user-set temperature threshold measured by a dedicated PT100 or by surpassing a CO2 threshold within the chamber.
5. User-Defined Activation Parameters:
   • Allows users to set and customize temperature thresholds for CO2 system activation, providing flexibility and adaptability to specific testing conditions.
6. Independent Power Supply for Detection System:
   • The detection system operates on its own power supply, ensuring reliability even in case of power fluctuations.
7. Inert Atmosphere Fire Suppression:
   • Utilizes N2 or CO2 to create an inert atmosphere, effectively eliminating oxygen and preventing combustion for enhanced fire suppression.

The CO2 Protection System is designed to provide a multi-layered approach to safety, combining advanced detection mechanisms, user-defined activation parameters, and inert atmosphere fire suppression, ensuring a secure environment for critical applications.

Advanced Electrical System for Unmatched Reliability:

1. Neat and Professional Design:
   • The circuit cabinet features an overall layout that is both tidy and professionally organized, reflecting a commitment to precision in design.
2. Adherence to UK Standards:
   • Circuits are meticulously arranged in accordance with UK standards, ensuring compliance with industry regulations for electrical systems.
3. Clear and Comprehensive Circuit Diagrams:
   • Complete circuit diagrams accompany the system, providing a visual guide for easy comprehension. Each line is uniquely coded, facilitating quick and precise troubleshooting.
4. Global-Quality Components:
   • Utilizes electrical components from renowned international brands:
     • Schneider (France)
     • Carlo Gavazzi (Switzerland)
     • Mitsubishi (Japan)
     • Rainbow (Korea)
5. Code-Based Organization:
   • Each line is assigned a distinct code, enhancing organization and facilitating rapid identification during troubleshooting, contributing to an efficient maintenance process.
6. Premium Component Selection:
   • Incorporates components from world-famous brands, ensuring high-quality performance and durability.

The Electrical System is a testament to meticulous planning and top-tier component selection, offering a reliable and standardized solution with a global perspective.
