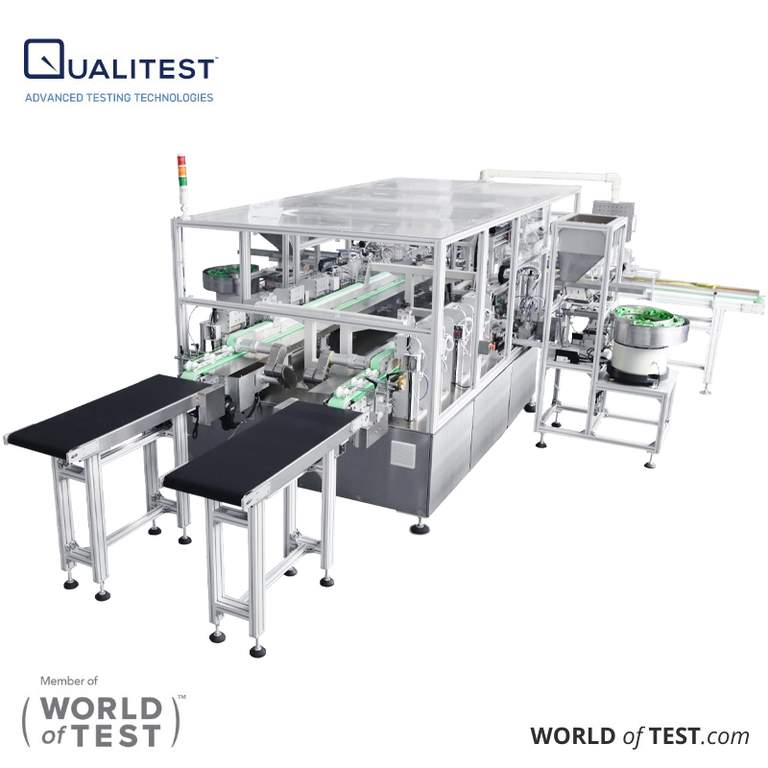

Dual-channel Linear Mode Corner-spout Sealing Machine QualiSSM-2600X Features
- The fully automatic dual-channel linear type corner-spout sealing machine QualiSSM2600X utilizes a dual-channel linear mode, with fully automatic processes such as bag separation, corner cutting, spout installation, and heat sealing.
- PLC control and intelligent parameter setting allow quick adjustments for different bag types and spouts, making operation simple.
- Incorporates advanced temperature control modules and high-quality pneumatic components from SMC, Festo, and AirTAC, ensuring reliable performance.
- Features a step-by-step heating and final cooling design for perfect packaging results.
- Equipped with automatic fault detection, alarms, stops, diagnostics, and fault location display for enhanced safety and troubleshooting.
- The equipment is lightweight, occupies a small area, and offers stable performance.
- Main components are made of aluminum alloy and stainless steel, meeting the environmental health requirements of food and drug GMP standards.
System Composition
- The fully automatic dual-channel linear type corner-spout sealing machine QualiSSM2600X features a dual-channel design and consists of a bag delivery system, a spout delivery system, a cutting system, a heat sealing system, a bag collecting system, a central control system, and a base.
- The bag delivery system includes mechanisms for bag separation, positioning, and delivery. The bag separating mechanism separates bags individually, the delivery mechanism handles transportation, and the positioning mechanism corrects the positions.
- The spout delivery system includes a vibrating plate, linear vibrating delivery, and a rotating spout delivery mechanism, with automatic detection and control of start and stop functions.
- The heat sealing system consists of heat sealing and cooling components, including 4 sets of heat sealing blades and 1 set of cooling blades. Customizable heat sealing and cooling blades accommodate different spout specifications.
- Each set of sealing blades has independent temperature control, allowing for individual temperature settings, operation, and debugging.
- The bag collecting system conveys at a constant speed and automatically arranges the bags for easy product observation and inspection. It also includes a reserved installation position for a coding machine.
- The operation interface displays real-time working status, including finished product quantity, date, servo motor parameters, cylinder action parameters, and heat sealing time.
