Evaporation Loss Tester for Lubricating Oil Volatility Testing: Reduce Oil Consumption Risk With Accurate Volatility Data
An evaporation loss tester gives lubricant formulators and quality control laboratories the volatility data they need to predict real-world oil consumption, meet specification limits, and approve engine oil formulations before they reach production. Without accurate evaporation loss measurement, a lubricant can pass other bench tests yet still cause excessive oil consumption, deposit buildup, and premature viscosity increase in service.

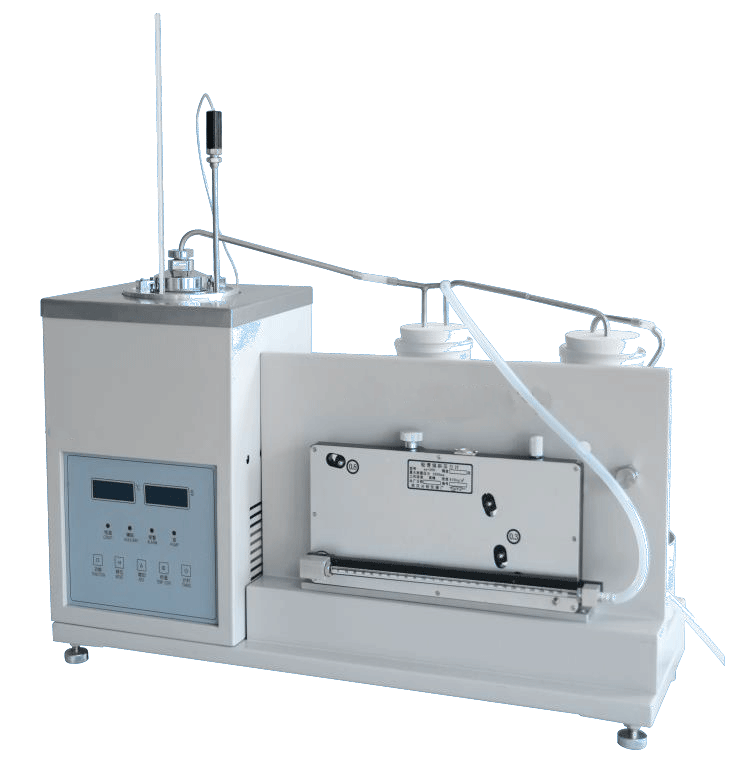

This evaporation loss tester follows the ASTM D5800 Noack method and SH/T 0059, the two primary standards that govern high-temperature volatility testing for lubricating oils. It heats a weighed oil sample to 250 degrees Celsius for 60 minutes under controlled airflow and measures the resulting mass loss as a percentage. That percentage, the Noack volatility value, is the number that API SP, ILSAC GF-6, ACEA, and GM dexos1 specifications all use to set maximum allowable evaporation loss limits for engine oils.
How the Noack Evaporation Loss Test Works
The Noack evaporation loss test measures oil volatility by heating a sample under standardized conditions and quantifying how much mass escapes as vapor. It exploits the fact that lighter hydrocarbon fractions in a lubricant have higher vapor pressures and evaporate preferentially at elevated temperatures, leaving a heavier, more viscous residual oil behind.
Principle: Vapor Pressure and Selective Evaporation
Every component in a lubricating oil blend has a characteristic vapor pressure that rises with temperature. At 250 degrees Celsius, the lighter molecular-weight fractions, typically those below roughly C20 hydrocarbons, reach vapor pressures high enough to escape the liquid surface. A controlled stream of air sweeps these volatile fractions away from the sample surface. This prevents the local atmosphere from becoming saturated and ensures that evaporation proceeds at a consistent, reproducible rate. The mass that escapes during the 60-minute test period represents the oil's volatile fraction under conditions that simulate the thermal stress near piston rings, turbocharger bearings, and cylinder walls in a running engine.
How the Instrument Executes the Test
The operator places a precisely weighed oil sample (typically 65 grams) into the evaporation crucible. The crucible sits inside a metal bath filled with Wood's alloy (a low-melting-point alloy of bismuth, lead, tin, and cadmium) that acts as the heat transfer medium. The metal bath brings the sample to 250 degrees Celsius and holds it within plus or minus 0.5 degrees Celsius for the full 60-minute test.
A vacuum pump draws air through the crucible cover at a controlled differential pressure of 196 Pa (plus or minus 2 Pa). This airflow carries oil vapors out through an extraction tube. The MCU controller manages both temperature regulation and pressure control throughout the test, eliminating manual adjustment and reducing operator variability.
After 60 minutes, the controller stops the test. The operator removes the crucible, cools it, and weighs it again. The difference between the starting mass and the final mass, expressed as a percentage, is the Noack evaporation loss value.
How to Select and Specify an Evaporation Loss Tester
Choosing the right evaporation loss tester depends on the laboratory's testing volume, the applicable standard, and the required level of automation. Consider these factors:
- Standard compliance: confirm the instrument meets ASTM D5800 Procedure A (Wood's metal bath) and SH/T 0059. If your customers or specifications also require Procedure B or Procedure D results, verify whether the tester's design and calibration approach support correlation to those procedures.
- Temperature stability: a tolerance of plus or minus 0.5 degrees Celsius at 250 degrees Celsius is the ASTM requirement. Tighter stability reduces run-to-run variability and improves laboratory repeatability.
- Pressure control precision: the 196 Pa differential pressure must hold within plus or minus 2 Pa. Instruments with automatic pressure regulation reduce the risk of operator error.
- Calibration capability: instruments that support calibration against a certified reference oil allow the lab to verify accuracy on a regular schedule, which is critical for maintaining accreditation and passing proficiency testing rounds.
- Sample throughput: laboratories testing dozens of samples per day may need instruments that minimize setup time between runs. Features like an MCU controller with automatic timing and alarm functions reduce idle time.
- Power supply compatibility: confirm whether the unit ships configured for 220 V or 110 V, and specify at the time of order if your facility uses a non-default voltage.
- Safety considerations: Wood's alloy contains toxic metals (lead, cadmium). Ensure the laboratory has adequate ventilation and handling protocols. Some newer designs eliminate Wood's metal entirely, but those correspond to different ASTM D5800 procedures.
Frequently Asked Questions
What Does an Evaporation Loss Tester Measure?
An evaporation loss tester measures the percentage of a lubricating oil sample that evaporates when heated to 250 degrees Celsius for 60 minutes under controlled airflow. The result, called the Noack volatility value, indicates how much of the oil's lighter fractions will escape under high-temperature service conditions. Lower values mean greater thermal stability and less oil consumption in the engine.
What Is the ASTM D5800 Noack Test?
ASTM D5800 is the standard test method for determining the evaporation loss of lubricating oils using the Noack method. It covers four procedures (A through D) that use different apparatus designs but target the same measurement. The test heats a weighed sample in an evaporation crucible while drawing air across its surface, then reports the mass lost as a percentage. Major oil specifications, including API SP and ILSAC GF-6, require oils to pass this test within defined volatility limits.
Why Does Oil Evaporation Loss Matter for Engine Performance?
When lighter oil fractions evaporate in an engine, the remaining oil becomes thicker and circulates less effectively. This viscosity increase raises friction, reduces fuel economy, and accelerates wear on bearings and piston rings. The evaporated fractions can also deposit on catalytic converters and degrade emissions system components. Controlling evaporation loss keeps the lubricant within its designed viscosity range for the full drain interval.
What Are the Maximum Noack Volatility Limits for Engine Oils?
API SP and ILSAC GF-6 specifications set the maximum evaporation loss at 15 percent for all viscosity grades. ACEA European sequences and GM dexos1 Gen 2 are more stringent, requiring 13 percent or lower. High-performance synthetic oils often achieve values well below 10 percent, which provides additional margin for severe operating conditions.
How Often Should a Laboratory Calibrate the Evaporation Loss Tester?
Laboratories should calibrate the instrument against a certified reference oil before each testing campaign or at a frequency defined by their quality management system. Regular calibration catches drift in temperature control or vacuum regulation before it affects reported results, which is essential for maintaining ISO 17025 accreditation and passing inter-laboratory proficiency programs.
What Is Wood's Alloy and Why Does the Tester Use It?
Wood's alloy is a low-melting-point metal mixture (bismuth, lead, tin, and cadmium) that melts at approximately 70 degrees Celsius. The tester uses it as a bath medium because it conducts heat uniformly around the evaporation crucible, ensuring the oil sample reaches and holds 250 degrees Celsius with minimal temperature variation. This uniform heat transfer is critical for repeatable test results.
