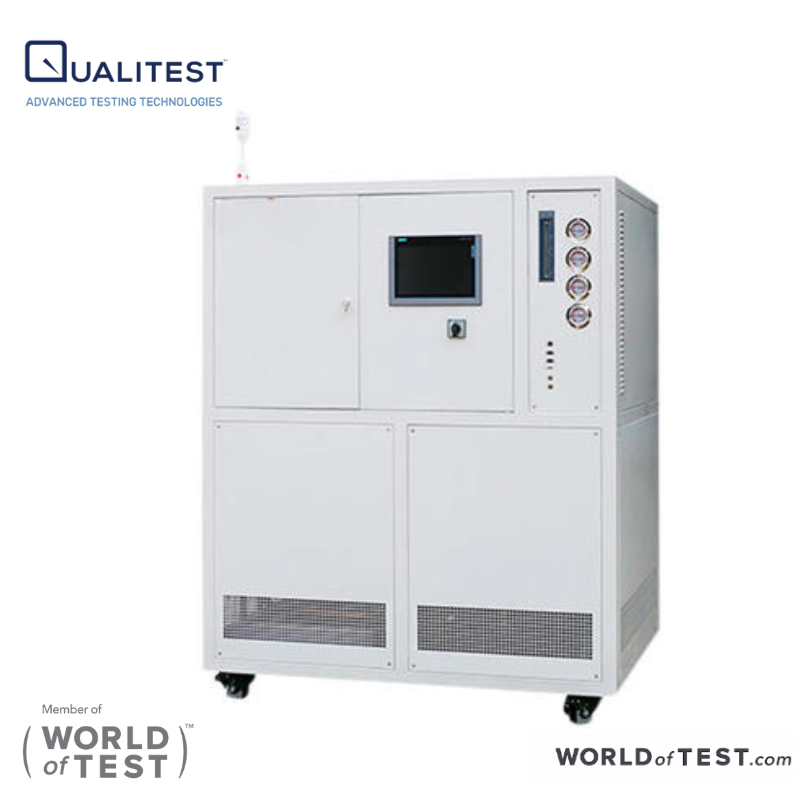

Fuel Cell Test Cooling System

Fuel Cell Test Cooling System
Parent Product
Temperature Control Units For EV Electric Vehicle Testing

Fuel Cell Test Cooling System is a dedicated platform for assessing the performance of vehicle fuel cell engines. This comprehensive system includes a high-pressure hydrogen supply, load and motor drive systems, control mechanisms, and safety features. The fuel cell engine produces electrical energy, converted into rotary mechanical energy by a DC/DC converter and motor, driving a versatile dynamometer. Serving as both a load and dynamic measurement device, the dynamometer ensures thorough testing of fuel cell engine capabilities.

Fuel Cell Test Cooling System

Fuel Cell Test Cooling System

The hydrogen fuel cell test cooling system serves as a reliable testing platform for fuel cell engines. It is specifically designed for the performance testing of vehicle fuel cell engines and comprises components such as the hydrogen supply system, load system, motor drive system, control system, safety system, and more.

The high-pressure hydrogen system is responsible for delivering hydrogen to the fuel cell engine. The engine generates electrical energy, which undergoes conversion into rotary mechanical energy through a DC/DC converter and a motor. This rotary mechanical energy is then utilized to drive the dynamometer.

The dynamometer functions as both a load and a dynamic measurement device, providing comprehensive testing capabilities for fuel cell engine performance.

Fuel Cell Test Cooling System



ModelSM-455
SM-455W		SM-475
SM-475W		SM-4A10
SM-4A10W		SM-4A15
SM-4A15W		SM-4A25
SM-4A25W		SM-4A38WSM-4A60W
Temp Range-40℃～+100℃
Temperature control precision±0.5℃
Temperature feedbackPt100
Temperature display0.01k
Flow rate output1～10 L/min1～25 L/min1～25 L/min1～40 L/min1～40 L/min5～50 L/min5～50L/min
Flow description/When the temp. is below -30℃,When the temp. is below-30℃,
the maximum flow rate is 25L/min.the maximum flow rate is 30L/min.
Flow rate accuracy±0.2 L/min±0.2 L/min±0.2 L/min±0.2 L/min±0.2 L/min±0.2 L/min±0.2L/min
Pressure displayAdopt the Jeffron pressure sensor, the touch screen display the pressure, can carry on the pressure control adjustment.
Heating power5.5kW7.5kW10kW10kW15kW25kW38kW
Optional 15kWOptional 25kWOptional 38kWOptional 60kW
Cooling
capacity		100℃5.5kW7.5kW10kW15kW25kW38kW60kW
20℃5.5kW7.5kW10kW15kW25kW38kW60kW
0℃5.5kW7.5kW10kW15kW25kW38kW60kW
-20℃2.8kW4.5kW6kW10kW16kW25kW35kW
-35℃1.2kW1.8kW2.5kW4kW6.5kW10kW15kW
CompressionEmerson Valley Wheel Compressor
Expansion valve/solenoid valveEmerson / Danfoss thermal expansion valve
Oil distributorEmerson
Dry filter, Pressure controlEmerson / Danvers
EvaporatorDanfoss/KAORI plate heat exchanger
Input,DisplaySiemens 7-inch color touch screen \ Siemens s7-1200 PLC controller
Program edit10 procedures may be prepared, each of which may be composed of 40 steps
CommunicationCAN communication bus
Safety protectionSelf-diagnosis function; freezer overload protection; high pressure pressure switch, overload relay, thermal protection device, low liquid level protection, high temperature protection, sensor fault protection, etc.
Closed circulation
system		The whole system is a fully enclosed system. There is no oil mist at high temperature, and low temperature does not absorb moisture in the air. The system does not increase the pressure due to high temperature during operation, and the heat medium is automatically replenished at low temperature.
refrigerantR404A/ R507C
Connection sizeG3/4G3/4G3/4G3/4G3/4G3/4G3/4
Cooling water@25C1100L/H1500L/H2000L/H2800L/H4500L/H7000L/H12000L/H
Condenser(W)Tube type heat exchanger (Paris/Shenshi)
Condenser(A)Copper tube aluminum finned heat exchanger (upward wind)
Power 380V50HZ12kW max15kW max20kW max29kW max42kW max58kW max84kW max
Dimension(W) cm55*95*17555*95*17555*95*17570*100*17580*120*185100*150*185145*205*205
Dimension(A) cm55*95*17555*95*17570*100*17580*120*185100*150*185
Weight (water cooling)250kg280kg320kg360kg620kg890kg1300kg
Optional220V 60HZ Three phase 400V 50HZ Three phase 440V 60HZ Three phase
OptionalExtend to -40~+135℃
OptionalHigher precision control of temperature, flow and pressure
OptionalAutomatic antifreeze filling system
OptionalAutomatic antifreeze filling system
