Three Angles Gloss Meter Technical Specifications |

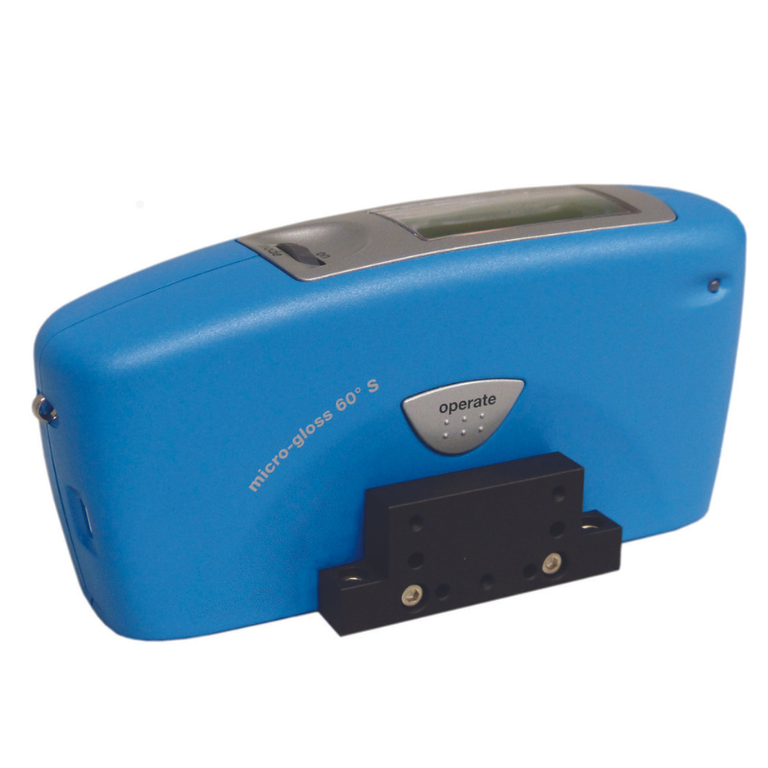

| Model | micro-gloss 60° robotic | micro-gloss 60° S robotic | micro-gloss 60° robotic, non-contact 3mm | | | | | | | | |
| Geometry | 60° | 60° | 60° | | | | | | | | |
| Performance |
- | high performance | - | | | | | | | | |
| Application | semi-gloss | | | | | | | | |
| Measuring Area (mm) | 9 x 15 mm | | | | | | | | |
| Measuring Area (in) | 0.35 x 0.6 in | | | | | | | | |
| Distance to Surface | contact | non contact | | | | | | | | |
Gloss Measurement | | | | | | | | |
| Measuring Range | 0 - 1000 GU | | | | | | | | |
| Repeatability | 0 - 100 GU: ± 0.2 GU
100 - 2000 GU: ± 0.2 % | 0 - 20 GU: ± 0.1 GU
20 - 100 GU: ± 0.2 GU
100 - 2000 GU: ± 0.2 % | 0 - 100 GU: ± 0.2 GU
100 - 2000 GU: ± 0.2 % | | | | | | | | |
| Reproducibility | 0 - 100 GU: ± 0.5 GU
100 - 2000 GU: ± 0.5 % | 0 - 20 GU: ± 0.2 GU
20 - 100 GU: ± 0.5 GU100 - 2000 GU: ± 0.5 % | 0 - 100 GU: ± 0.5 GU
100 - 2000 GU: ± 0.5 % | | | | | | | | |
| Spectral sensitivity | CIE standard observer for illuminant CIE-C | | | | | | | | |
| General | | | | | | | | |
| Measuring time | 0.5 seconds/geometry | | | | | | | | |
| Memory |
999 readings with date and time | | | | | | | | |
| Interface |
USB | | | | | | | | |
| Languages |
English French German Italian Spanish | | | | | | | | |
| Power supply | one 1.5V AA Alkaline Battery, or via USB port | | | | | | | | |
| Battery Capacity | 4,000 readings | | | | | | | | |
| Weight (kg) | 0.4 kg | | | | | | | | |
| Weight (lbs) | 0.9 lb | | | | | | | | |
| Operating temperature (°C) | 15 - 40 °C | | | | | | | | |
| Operating temperature (°F) | 60 - 104 °F | | | | | | | | |
| Relative humidity | up to 85 %, non-condensing | | | | | | | | |
| Dimensions: L x W x H (cm) | 15.5 x 4.8 x 7.3 cm | | | | | | | | |
| Dimensions: L x W x H (in) | 6.1 x 1.9 x 2.9 in | | | | | | | | |
