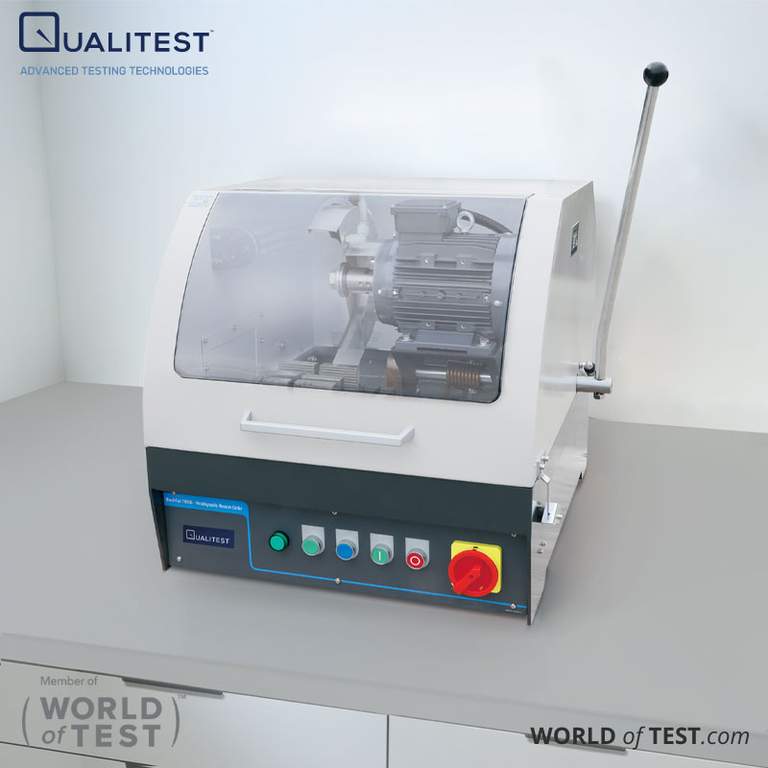

Metallographic Abrasive Cutter - QualiCut™ 1100D

Metallographic Abrasive Cutter - QualiCut™ 1100D is designed for precise cutting of both metallic and non-metallic materials to prepare samples for metallographic and petrographic analysis. It features an integrated cooling system that helps prevent overheating by using a dedicated cooling fluid. The cutter is user-friendly, making it a reliable choice for sample preparation in industrial facilities, research centers, and academic laboratories.

Metallography Abrasive Cutter – Metallographic Abrasive Cutting Machine

Metallographic Abrasive Cutter - QualiCut™ 1100D Technical Specifications

ModelQualiCut™ 1100D
Input voltage380V/50HZ/three phase
Cutting power3KW
Spindle rotation2800r/min
MAX cutting diameterΦ100mm
Cutting wheel sizeΦ350×2.5×32mm
Cutting axisOnly manual Z axis, NO Y,X axis
Table dimension285×230mm (forward to back × left to right)
Dimension690mm×790mm×800mm
Net weight98kg
Pump & tank60L, 570×440×590mm (L×W×H) including water pump
The coolant flow rate50L/min
Cutting chamber insidePowerful LED light
T-slots on the cutting table12mm
Touch pad control panelNo, button control
Operation typeManual
Optional accessoriesCabinet / Schneider safety lock / filter type water tank
