Metallography Abrasive Cutter – Metallographic Abrasive Cutting Machine

Metallographic Abrasive Cutter - QualiCut-180D
Request A Quote
Parent Product
Abrasive Cutting Machines for Metallography - QualiCut™ Series
View PDF

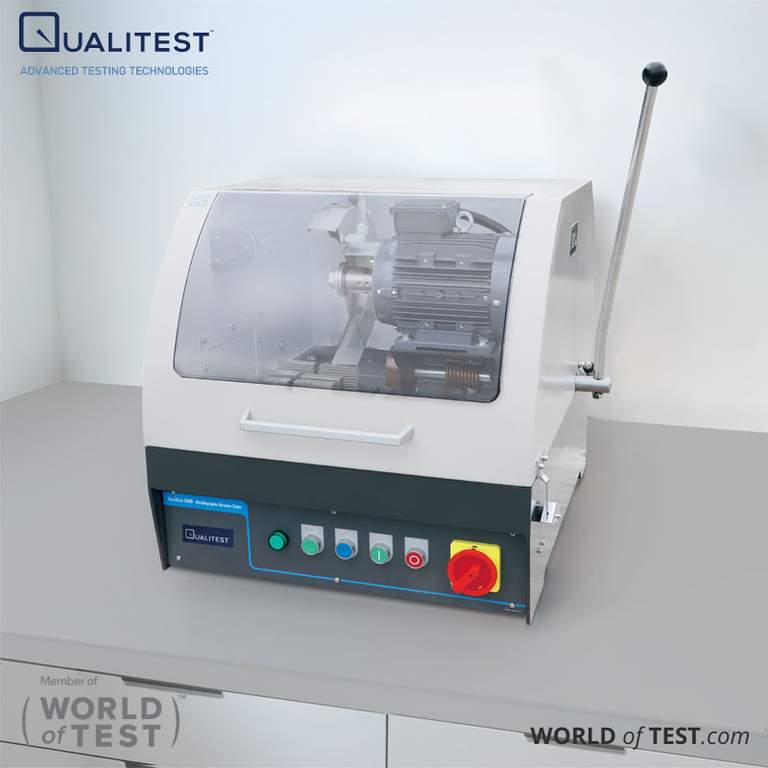

Metallographic Abrasive Cutter - QualiCut-180D

Metallographic Abrasive Cutter - QualiCut-180D is designed for precision cutting of both metal and non-metal materials to prepare samples for metallographic and petrographic analysis. It features a built-in cooling system that, when used with the appropriate coolant, helps prevent overheating during operation. The machine is user-friendly and well-suited for sample preparation in factories, research facilities, and academic laboratories.

Metallography Abrasive Cutter – Metallographic Abrasive Cutting Machine

Metallographic Abrasive Cutter - QualiCut-180D Technical Specifications

ModelQualiCut-180D
Input voltage380V/50HZ/three phase
Cutting power3KW
Spindle rotation2800r/min
MAX cutting diameterΦ80mm
Cutting wheel sizeΦ250×2×32mm
Cutting axisOnly manual Z axis, NO Y,X axis
Table dimension285×230mm (forward to back × left to right)
Dimension690mm×740mm×670mm
Net weight82kg
Pump & tank60L, 570×440×590mm (L×W×H) including water pump
Coolant flow rate50L/min
Cutting chamber insidePowerful LED light
T-slots on the cutting table12mm
Touch pad control panelNo, button control
Operation typeManual
Optional accessoriesCabinet / Schneider safety lock / filter type water tank
