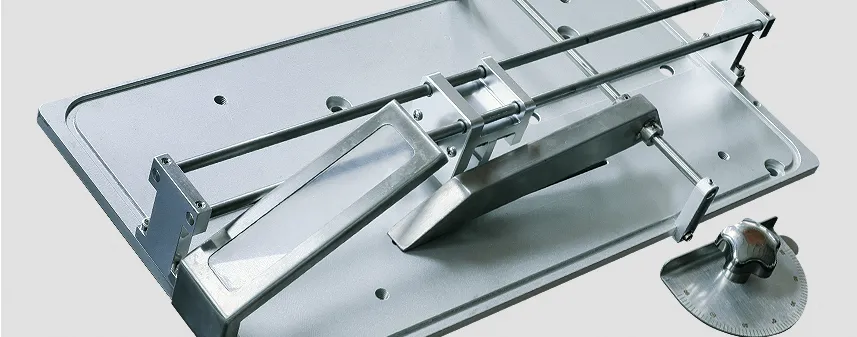

 | 1. Optional Push-Type Cutting Platform
An optional push-type cutting platform allows efficient push-cutting or trimming of the workpiece once installed. |
 | 2. Automatic Stop After Cutting
During gravity-assisted cutting, the machine automatically shuts down once the process is complete, preventing potential damage to the workpiece and machine components. |

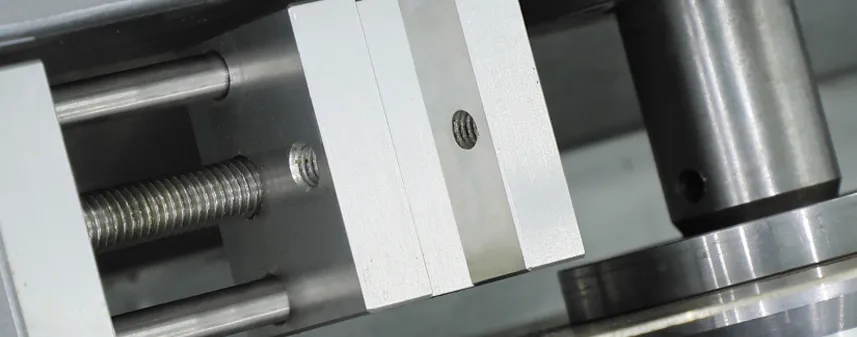

 | 3. Six Standard Clamps
The cutter comes equipped with six types of standard clamps. Depending on the material and shape of the workpiece, the appropriate clamp can be selected to ensure secure positioning. These standard clamps meet the requirements for most workpieces. |

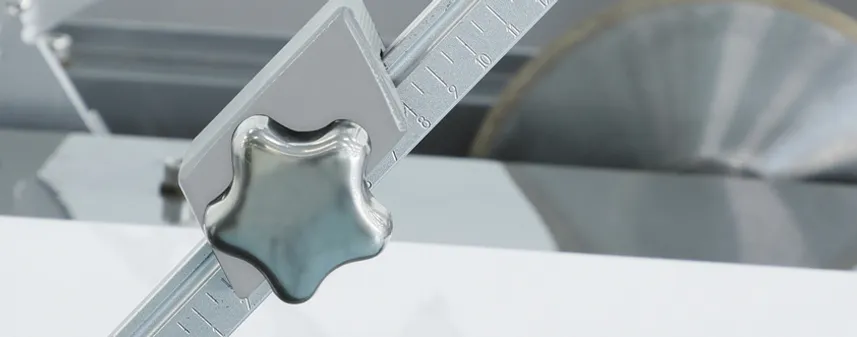

 | 4. Weight Adjustment with Scale
Adjustable front and rear weights allow precise control of cutting pressure based on workpiece characteristics. The scale on the weight rod ensures accurate positioning. |

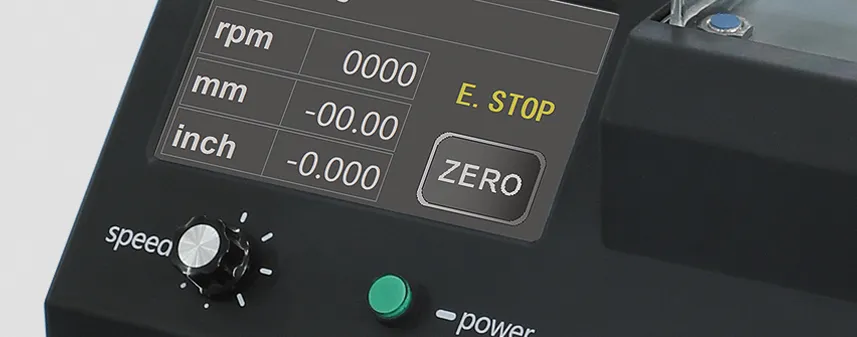

 | 5. Stepless Speed Control
Features infinitely variable speed adjustment, with spindle speeds ranging from 150 to 2000 rpm for optimal cutting performance. |

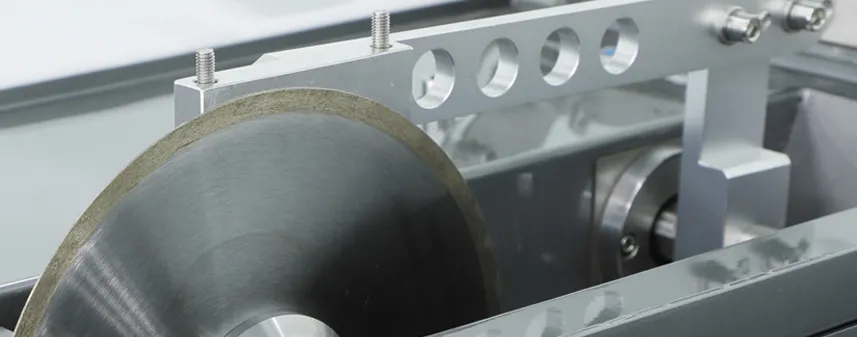

 | 6. Trimming and Clamping Device
Includes a trimming kit for sharpening the cutting disc, which also functions as a holder for short-stroke manual cutting. |

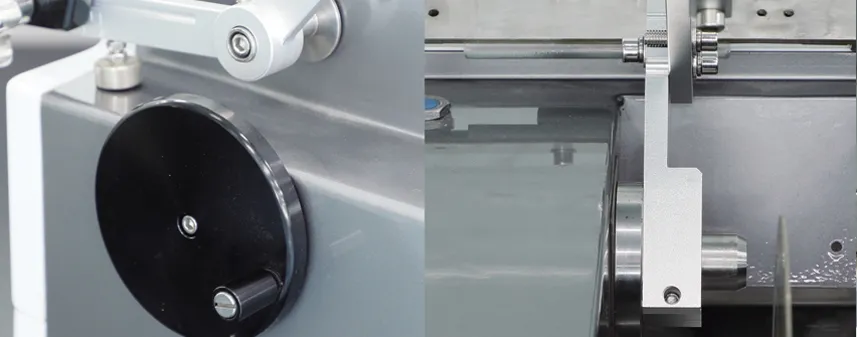

 | 7. Transverse Shift with Adjustable Length and Thickness
The handwheel allows side-to-side adjustment of the rocker arm, enabling precise control of cutting length or thickness. Real-time display shows lateral movement, with a 40 mm stroke and 0.01 mm accuracy. |

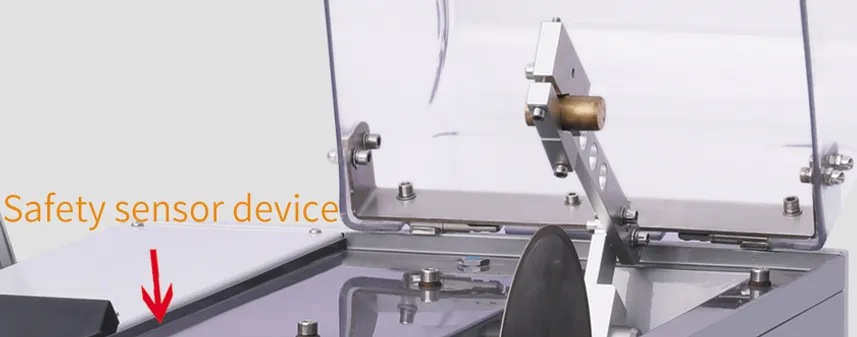

 | 8. Safety Transparent Protective Cover with Damping
A panoramic transparent cover provides clear visibility while preventing liquid splashes and ensuring operator safety. The machine automatically stops when the cover is opened. Equipped with a damping mechanism, the cover can remain securely in place at any angle. |
