QM Single Column Universal Testing Machines (Intermediate M1F Controller)
QM-Series Single Column M1F UTMs feature intermediate controllers offering smarter operation and higher efficiency, with real-time data recording and export capabilities.

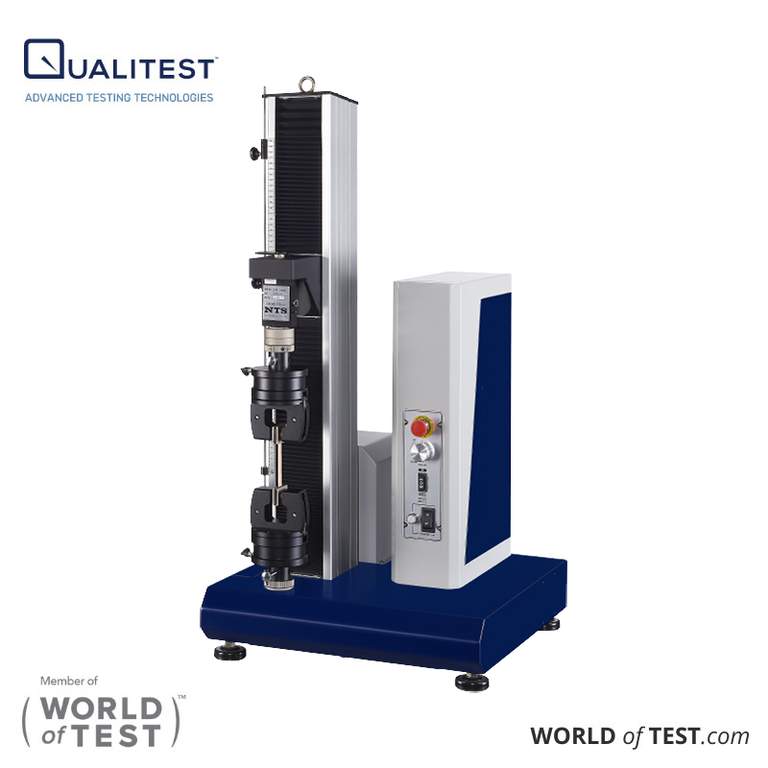

QM-2L-M1F Extended Height 2kN Universal Testing Machine
 | Universal Tensile Tester features a servo motor and ball screw, making it ideal for tests requiring capacities below 2kN. The test stroke is adjustable to accommodate samples of varying dimensions, and a range of grips is available to suit different test types. |
The M1F special test software for the tensile tester is compatible with Windows and supports a variety of functions, including tensile (compression) force testing, bending tests, peeling tests, and maintaining tension (compression). The software is user-friendly and offers multiple language options, as well as choices between metric and imperial units. It provides real-time graph displays, comprehensive test analysis, report generation, and options for detailed analysis or archiving once testing is complete. This tensile testing machine can also be used with a display for stand-alone operation, enabling the quick capture of effective test data.
Main Features
- The system supports auto-identification of load cell parameters and displacement accessory parameters.
- Includes an independent electronic control box.
- The jog controller allows for precise displacement adjustments, making calibration more convenient.
- There are no specific PC requirements for connecting the software, simplifying PC maintenance.
- Up to 10 speed stages can be set within a single test.
QM-2M-M1F Medium Height 2kN Universal Testing Machine
 | The Universal Material Testing Machine QM-2M-M1F is a compact, single-column, tabletop unit that takes up minimal space. Equipped with a servo motor and ball screw, this tensile testing machine is ideal for tests requiring capacities below 2kN. The test stroke can be adjusted to fit samples of different sizes, and a variety of grips, such as pneumatic grips, vice grips, and yarn grips, are available for a wide range of testing needs. |
The M1F special test software is compatible with the Windows system and supports various functions, including tensile (compression) force testing, bending tests, and peeling tests. The software is designed for ease of use, offering multiple language options, a choice between metric and imperial units, and real-time graph displays. It provides comprehensive test analysis data, report generation, and options for detailed analysis or archiving once the testing is complete. Additionally, this tester can be outfitted with a display for stand-alone operation, enabling the quick and efficient capture of test data.
Main Features
- Automatically identifies load cell parameters.
- Automatically identifies displacement accessory parameters.
- The jog controller allows for precise displacement adjustments, making calibration more convenient.
- No specific PC requirements for connecting the software, making PC maintenance easy.
- Supports up to 10 speed stages in a single test.
QM-5S-M1F Short 5kN Universal Testing Machine
 | Universal Material Testing Machine QM-5S-M1F series is compact and space-efficient. This universal tensile tester, equipped with a servo motor and ball screw, is designed for tests requiring capacities below 5kN. The test stroke can be adjusted to accommodate samples of various sizes, and a range of grips is available to suit different testing requirements. |
The M1F special test software, compatible with the Windows system, supports a variety of functions, including tensile (compression) force testing, bending tests, peeling tests, and holding tension (compression). The software is user-friendly, offering multiple language options, metric and imperial unit choices, real-time graph displays, and comprehensive test analysis data. It also includes features for report generation, detailed analysis, and archiving after tests are completed. Additionally, this tensile testing machine can be equipped with a display for stand-alone operation, enabling quick and efficient data capture.
Main Features
Servo-Powered Type
The use of a servo motor drive enhances both speed range and accuracy, allowing for more versatile machine control, such as multi-step testing. The machine can be operated via the display panel for basic testing or through PC software for comprehensive data analysis, depending on the specific needs of the user.
Precision Jog Controller
The precision jog controller module enables users to make fine adjustments to the fixture position, which is also useful for precise machine calibration. This feature provides a safe and convenient control method for the operator. The jog controller's minimum adjustment range can be set between 0.1-20µm.
Multi-Step Testing
The dedicated software allows for up to 10 steps of test conditions in a single test. Each step can be customized with different speeds, directions, and stop conditions to suit specific testing needs. Additionally, it supports constant tensile/compression test settings within a short time frame. The software includes built-in templates for various standard test conditions, helping users learn quickly and reduce setup time.
Accessories
| Display Panel |
|---|
- Features a 7" color TFT touch display panel.
- Supports English, and other languages.
- Displays force, pressure, displacement, and time.
- Allows test condition settings, including test speed, direction, auto-return, and stop at the break point.
- Can analyze maximum force, interval force, force at the break point, and more.
- Provides multiple stopping point settings based on force, displacement, time, and elongation.
- Supports over-travel, overload, and overtime stop protection settings.
- Can save up to 50 test results, with support for saving data to a USB drive.
- Offers the ability to restore the machine to factory settings.
- Allows calibration in stand-alone mode.
- Supports switching between Metric and Imperial units.
|  |
| QM-L-Ext Long Extensometer |
| The QM-L-Ext Long Extensometer is designed for measuring elongation greater than 20% in materials such as rubber, plastic, PE, fabric, and webbing, which require high-elongation measurement accessories. The specimen is typically shaped like a dumbbell. The extensometer can be linked with the testing machine and automatically detects the deformation of the test piece during testing. |  |
| QM-S-Ext Clip-on Extensometer |
| The QM-S-Ext Clip-on Extensometer is capable of measuring the deformation of materials such as metal and hard plastic with less than 100% elongation. During testing, it accurately measures the complete deformation rate without needing to be removed. For specimens with longer gauge lengths or higher elongation rates, customized longer extensometers are also available. |  |
Software functions
- The data sampling rate is up to 400 Hz.
- Controlled by mouse, keyboard, and the up/down button on the machine for quick grip position adjustment.
- Requires a Windows system.
- Available languages include English and other.
- Operation Mode: TCP/IP two-way transmission for PC connection.
- Can import and display multiple test data simultaneously.
- Supports switching between Metric and Imperial units.
- Provides a flexible table for data analysis.
- Allows naming of data results and the creation of user-defined formulas.
- Data can be displayed in table format, graph format, or both.
- Data processing options include saving, importing, listing, and statistical comparison.
- The X-Y axis of the graph is adjustable, with options for curve markers, interval markers, slope adjustments, and more.
- Supports tensile, compression, bending, spring, and other tests.
- Machine protection includes support for over-travel, overload, and overtime stop conditions.
- Supports various test patterns, including constant tensile (compression) and 10-stage settings.
- Specimen modular design allows for easy and quick specimen information setup.
- Test condition modular design helps reduce human error in settings.
- Supports upper and lower limits for data selection to focus on key information.
- Supports multiple I/O ports for additional test functions.
|  |
