Rebar Locator QualiRL-II

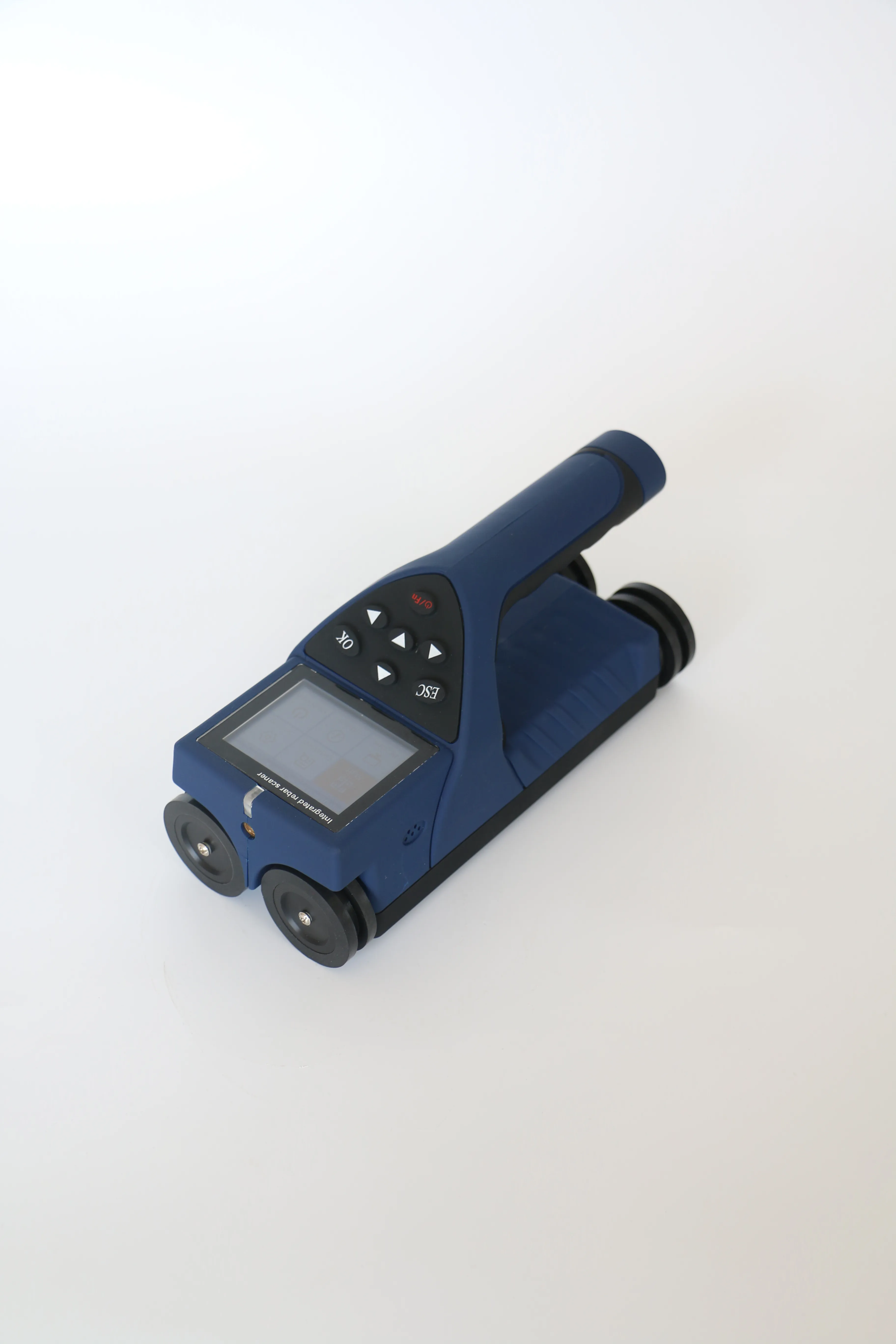

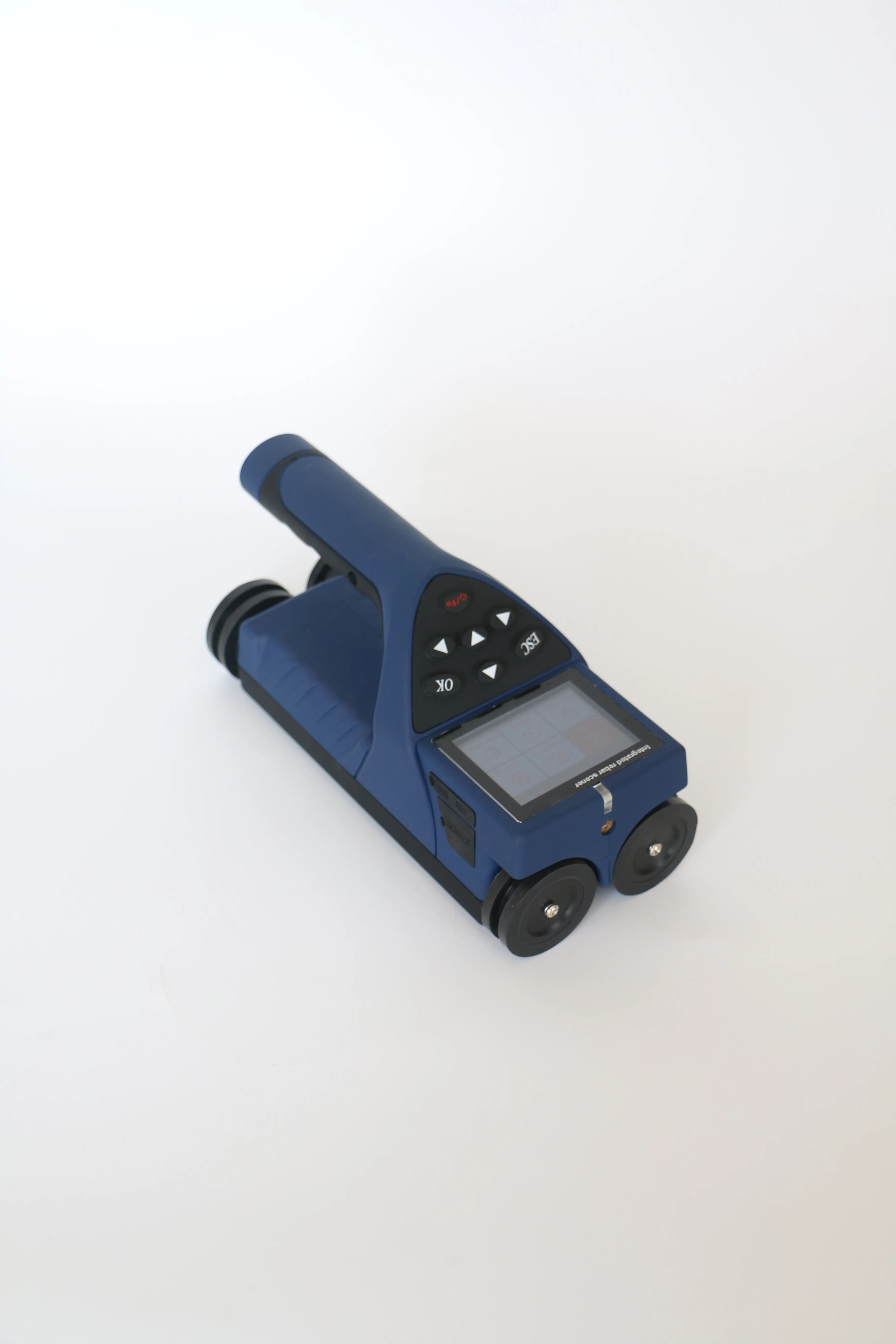

Rebar Locator QualiRL-II is a professional handheld scanner designed to accurately detect the position, spacing, and depth of rebar in concrete structures. With an investigation depth of up to 200 mm, it delivers reliable results through advanced peak scanning, laser positioning, and automatic bar spacing readout. Equipped with user-friendly software and computer connectivity, it allows quick reporting and printing for efficient construction inspections, drilling, coring, and structural analysis.

Rebar Locator QualiRL-IIRebar Locator QualiRL-II
Rebar Locator QualiRL-IIRebar Locator QualiRL-II
Rebar Locator QualiRL-II

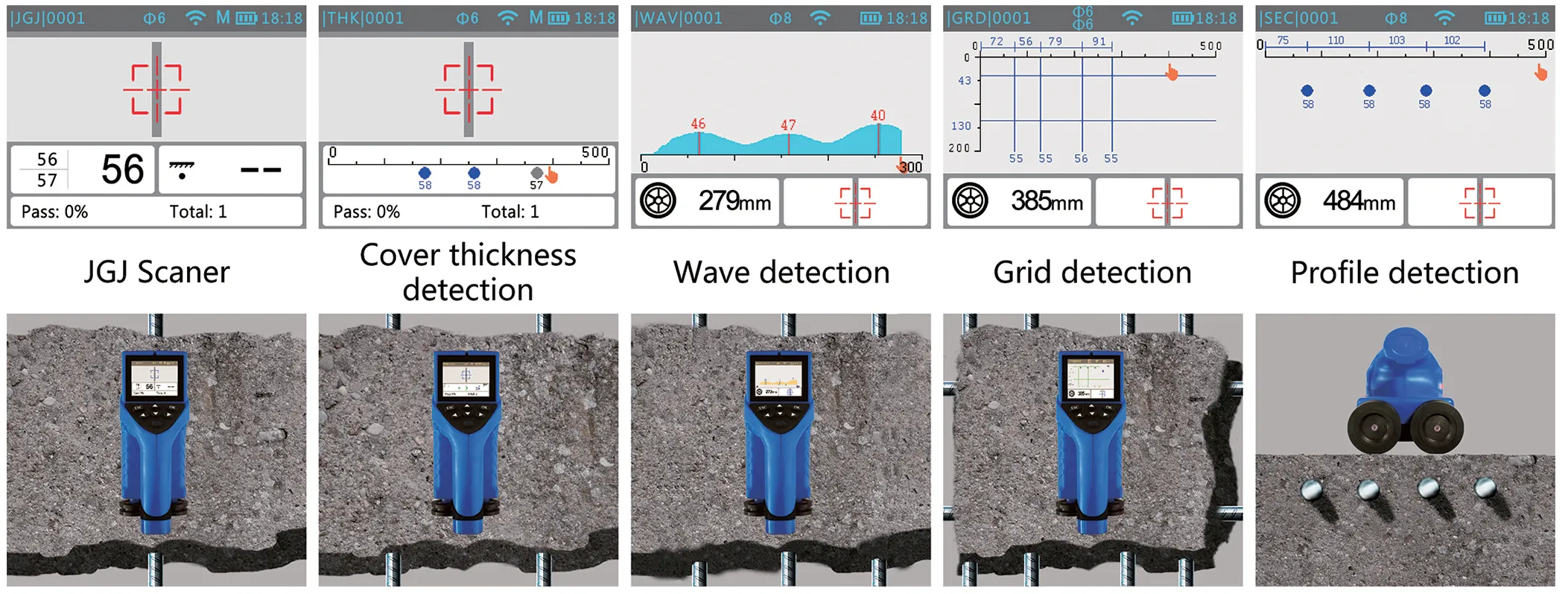

Rebar Locator QualiRL-II Features

  • Investigation depth up to 200 mm
  • Single multi-purpose probe
  • Peak scanning function
  • Automatic detection of rebar positions
  • Laser positioning for accuracy
  • Automatic bar spacing readout
  • Complete software with computer connectivity for automatic reporting and printing
  • Grid scanning of rebar positions
  • Profile scanning of rebar layout

Rebar Locator QualiRL-II Technical Specifications

Bar diameter application range (mm)Φ6 - 50
Maximum permissible error of bar diameter≤±1
Cover thickness measuring range
The first measuring range (mm)2 - 100
The second measuring range (mm)2 - 200
The maximum error of cover thickness
The first measuring range (mm)The second measuring range (mm)
1 - 595 - 80≤±1
60 - 9080 - 120≤±2
90 - 105121 - 200≤±4

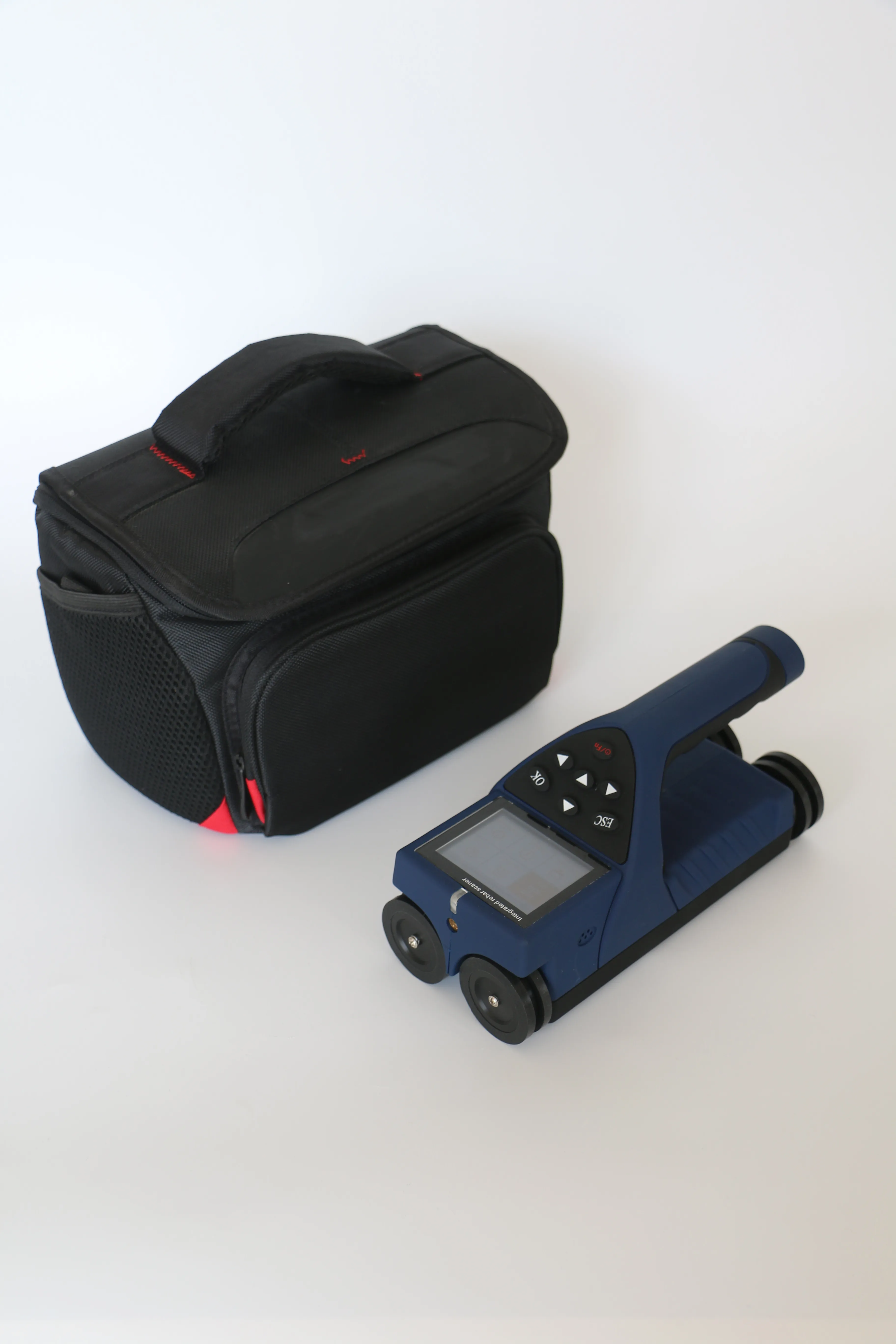

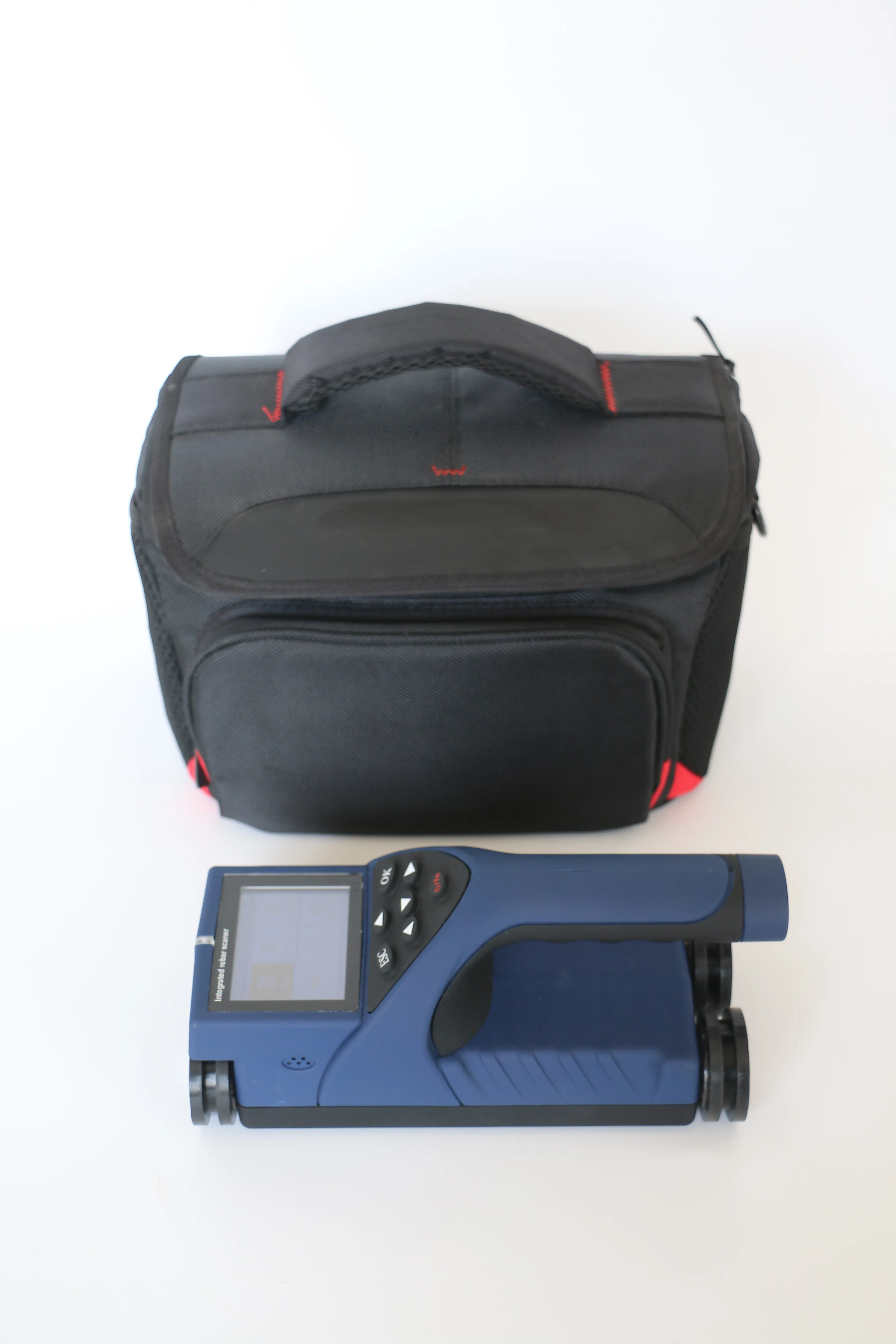

Standard Delivery

  • Main unit with software – 1
  • USB connecting cable – 1
  • Power charger – 1
  • Manual – 1
  • Warranty card – 1
  • Carrying case – 1
