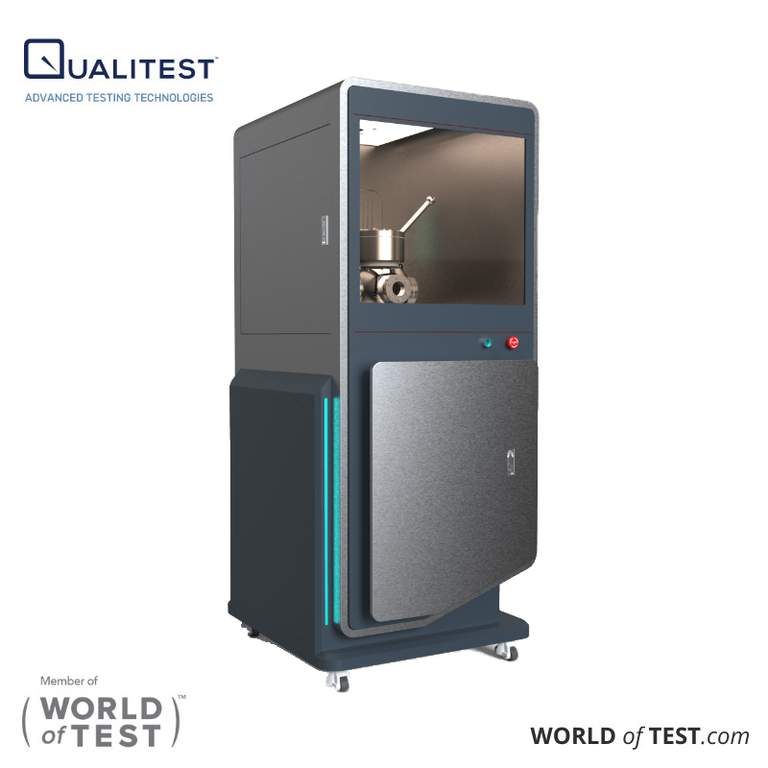

Spherical Explosion Pressure Tester

Spherical Explosion Pressure Tester is designed for testing single or mixed flammable gases. It measures key parameters including maximum explosion pressure, explosion index, rate of pressure rise, and explosive limit oxygen concentration.

Spherical Explosion Pressure Tester

Test Object: Single or mixed flammable gases
Test Parameters: Measurement of maximum explosion pressure, explosion index, rate of
pressure rise, and explosive limit oxygen concentration.

Spherical Explosion Pressure Tester Features

1. Spherical pressure-resistant test container with exceptional high-pressure capacity.
2. High-frequency data sampling system for precise measurement of parameters such as maximum explosion pressure.
3. Magnetic stirring device for thorough mixing of flammable gas mixtures.
4. Temperature control device for accurate regulation of gas temperature prior to testing.
5. Integrated design with a complete set of installations in a floor-standing, movable cabinet.
6. Computerized automation control via testing software.

Spherical Explosion Pressure Tester Technical Specifications

Explosion ContainerSpherical, double-layered, capacity greater than 5L
Container Pressure ResistanceDesign pressure of 3.0 MPa at 25°C
Sphere Material316L stainless steel
Explosion Pressure SensorMeasurement range of 0-30 bar
Explosion Pressure Detection Channels2 channels
Explosion Pressure Data AcquisitionSampling frequency of 10 kHz
Ignition MethodChemical ignition (customer-provided) and electrostatic ignition (15 kV, 0.5s)
Gas Distribution MethodPartial pressure gas distribution
Stirrer20-800 rpm
Temperature Control25°C ± 0.2°C
Observation WindowArmored glass, diameter of 40mm
Equipment Dimensions750mm (width) x 1880mm (height) x 940mm (depth)
Equipment Weight285 KG
Power Requirement220V, 50Hz, 500W (110V is also available)
Gas RequirementCompressed air from an air compressor (oil-free and dry)
Environmental Temperature10°C to 35°C
Auxiliary GasCompressed air from an air compressor.
