Super-High-Energy Impact Mechanics & 8 mm Striker Behavior
Charpy V-notch testing in the 175 J to 225 J range involves severe plastic deformation where striker nose geometry directly alters absorbed energy readings (KV). At lower impact levels, striker radius effects remain imperceptible. Once impact forces exceed 150 Joules, the 8 mm striker (ASTM style) and the 2 mm striker (ISO style) produce divergent energy values due to physical contact interactions with heavily deformed metal.
Contact Mechanics & Corner Friction

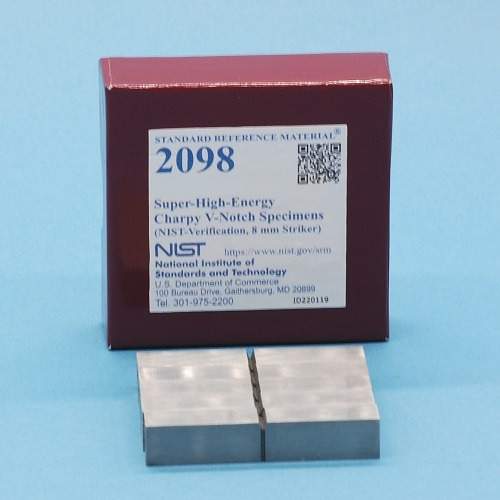

When an 8 mm striker hits a high-ductility steel specimen (such as Qualitest SKU 2098 machined from 9310 alloy steel), the metal bends and flares out sideways, forming prominent shear lips.
- Dual Corner Transitions: The 8 mm striker features two 0.25 mm radius corners where the contact edge transitions into the lateral striker walls. As the steel specimen flares outward during severe deformation, these 0.25 mm corners press against the flaring shear lips, introducing secondary frictional drag.
- Absence in 2 mm Strikers: The 2 mm striker lacks these lateral transition corners, allowing the narrower nose to punch through without secondary edge contact.
Measurement Variance & Energy Offset
- Absorbed Energy Offset: At 200 Joules, the 8 mm striker records systematically higher absorbed energy, typically ~10 Joules higher than a 2 mm striker on identical specimen lots.
- Data Variance: The 2 mm striker exhibits standard deviations roughly three times higher than the 8 mm striker at 200 Joules. The 8 mm design provides lower measurement variance and higher repeatability during verification testing.
| Feature / Parameter | 8 mm Radius Striker ("ASTM Style") | 2 mm Radius Striker ("ISO Style") | Physical & Methodological Effect |
|---|
| Governing Standard | ASTM E23 / ISO 148-2 | ISO 148-1 | Primary standard governing striker selection |
| Divergence Threshold | 175 J to 225 J | Below 150 J (negligible effect) | Energy boundary where striker geometry alters readings |
| Energy Value @ 200 J | Systematically higher (~10 J) | Baseline lower reading | Result of secondary friction from 0.25 mm side corners |
| Standard Deviation @ 200 J | Lower (higher repeatability) | ~3× higher variance | Data consistency during indirect verification runs |
| Corner Geometry | Dual 0.25 mm transition corners | None | Secondary contact interface with specimen shear lips |
Indirect Verification Protocol & Acceptance Criteria
Indirect machine verification under ASTM E23 and ISO 148-2 evaluates pendulum alignment, windage, and energy losses using certified reference specimens with known absorbed energy baseline values.
Verification Testing Method
- Lot Count Requirement: Test a complete set of 5 to 7 reference specimens (Qualitest SKU 2098), reflecting the statistical lot size (nSS) established by the Charpy Laboratory in Boulder, Colorado.
- Thermal Conditioning: Maintain specimen temperature at 21°C ± 3°C prior to impact.
- Consecutive Execution: Fracture all specimens consecutively in a single uninterrupted testing session to prevent environmental or operational variations.
- Acceptance Limits: A pendulum machine passes verification if its average absorbed energy falls within ±1.4 Joules or ±5% of the certified reference value (whichever threshold is larger).
- Striker-Matched Traceability: Because 8 mm and 2 mm strikers yield different absorbed energy values at super-high energy levels, certification values must explicitly match the 8 mm striker geometry mounted on the testing frame.
- Post-Test Evaluation: Document specimen shear fracture appearance and submit digital photographs alongside the verification questionnaire for certified lot evaluation. Unopened SKU 2098 reference sets retain indefinite shelf-life validity prior to conditioning.
Specimen Geometry & Dynamic Fracture Mechanics
Absorbed impact energy during V-notch fracture is governed by specimen dimensions and notch stress field mechanics:
- Ligament Depth: The relationship between remaining ligament depth behind the V-notch and absorbed impact energy is quadratic. Small dimensional shifts yield non-linear energy variations.
- Ligament Thickness: Specimen thickness exhibits a linear correlation with total absorbed impact energy.
- Specimen Width: Correlates linearly with both peak dynamic force (Fmax) and total energy absorption (KV).
- Side Grooving: Adding side grooves suppresses plane-stress conditions at the surface, eliminating shear lip formation and substantially reducing total measured impact energy.
- Impact Velocity: Pendulum velocity variations within standard limits (5.0 m/s to 5.5 m/s) produce practically imperceptible shifts in absorbed energy across structural steels.
Instrumented 8 mm Striker Theory & Force Analysis
Instrumented Charpy testing replaces single absorbed energy values with complete force-time (F-t) dynamic signatures, capturing yield transition, peak dynamic force, and ductile fracture progression.
Force (kN)
^
| /| <-- Peak Dynamic Force (F_max)
| / |
| Initial / | \
| Spike / | \ General Yield & Plastic Deformation
| _/\_ | \
| / \ | \ Ductile / Brittle Fracture Propagation
| / \ | \________
|__/________\_ |____________\___________> Time (ms)
0 t_transition t_fracture
- Strain Gauge Placement: Positioning strain gauges 17 mm behind the striking edge on an 8 mm striker measuring 12 mm high minimizes sensitivity to contact pressure distribution. This renders static calibration on universal testing machines sufficient for dynamic force measurements.
- Dynamic Impulse Calibration: High-frequency force response calibration utilizes short-duration (~10 µs) force pulses from fracturing brittle ceramic blocks to establish the striker frequency response function without machine frame ringing artifacts.
- Contact Stiffness Mechanics: Hertzian contact stiffness between the 8 mm striker corners and the 9310 steel specimen determines initial dynamic inertial load spikes. Transition time (ttransition), the point at which inertial oscillations decay and uniform notch stress fields dominate, decreases with higher yield strength materials.
