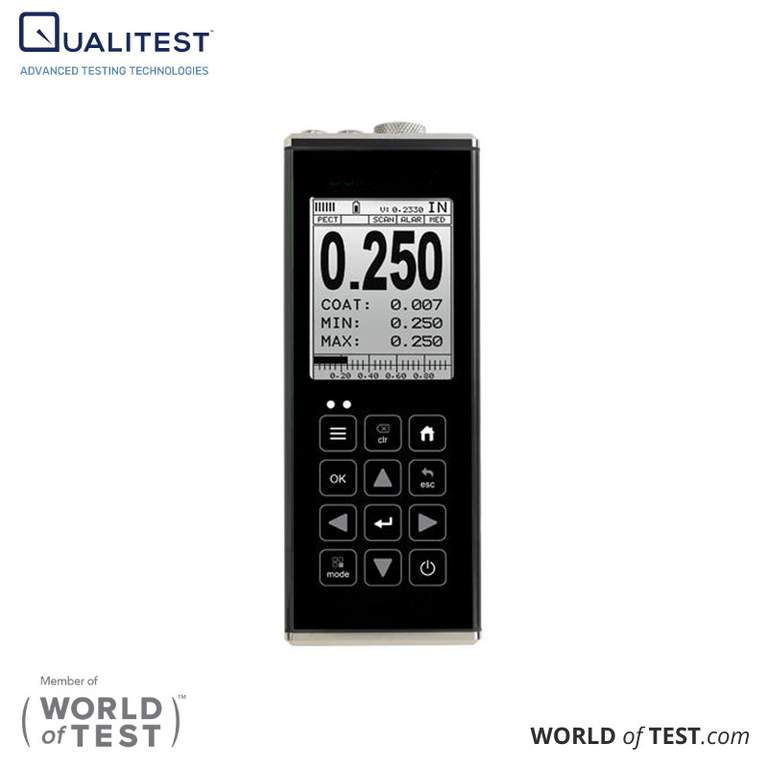

| Size: | Width (2.5in/63.5mm)
Height (6.5 in/165mm)
Depth (1.24 in/31.5mm) |
| Weight: | 13.5 ounces (with batteries). |
| Keyboard: | Membrane switch pad with twelve tactile keys. |
| Operating Temperature: | 14 to 140°F (-10°C to 60°C) |
| Case: | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed). |
| Data Output: | USB-C port. Windows® PC interface software. |
| Display: | 1/8in VGA grayscale display (240 x 160 pixels). Viewable area 2.4 x 1.8in (62 x 45.7mm). EL backlit (on/off/auto). |
| ULTRASONIC SPECIFICATION |
| Measurement Modes: | Coating Off: Pulse-Echo (P-E)
Coating On: Pulse-Echo Coating (PECT)
Temp Comp: Pulse-Echo Temperature Compensation (PETP)
Thru-Paint: Echo-Echo (E-E)
Thru-Paint Verify: Echo-Echo Verify (E-EV)
Coating Only: Coating (CT) |
| Pulser: | Dual square wave pulsers. |
| Receiver: | Dual receivers - manual or AGC gain control with 110dB range (limited). |
| Timing: | Precision TCXO timing with single shot 100MHz 8 bit ultra low power digitizer. |
| POWER SOURCE |
| Line power: | USB to PC or power outlet. |
| Batteries: | Three AA cells.
Alkaline - grayscale 35 hrs.
Nlead - grayscale 10 hrs.
NI-MH - grayscale 35hrs.
Power saving DIM, auto off 5 minutes.
Battery status icon. |
| TRANSDUCER |
| Transducer Types: | Dual Element (1 to 10MHz).
Locking quick disconnect "00" LEMO connectors.
Standard 4 foot cable.
Custom transducers and cable lengths available for special applications. |
| MEASURING |
| Pulse-Echo Mode (P-E): | (Pit & Flaw Detection) measures from 0.025 to 48.0 inches (0.63 to 1219.2mm). |
| Pulse-Echo Coating Mode (PECT): | (Material, Coating, Pit & Flaw Detection); Material: 0.025 to 48.0 inches (0.63 to 1219.2mm); Coating: 0.001 to 0.100 inches (0.01 to 2.54mm). |
| Pulse-Echo Temp Comp Mode (PETP): | (Pit & Flaw Detection) Auto temperature compensation - measures from 0.025 to 48.0 inches (0.63 to 1219.2mm). |
| Echo-Echo Mode (E-E): | (Thru Paint & Coatings) measures from 0.100 to 6.0 inches (2.54 to 152.4mm). Range will vary +/- depending on the coating. |
| Echo-Echo Verify Mode (E-EV): | (Thru Paint & Coatings) measures from 0.100 to 1.0 inches (2.54 to 25.4mm). Range will vary +/- depending on the coating. |
| Coating Only Mode (CT): | (Coating Thickness) Measures from 0.0005 to 0.100 inches (0.0127 to 2.54mm). Range will vary +/- depending on the coating. |
| Resolution: | +/- 0.001 inches (0.01mm) |
| Velocity Range: | 0.0122 to 0.7300 inches/μs (309.88 to 18542 meters/sec) |
| Calibration: | Single and Two point calibration option for material & coating, or selection of basic material types. |
| Units: | English & Metric |
| DISPLAY |
| Large Digits: | Standard thickness view. Digit Height: 0.700 inches (17.78mm). |
| B-Scan: | Time based cross section view. Display speed variable (10 to 200 readings per second). |
| Scan Bar Thickness: | Speed 33Hz. Viewable in B-Scan and Large Digit views. |
| Repeatability Bar Graph: | Bar graph indicates stability of reading. |
| Feature Status Bar: | Indicates features currently active. |
| MEMORY (CMX1-DL) |
| Log Formats: | Grid (Alpha Numeric), or Sequential (Auto Identifier). |
| Capacity: | 4 Gb internal memory. |
| Screen Capture: | Bitmap graphic capture for quick documentation (.tif). OBSTRUCT to indicate inaccessible locations. |
| CONNECTIONS |
| Output: | Direct USB-C 1.1 PC connectivity. |
| Transducer Connectors: | Two LEMO 00 connectors. |
| CERTIFICATION |
| Calibration: | Factory calibration traceable to NIST & MILSTD-45662A. |
| WARRANTY |
| Warranty Period: | 2 year limited |
| REPLACEMENT |
| Replacement Models: | CMX1 replaces CMX & CG100B
CMX1-DL replaces CMX DL & CG100BDL |
