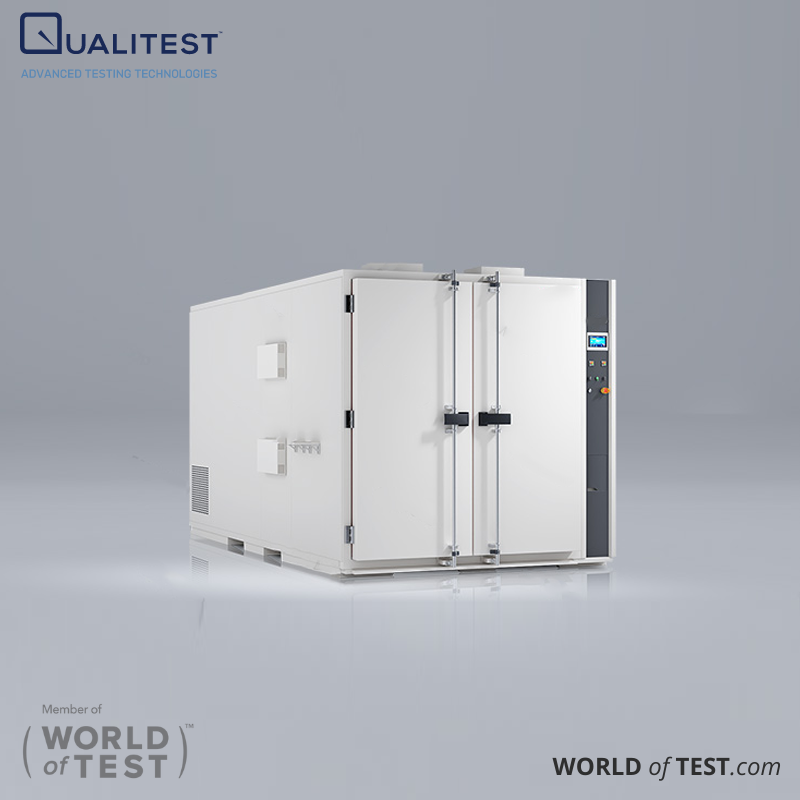

Walk-In Battery Pack Climatic Test Chamber
Walk-In Battery Pack Climatic Test Chamber is designed for testing large battery assemblies commonly found in electric vehicles, energy storage systems, and similar applications. It creates a controlled environment for evaluating battery performance under various conditions, including high and low temperatures, charge/discharge cycles, overcharging, and short circuits.

Application Fields of the Walk-In Battery Test Chamber
The explosion-proof walk-in battery test chamber features a robust steel construction and superior containment capabilities. During extreme testing or battery failures—such as internal short circuits or thermal runaway—it effectively contains shockwaves and flames, preventing them from reaching the surrounding environment and ensuring safety in laboratories or workspaces.
Key Application Areas:
- Electric Vehicle Industry: Used to assess the performance, stability, and safety of battery packs under various operating conditions.
- Energy Storage Systems: Evaluates the reliability and functionality of battery packs in large-scale energy storage applications.
- Research & Development: Ideal for the development and testing of battery materials and battery management systems.
The chamber is equipped with a high-efficiency temperature control system, enabling both high- and low-temperature testing to ensure consistent battery performance in diverse environmental conditions.

Test Standards for the Walk-In Battery Pack Test Chamber
The walk-in battery pack test chamber supports a wide range of tests, including charge/discharge cycles, fast charging, overcharging, short circuits, and thermal shock. It meets numerous international safety and performance standards, ensuring reliability and compliance.
Common Test Standards Include:
- UN 38.3: United Nations regulation for the safe transport of lithium batteries.
- IEC 62133: International standard for the safety and performance testing of rechargeable batteries, including lithium-based types.
- UL 1973: Safety and performance requirements for battery energy storage systems, issued by Underwriters Laboratories.
- SAE J2464: American standard for the testing of lithium batteries used in electric vehicles.
The chamber also complies with additional standards such as EN 60079, IEC 62233, SAE J2929, IEC 60086-4, and others, supporting a wide range of testing protocols across industries.

Control System of the Climatic Test Chambers
The Test chamber features an advanced control system designed to maintain precise testing conditions and deliver accurate, reliable data. This system enables detailed management and monitoring of all test parameters.
- Controller: Incorporates a high-performance controller, integrated control software. Select models can also include a Siemens control system. Communication ports include RS232, RS485, and Ethernet for seamless connectivity.
- Programmable Control: Allows users to create and run complex testing sequences, including heating, cooling, and constant temperature cycles. Multiple programs can be scheduled with an advanced start-time reservation feature.
- Multilingual Support: Interface options include English, and other languages.
- Remote Monitoring: Equipped with EZNET technology for real-time remote access. Users can monitor chamber status and test data from a PC or mobile device, enhancing convenience and control.
Note: Control system specifications may vary by model. Always refer to the "Environmental Test Chamber Manual" and follow all safety guidelines before operation.

Refrigeration System of the Climatic Test Chamber
The refrigeration system plays a critical role in the performance of the test chamber. Its stability directly impacts the accuracy and consistency of test results.
- Hot Gas Defrosting Technology: Qualitest Technology has developed an advanced hot gas defrosting method that injects high-temperature, high-pressure refrigerant vapor into the chamber’s heat exchanger. This process effectively prevents frost buildup on the evaporator and significantly reduces overall energy consumption.
- High-Quality Refrigeration Components: The system features components from leading global brands. Qualitest has integrated EPV and XUP series quick-opening solenoid valves designed for long-term reliability—exceeding 15 years of continuous operation. Additionally, a next-generation Danfoss AKV electronic expansion valve system is under development, offering greater efficiency, reduced noise, and improved energy savings.
- Energy-Efficient Operation: The system layout is optimized using VRF (Variable Refrigerant Flow) technology based on PID cold-end output control. This design enables energy-efficient low-temperature operation, reducing energy consumption by up to 30%.
- Modular Design: The refrigeration system uses a modular approach, which results in fewer welding points, lower failure rates, higher cooling efficiency, and simplified maintenance. This contributes to overall reliability and lower maintenance costs.
