Programmable Hi-Speed Spin Coater QualiSC™ 100PA

Programmable Hi-Speed Spin Coater QualiSC™ 100PA is a CE-certified tabletop system designed for coating small substrates up to 100 mm in diameter, with a maximum speed of 10,000 rpm. It features a precision DC servo motor that delivers accurate speed and acceleration control. Substrates can be secured with a vacuum system for thinner samples.

The unit includes an intuitive keyboard and LCD display, allowing users to program up to 12 programs with 6 segments each. Spin duration, speed, and acceleration can be conveniently set from the front control panel. All components are corrosion-resistant, ensuring compatibility with cleanroom environments.

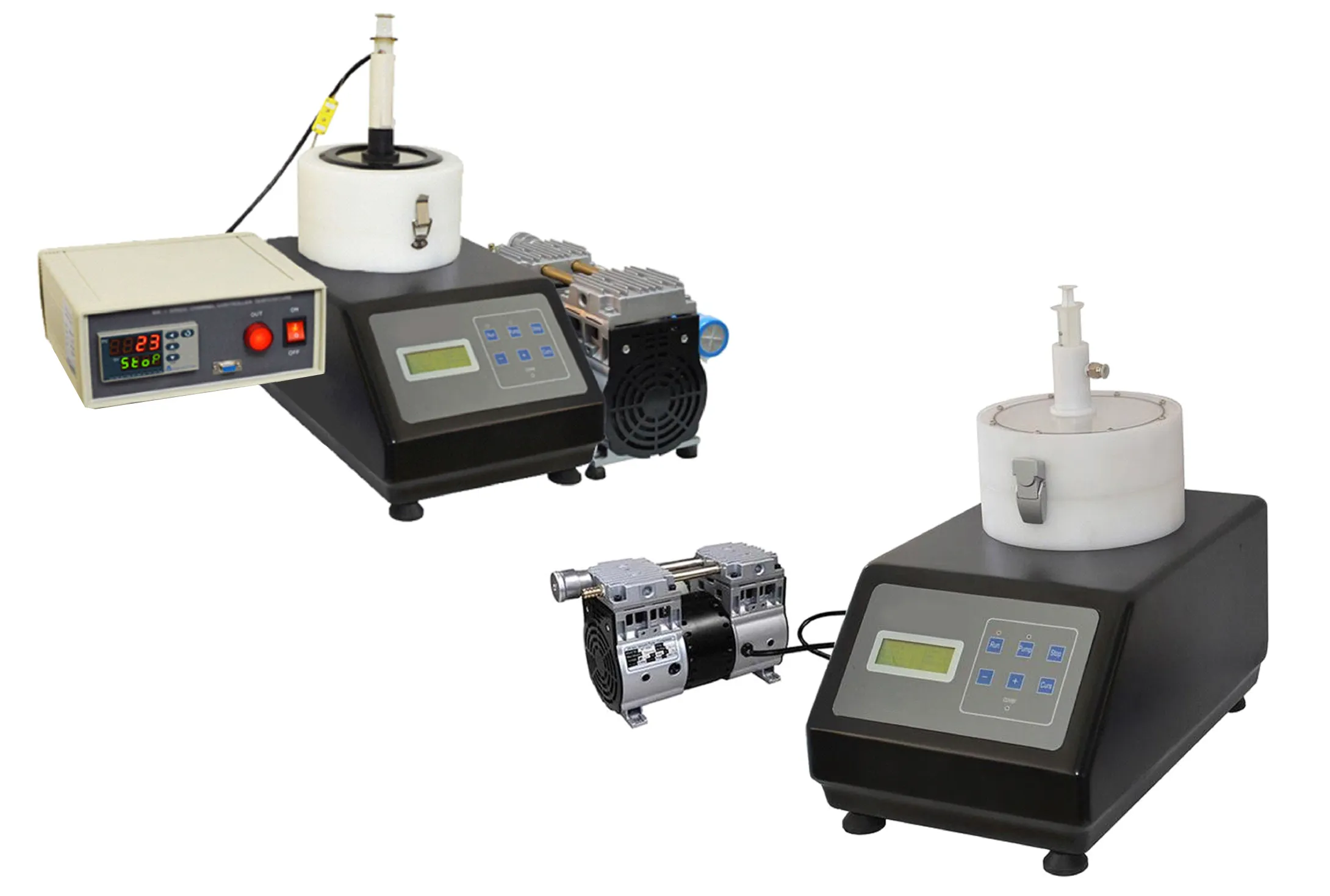

Programmable Hi-Speed Spin Coater QualiSC-100PA

Vacuum Chuck & Pump

  • Chamber size: 150 mm diameter
  • Includes two PP anti-corrosive vacuum chucks (Ø19 mm and Ø66 mm), capable of holding substrates from 5 mm up to 5 inches in diameter
  • Package includes a 120 L/min oil-free vacuum pump.

Programmable Hi-Speed Spin Coater QualiSC™ 100PA Main Features

  • Programmable spinning speed from 500 to 10,000 RPM
  • Accepts substrates from 5 mm up to 5 inches
  • Anti-corrosive PP chamber for reliable operation
  • Gas inlet port on the top cover for introducing inert gas during coating
  • Includes one 20 ml plastic syringe
  • Suitable for use with argon gas (vacuum pump must remain outside the glovebox)
  • Integrated safety interlock on the lid

Programmable Hi-Speed Spin Coater QualiSC™ 100PA Technical Specifications

ParameterSpecification

Programmable Control

DurationUp to 60 seconds
Acceleration100 - 2000 rpm/sec adjustable
Accuracy< 5%
Digital Control PanelDigital control panel can store 12 programs and each each program program has has 6 segments programmable for speeds, acceleration, and spin duration
VoltageAC 220V (transformer available for 110V operation)
Power Consumption1000 W total for oilless pump and spin coater
Gas Inlet6mm diameter gas inlet port allows customers to fill desired gas into the chamber, which can make coating under variable gas flow environment.
Liquid InjectionStandard Package: 20ml plastic syringe with needle
Dimensions (D × W × H)450mm × 280mm × 340mm
Weight20 kg (46 kg / 100 lbs with packaging)
WarrantyOne year limited with lifetime support (excludes rusting and damage due to improper storage or maintenance)
CertificationCE Certified
Standard AccessoriesVacuum chuck: 2 pcs
Center locator: 1 pc
Syringe 20ml: 1 pc
Syringe holder: 1 pc
Oil-free vacuum pump: 1 pc
Rubber tube: 1 pc
