Programmable Vacuum Chuck Spin Coater QualiSC-200

Programmable Vacuum Chuck Spin Coater QualiSC™ 200
Request A Quote
Parent Product
Spin Coaters – Precision Thin Film Coating Solutions
View PDF

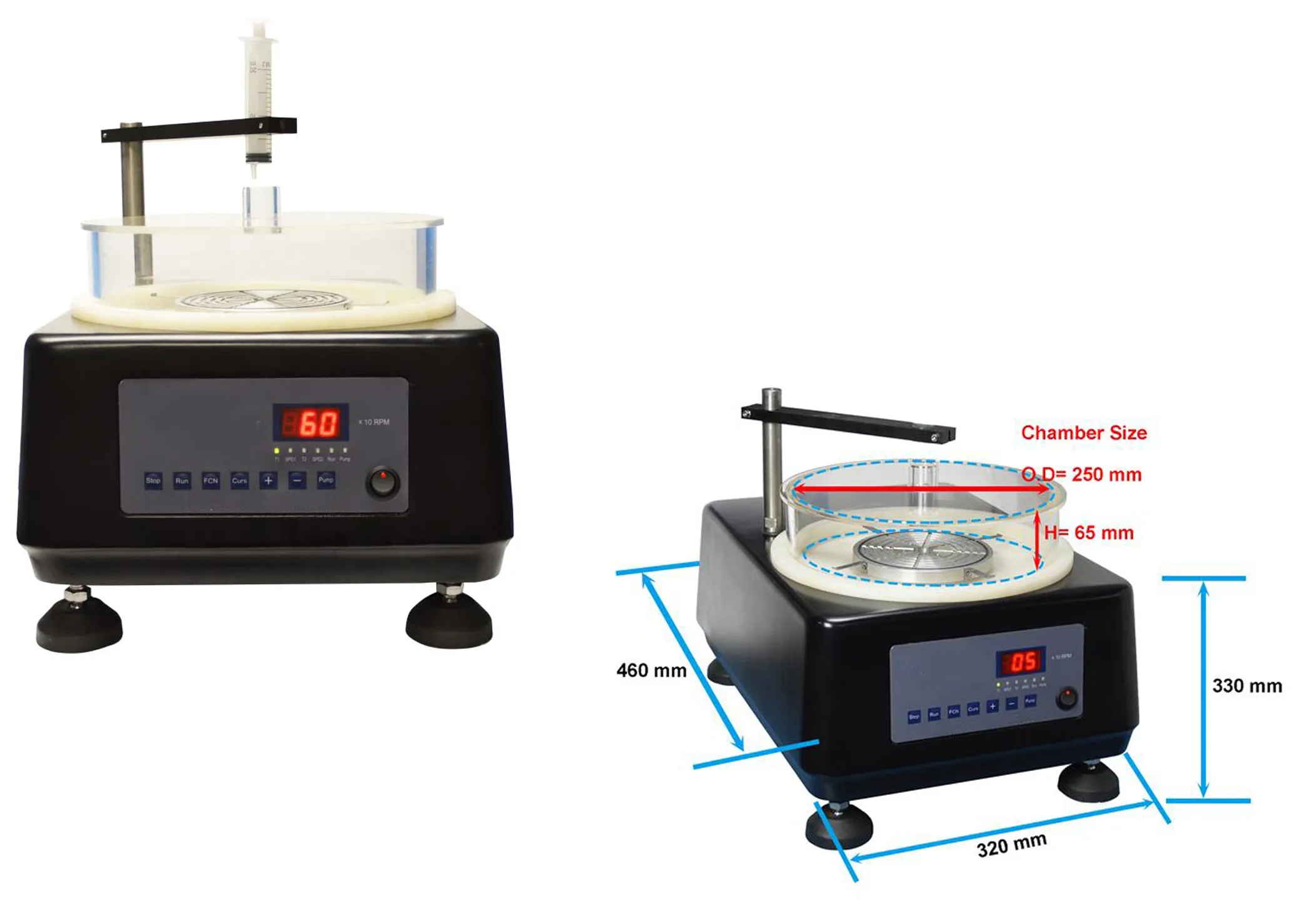

Programmable Vacuum Chuck Spin Coater QualiSC™ 200

Programmable Vacuum Chuck Spin Coater QualiSC™ 200 is designed for laboratory thin-film formation. Using high-speed rotation, it applies high-viscosity sol-gel and solution coatings onto sample surfaces. The system is widely used in research laboratories, universities, and industrial facilities.

Programmable Vacuum Chuck Spin Coater QualiSC-200

Programmable Vacuum Chuck Spin Coater QualiSC™ 200 Main Features

  • Programmable two-stage speed control
  • Vacuum-secured substrate, simple operation
  • Full aluminum cast structure for stability and low noise

Programmable Vacuum Chuck Spin Coater QualiSC™ 200 Technical Specifications

ParameterSpecification
Speed AdjustmentTwo segments adjustable between 500-6000rpm
Time AdjustmentTwo segments 1-60sec
Vacuum Pump Flow RateMore than 60L/min
Power70W
VoltageAC220/110V 50/60Hz
Power200W
ApplicationSuitable for coating of size 153mm, 203.5mm sample and other materials
Dimensions500mm × 400mm × 400mm
Weight30kgs
Standard AccessoriesDia.153mm vacuum chuck: 1 pc
Slurry feeder: 1 pc
Power cord: 1 pc
120L/min oilless vacuum pump
