QM Single Column Universal Testing Machines (Basic D2 Controller)
QM-Series Single Column D2 UTMs are basic budget-friendly Universal Testing Machines featuring simpler operation for materials testing, real-time data display, and data export capabilities for further analysis.

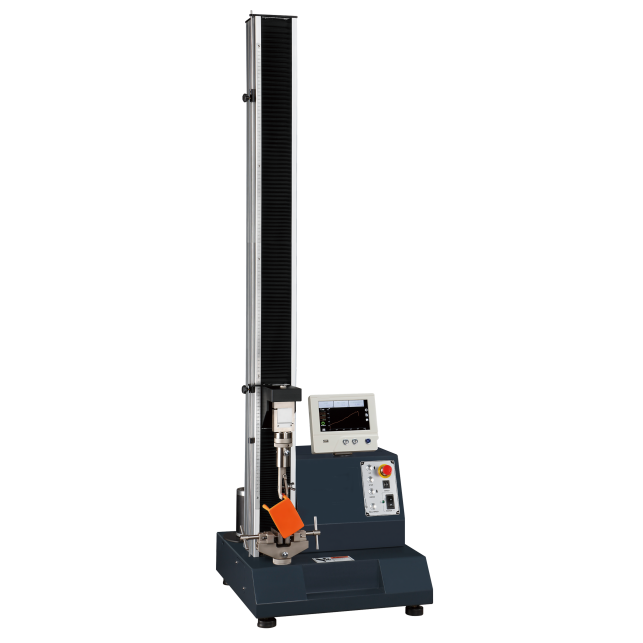

QM-2L-D2 Extended Height 2kN Universal Testing Machine
 | Universal Material Testing Machine QM-2L-D2 is a compact 2kN tensile testing device with a 7-inch color touch TFT display panel, designed for easy and efficient operation. |
Featuring the latest D2 controller and a standard 7-inch color touch TFT display, this tensile tester is built for standalone use. With a test stroke of 1100mm, it is ideal for conducting tensile tests with high elongation.
The machine allows switching between different units and provides a real-time display that records the testing process. Data can be saved to a USB drive for further analysis in Excel. For comprehensive analysis, the software can export full test data, raw data, and detailed reports.
Main Features
- Supports automatic identification of load cell parameters.
- Supports automatic identification of displacement accessory parameters.
- Comes standard with a 7-inch color touch TFT display panel.
- No specific PC requirements for connecting software, making PC maintenance straightforward.

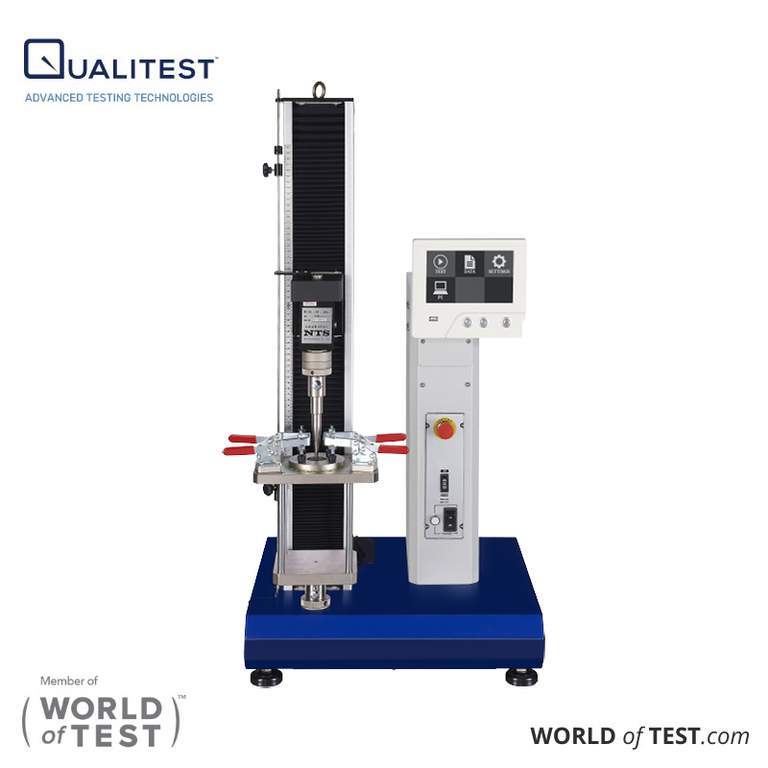

QM-5M-D2 Medium Height 5kN Universal Testing Machine
 | Universal Material Testing Machine QM-5M-D2 is a table-type UTM equipped with a standard 7-inch color touch TFT display panel for standalone operation. The D2 system allows for the addition of a portable printer to directly print test results, making it ideal for production lines or when a quick test is needed. |
The tensile testing machine's DC motor, enhanced by a special control system and algorithm, functions similarly to a servo motor, adjusting rotation speed for optimal performance. The digital speed setting and one-key start function increase operational convenience and efficiency.
Users can perform various tests, including tensile, compression, peeling, adhesion, and tearing tests. The system also supports multiple languages and unit conversions between Imperial and Metric when connected to dedicated PC software. The software offers comprehensive analysis functions and test modules. This tester is widely used as textile testing equipment, fabric testing machines, single yarn test machines, and tape testers.
Main Features
The D2 series is designed for real-time measurement on the production line and can be connected to a computer for full control, data analysis, and additional functions. The versatility of the machine allows users to add new accessories and enhance functionality whenever needed. Once test conditions are set, the test can be completed with a single click. The 100-240V power supply makes the machine adaptable to various environments and regions.
QM-5S-D2 Short 5kN Universal Testing Machine
 | Universal Material Testing Machine QM-5S-D2 is a table-type UTM equipped with a standard 7-inch color touch TFT display panel for standalone operation. The D2 system supports the addition of a portable printer to directly print test results, making it ideal for production lines or situations where quick testing is required. |
The tensile testing machine features a DC motor that, with the help of a specialized control system and algorithm, mimics the performance of a servo motor by adjusting the rotation speed for optimal results. The digital speed setting and one-key start function enhance both convenience and operational efficiency.
Users can perform various tests, including tensile, compression, peeling, adhesion, and tearing tests. The system supports multiple languages and unit conversions between Imperial and Metric when connected to dedicated PC software. The software also provides comprehensive analysis functions and test modules. This tester is widely used in applications such as textile testing, fabric testing, single yarn testing, and tape testing.
Accessories

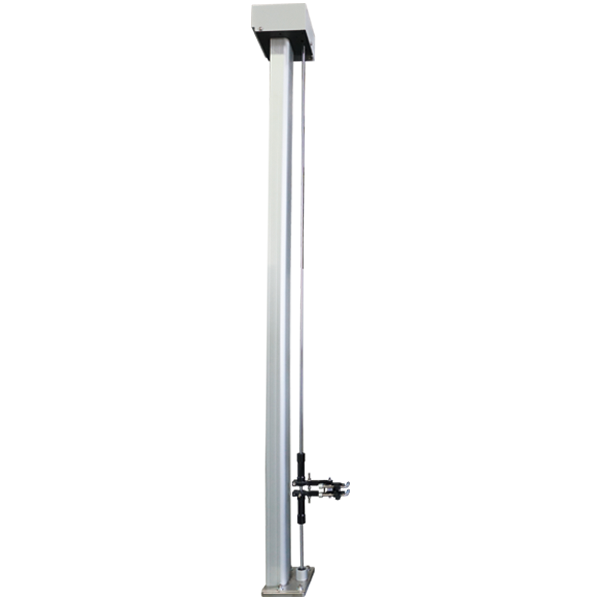

| QM-L-Ext Long Extensometer |
|---|
| QM-L-Ext Long Extensometer is designed for materials with over 20% elongation, such as rubber, plastic, PE, fabric, and webbing. It is ideal for high-elongation measurement applications. The specimens typically have a dumbbell shape. The extensometer can be integrated with the testing machine, automatically detecting deformation of the test piece during testing. |  |

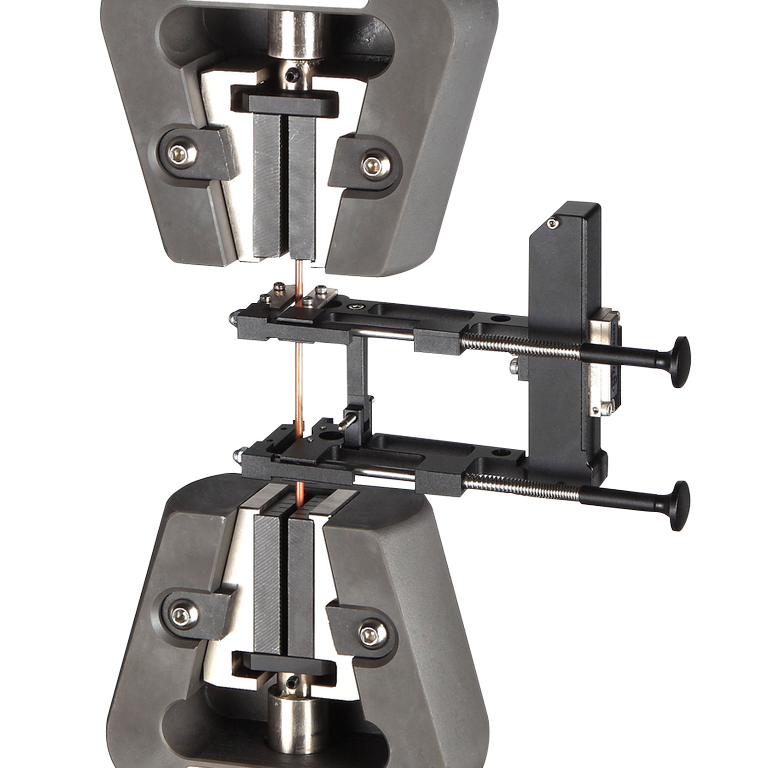

| QM-S-Ext Clip-on Extensometer |
| QM-S-Ext Clip-on Extensometer is designed to measure deformation in metals and hard plastics with less than 100% elongation. It accurately measures the complete deformation rate during testing without needing to be removed. For specimens with longer gauge lengths or higher elongation rates, a custom longer extensometer option is also available. |  |

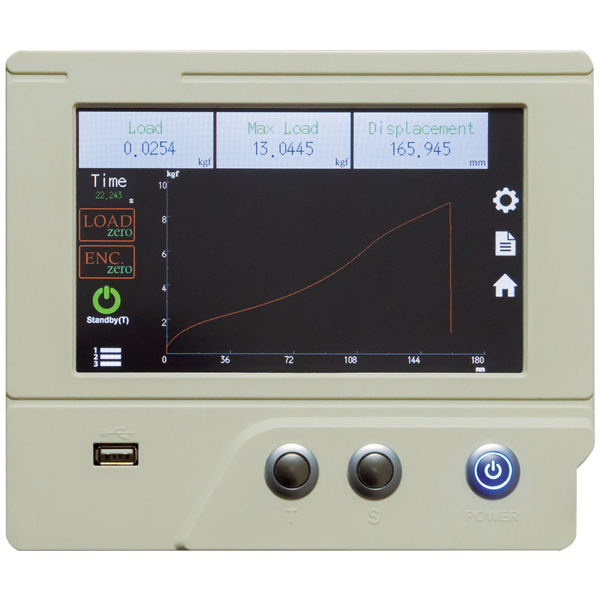

| Display Panel |
- Equipped with a 7-inch color touch TFT display panel.
- Supports English and other languages.
- Displays force, pressure, displacement, and time.
- Offers options for hardware, test, units, data, protection, and curve settings.
- Allows switching between Metric and Imperial units.
- Can store up to 50 test results.
- Enables saving results to a USB drive.
|  |

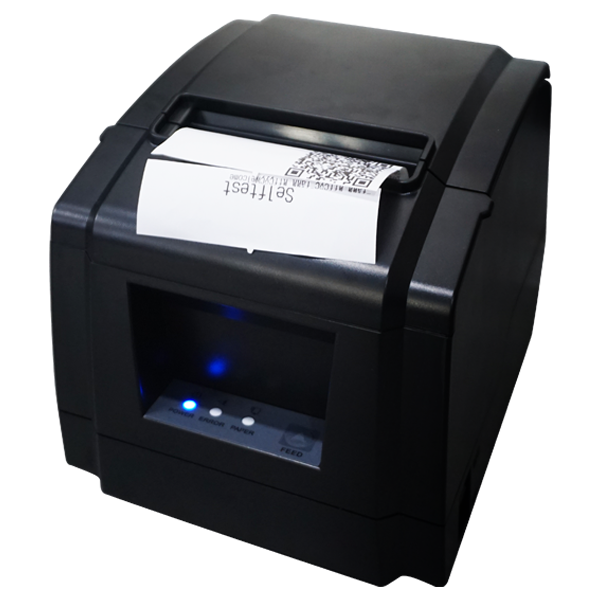

| Portable Printer |
| Capable of printing results in stand-alone operation mode. |  |
Software functions
- Data sampling rate up to 1200 Hz.
- Allows for data analysis.
- Requires Windows operating system.
- Supports English and other languages.
- Operation mode includes TCP/IP two-way transmission for PC connection.
- Capable of importing and displaying multiple test data simultaneously.
- Supports switching between Metric and Imperial units.
- Provides a flexible table for data analysis.
- Allows naming of data results.
- Data can be displayed in table format, graph, or both.
- Data processing features include saving, importing, listing, and statistical comparison.
- X-Y axis of the graph can be customized to show force, elongation, displacement, time, stress, strain, and more.
- Supports various tests including tensile, compression, bending, peeling, and others.
- Includes machine protection with over-travel, overload, and over-time stop conditions.
|  |
