Rolling Ball Tack Test Theory & Method
Standardized testing methods like JIS Z0237, ASTM D3121, PSTC-6, and GB/T 4852 define initial adhesion (quick-stick) by measuring how far a precision steel ball rolls across a pressure-sensitive adhesive strip after descending an inclined track.

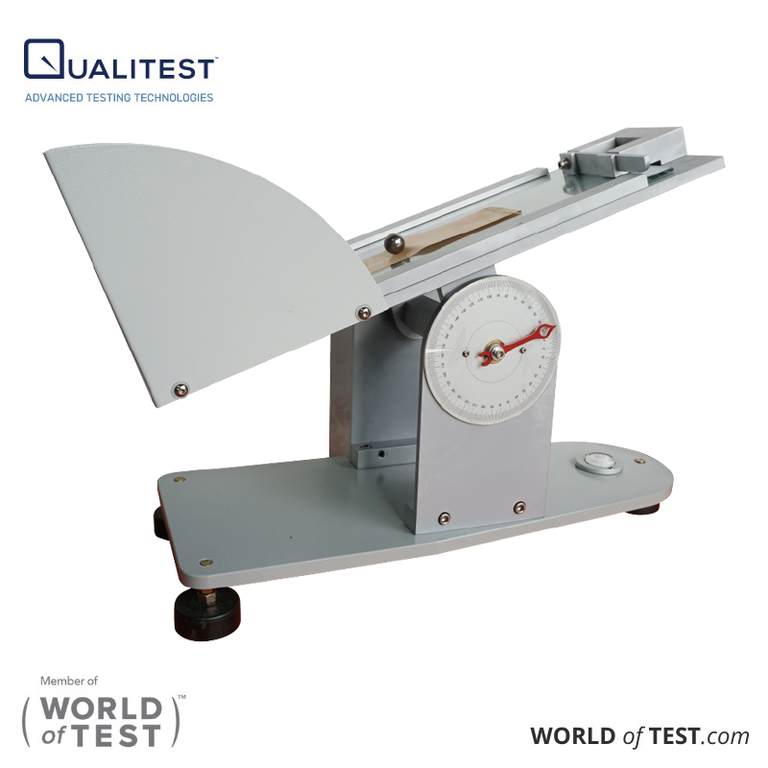

A shorter stopping distance directly indicates higher initial tackiness. The QualiTIAT™-1 implements this exact method using a single-ball runway with a 0° to 40° adjustable slope (typically set at 30° per JIS Z0237), a 100-millimeter approach track, and a standard set of No. 2 through No. 32 precision steel balls inside a sturdy 25 kg benchtop chassis.
+-----------------------------------------------------------------------+
| Gravitational Potential Energy Up Top |
| │ |
| ▼ |
| Building Full Entry Speed Down The Incline |
| │ |
| ▼ |
| Direct Impact With The Adhesive Strip |
| ┌───────────────┴───────────────┐ |
| ▼ ▼ |
| Interfacial Surface Grab Material Displacement |
| (Adhesive Pull Force) (Plowing Through Goo) |
| │ │ |
| └───────────────┬───────────────┘ |
| ▼ |
| Deceleration To A Full Stop |
| (Measuring Exact Travel Distance) |
+-----------------------------------------------------------------------+
Underlying Physics: Kinetic Energy & Rolling Resistance
As the steel ball accelerates down the 100 mm approach runway on the QualiTIAT™-1, potential energy converts into kinetic energy. The instant the ball transitions onto the pressure-sensitive adhesive specimen, the adhesive layer absorbs this kinetic energy, decelerating the ball to a complete stop.
- Friction Coefficient (μ'): Solving the rolling ball's equation of motion yields a quantitative friction coefficient (μ'), evaluating the adhesive's energy absorption capacity beyond raw stopping distance measurements. For smaller steel balls, such as Nos. 2 to 10 in the QualiTIAT™ accessory kit, rotational kinetic energy remains negligible, allowing surface friction to dominate deceleration.
- Compressive Contact Force: The compressive force acting between the rolling sphere and the adhesive film far exceeds the ball's gravitational mass. Interfacial adhesion interactions, rather than ball weight, drive the deceleration behavior.
- Adhesive Drag vs. Plowing Displacement: Total rolling resistance stems from two distinct mechanical interactions:
- Adhesive Pull (Adhesive Moment): Interfacial adhesion gripping the steel surface as the sphere rolls.
- Material Displacement (Plowing Moment): Physical resistance generated as the sphere physically displaces and deforms the viscoelastic adhesive layer ahead of its path.
| Physical Resistance Component | Mechanical Role During Ball Deceleration | Primary Influencing Factor |
|---|
| Adhesive Pull (Adhesive Moment) | Interfacial surface bonding between sphere and tape | Surface energy and adhesive chemical formulation |
| Material Displacement (Plowing Moment) | Physical deformation and displacement of the adhesive layer | Coating thickness, layer weight, and viscoelasticity |
| Compressive Contact Force | Squeezes sphere into adhesive film during dynamic contact | Dynamic contact pressure (far exceeds ball mass) |
Standardized Method Implementation & Instrument Alignment
The rolling ball tack method requires precise alignment between testing variables and equipment design:
- 100 mm Approach Run & Controlled Entry Speed: On the QualiTIAT™-1 (and multi-channel QualiTIAT™-4), balls travel down a 100-millimeter approach runner on a smooth PET sheet, entering the adhesive surface at a repeatable velocity of approximately 0.99 m/s.
- Slope Angle Control: Testing per JIS Z0237 or GB/T 4852 relies on adjusting track inclination from 0° to 40° to evaluate varying stickiness levels across light-tack and high-tack pressure-sensitive tapes.
- Fixed-Angle ASTM/PSTC Variant (QualiTIAT™-P): For labs following ASTM D3121 or PSTC-6 protocols, the QualiTIAT™-P variant uses a fixed 21.5° slope (21°30'), a 6.5-inch incline track, and specialized SUS stainless steel balls (Φ 7/16 in. and Φ 7/32 in.) to standardize entry energy.
- Precision Ball Calibration: Standardized ball selection (No. 2 through No. 32) allows technicians to systematically test larger or smaller sphere masses to identify the exact ball size that comes to rest within the specified adhesive sample length.
