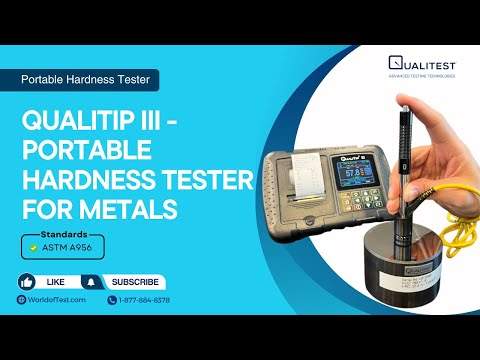

QualiTip III - Portable Hardness Tester for Metals

QualiTip III - Portable Hardness Tester for Metals

Buy Now
Parent Product
Portable Hardness Testers - Handheld Hardness Testers
Standards
ASTM A956

Best Application: Portable Hardness Tester for Metals

Following the Rebound Leeb's principle, the new Quali Tip III positions itself on the top of the line of our portable rebound-type hardness testers, offering an excellent price/quality ratio to our customers.

Applications

Our rebound hardness testers cover a broad range of applications in industry and supply the required test results, in almost every application, where fixed hardness testers can not be used. These portable hardness testers conform to ASTM A956 standard.  In order to achieve accurate measurements with the Quali Tip III, as any rebound hardness tester, the minimum thickness required of the sample is 3/8" (10mm) and weight of 11lb (5kg) for the samples.  As with all hardness testers using Leeb’s rebound hardness principle, the unit will give faulty readings if these requirements are not met.

Features/Advantages

The portable hardness tester is capable of measuring the hardness of a broad variety of metals on flat and round surfaces. This instrument comes with interchangeable impact probe and digital display.  The system also features an extended memory function (storage capacity: 999 readings). After obtaining data at the test site, the unit can generate a printout via the built-in printer to or be connected to a PC via USB interface for further analysis and printing the test data as desired. Quali Tip III is the high-end leebs rebound-type portable hardness tester, and an ideal solution for metallic hardness measurements with conversions to HLD, HRC, HRB, HB, HV, and HS. The measuring accuracy is +/- 0.5%.

Advantages

Rebound-type hardness testers are suitable for

  • Hardness testing of large and heavy objects
  • In production line of mass produced components
  • Materials identification in stores and warehouses
  • In locations with difficult access, or in confined spaces
Technical Specifications

Hardness scale

HL, HRC, HRB, HB, HV and HS convertible

Impact devices

D (standard),

DC/ D + 15 / C / G / DL (optional)

Accuracy

±0.5%

Display

320 x 240 matrix LCD display with back light

Printer

Built-in printer

Statistics function

Average / Max. / Min. value calculation

Limits setting and alarm

Memory

999 data

Output

USB connection

Max. hardness value

999HV (Impact device D/DC/DL/D+15/C)

68HRC (Impact device D/DC/DL/D+15/C)

680HB (Impact device G)

Minimum sample weight

2kg on solid support / 0.2kg with couplant paste

Minimum thickness coupled

5 mm (Impact device D/DC/DL/D+15)

3 mm (Impact device C)

10 mm (Impact device G)

Battery indicator

Battery low indication

Power supply

4 AA rechargeable batteries

Charger

6 V D.C. 1000mA

Charging time

2 hours

Operating temperature

-20°C to 40°C

Dimensions

215mm×145mm×46mm

Weight

600g
