Fundamental Mechanics of Wet Scrub Abrasion & Washability
Wet scrub testing relies on linear reciprocating mechanical friction combined with liquid dynamic exposure to evaluate surface coating durability. The core testing method measures how effectively a dry coating film resists mechanical breakdown, binder erosion, and pigment loss when subjected to repeated physical wiping under a fixed downward force in the presence of a liquid medium.
During testing, two distinct physical mechanisms occur simultaneously:
- Mechanical Abrasion Theory: A moving head draws an abrasive medium (such as a brush, sponge, or abrasive pad) across a coated panel. The applied downward force drives abrasive fibers into the coating matrix, generating frictional shear stress that wears away binder resins and exposes underlying pigments.
- Liquid Interaction Theory: Liquid cleaner or detergent solution acts as a lubricant and chemical agent. It weakens pigment-binder bonds, dissolves surface-bound soils, and flushes abraded debris out of the scrub path.
Testing methodology divides surface evaluation into two primary criteria:
- Scrub Abrasion Resistance Method: Quantifies physical coating integrity by counting the total number of linear strokes needed to abrade the coating layer completely down to the substrate panel, or by calculating dry film mass loss after a set cycle count.
- Washability & Cleanability Method: Evaluates the coating's ability to withstand stain removal without suffering film erosion, gloss alteration, or color migration.

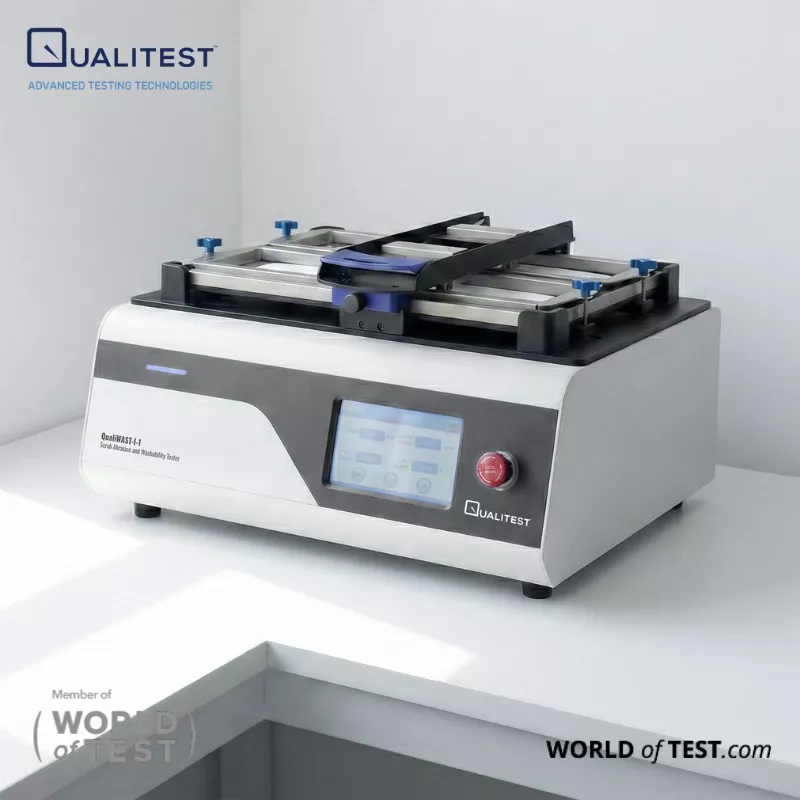

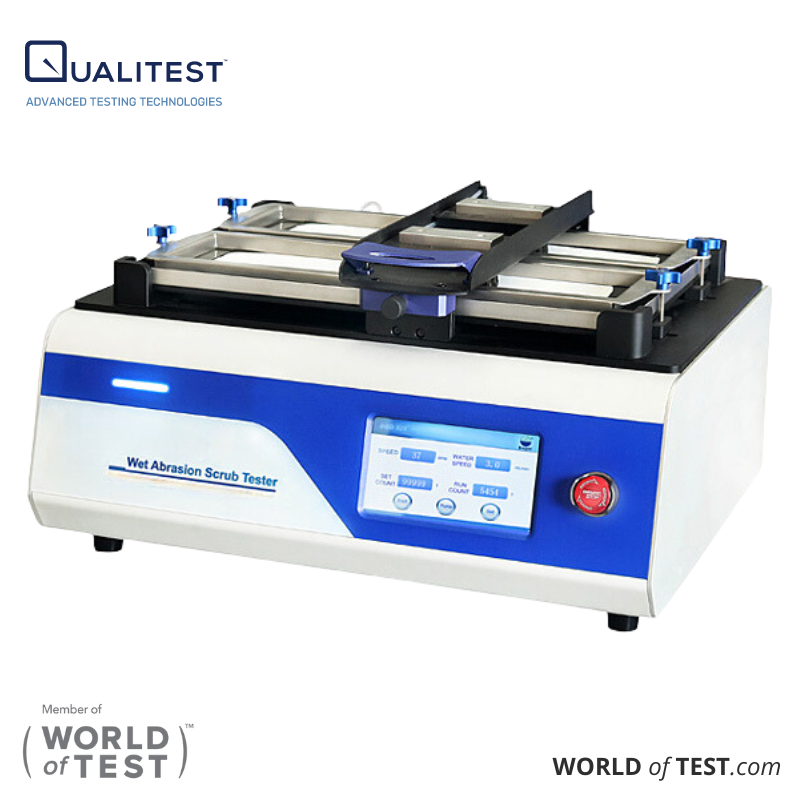

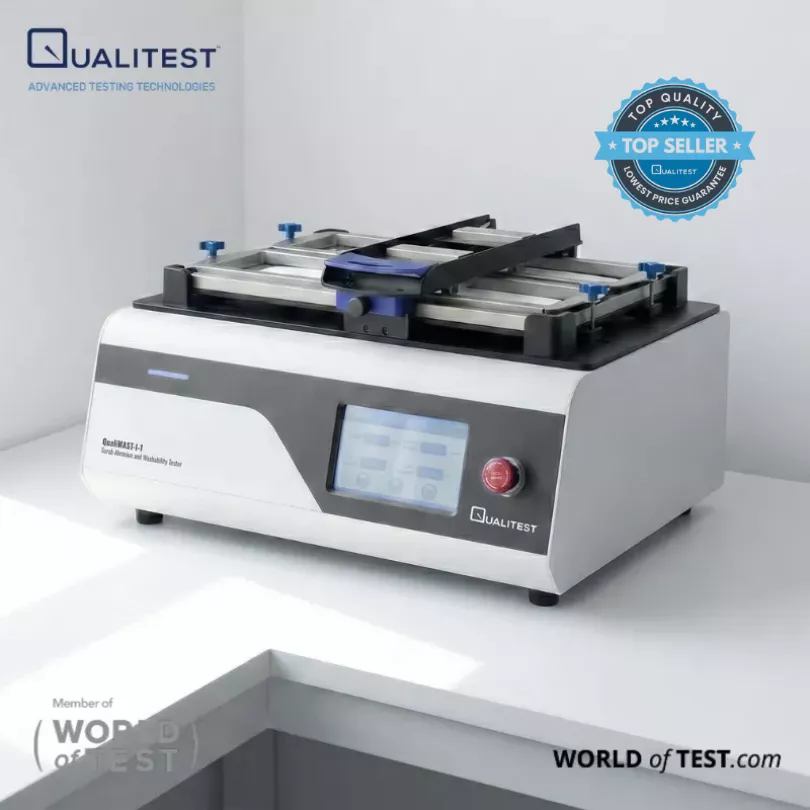

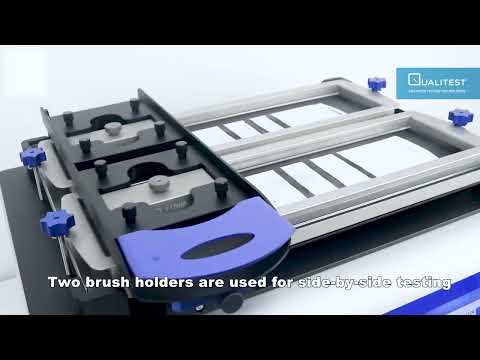

The QualiWAST™ I Scrub Abrasion and Washability Tester translates these theoretical mechanics into repeatable laboratory procedures. Driven by a 25W push-rod motor mounted inside a heavy anodized aluminum chassis, it drives dual-arm holders across a 300 mm stroke length at frequencies between 5 and 95 strokes per minute. An integrated peristaltic pump draws liquid from a 1-liter container, delivering a continuous stream of fluid directly onto the scrub path to prevent dry-friction errors.
Standardized Test Protocols and Methodologies
Standardized protocols establish specific combinations of stroke speed, load weight, abrasive medium, and substrate type to ensure cross-laboratory reproducibility. The QualiWAST™ I platform supports these standard test methods through specialized system variants and dedicated accessories:
1. ISO 11998 / EN ISO 11998 Protocol (QualiWAST™ I-2)
Method Principle: Measures wet scrub resistance and cleanability of water-borne paints by subjecting coated panels to 37 cycles per minute under a light load.
System Setup: Uses QualiWAST™ ACC 1185 abrasion heads weighted to 135 ± 1 g, fitted with QualiWAST™ ACC 1045 3M Scotch-Brite™ 7448 pads (90 × 39 mm). Evaluation measures film mass loss or stain removal efficiency across glass or wood test panels.
2. ASTM D2486 Protocol (QualiWAST™ I-1)
Method Principle: Evaluates scrub resistance of interior wall paints by counting the number of scrub cycles required to produce a continuous line of topcoat failure over a raised shim.
System Setup: Uses QualiWAST™ ACC 1186 abrasion assemblies loaded to 454 ± 10 g, fitted with QualiWAST™ ACC 1364 nylon brushes (or QualiWAST™ ACC 1365/A hog bristle brushes). The test sample is mounted over a QualiWAST™ ACC 2355 brass shim (165 × 12.7 × 0.25 mm) on a QualiWAST™ ACC 2208 black plastic panel (432 × 165 mm).
3. ASTM D3450, ASTM D4213, & ASTM D4828 Protocols (QualiWAST™ I-3, I-4, I-5)
Method Principle: Measures washability, soil removal, and scrub resistance via gravimetric mass loss using cellulose sponges under heavier downward forces.
System Setup: Utilizes QualiWAST™ ACC 1187 (1,500 g load), QualiWAST™ ACC 1188 (470 g load), or QualiWAST™ ACC 1189 (1,000 g load) sponge assemblies with QualiWAST™ ACC 1510 or ACC 1511 sponge inserts.
4. DIN 53778 / DIN EN 13300 Protocol (QualiWAST™ I-6)
Method Principle: Classifies interior paints into wet-scrub durability tiers based on cycle survival limits under standardized washing conditions.
5. Multi-Standard Dual Compliance (QualiWAST™ I-7)
Method Principle: Integrates dual mounting fixtures and swappable weight blocks, allowing operators to run both ASTM D2486 and ISO 11998 procedures on a single testing unit.
Method Parameter Comparison Matrix
| Testing Protocol | ISO 11998 Method | ASTM D2486 Method | ASTM D3450 / D4213 / D4828 | QualiWAST™ I Specifications |
|---|
| System Model | QualiWAST™ I-2 | QualiWAST™ I-1 | QualiWAST™ I-3 / I-4 / I-5 | QualiWAST™ I-7 (Universal) |
| Reciprocating Speed | 37 ± 2 cycles/min | 37 ± 2 cycles/min | 37 ± 2 cycles/min | 5 to 95 cycles/min (Adjustable) |
| Applied Downward Load | 135 ± 1 g | 454 ± 10 g | 470 g to 1,500 g | Quick-interchangeable weights |
| Abrasive Tool | Scotch-Brite™ Pad (ACC 1045) | Nylon Brush (ACC 1364) | Cellulose Sponge (ACC 1510/1511) | Brushes, sponges, & pads |
| Stroke Distance | 300 mm linear path | 300 mm linear path | 300 mm linear path | 300 mm linear drive |
| Substrate Mounting | Glass / Wood Panel | Plastic Panel (ACC 2208) | Black Plastic Panel | Universal sample bed |
| Liquid Dosing | Peristaltic Dosing | Standard Scrub Solution | Standardized Washing Solution | Built-in Peristaltic Pump (1L) |
Quantification and Failure Analysis Methods
Evaluating surface degradation following wet scrub testing relies on four standard quantification techniques:
1. Cycle Counting to Film Breakthrough Method
Determines mechanical wear limits by tracking the exact stroke count where continuous abrasion wears through the coating film to expose the underlying substrate. The QualiWAST™ I uses an automated 5-digit digital counter (0 to 99,999 cycles) that stops motor drive automatically when reaching a pre-set cycle threshold.
2. Gravimetric Film Mass Loss Method
Quantifies density loss in high-build coatings. Coated panels are conditioned, dried, and weighed on an analytical balance before testing, subjected to a fixed cycle count (for example, 500 or 1,000 strokes), dried again, and re-weighed. Mass loss directly reflects binder cohesion and pigment volume concentration (PVC).
3. Surface Optical Analysis Method
Measures aesthetic degradation when the coating film remains intact:
- Gloss Loss Analysis: Quantifies micro-scratching on high-gloss or semi-gloss finishes using a glossmeter before and after scrubbing.
- Color Drift Analysis (ΔE): Measures pigment removal or chemical discoloration using spectrophotometric color comparison.
4. Digital Image Processing Method
Captures pre- and post-scrub digital images of the test track. Image analysis software converts surface images into Hue, Saturation, and Value (HSV) color spaces, applying Retinex optical models to calculate surface flaw growth, color retention, and gloss change across the entire abraded track without manual inspection bias.
