QualiWAST-II Multifunction Scrub Abrasion and Washability

Multifunction Scrub Abrasion and Washability Tester - QualiWAST™ II

Request A Quote
Parent Product
Scrub Abrasion and Washability Tester
Standards
ASTM D2486
ASTM D3450
ASTM D4213
ASTM D4752
ASTM D4828
ASTM D5402
ASTM D7835
DIN EN 13300
ISO 11998
View PDF

Application and Standard - Multifunction Scrub Abrasion and Washability Tester-QualiWAST™ II

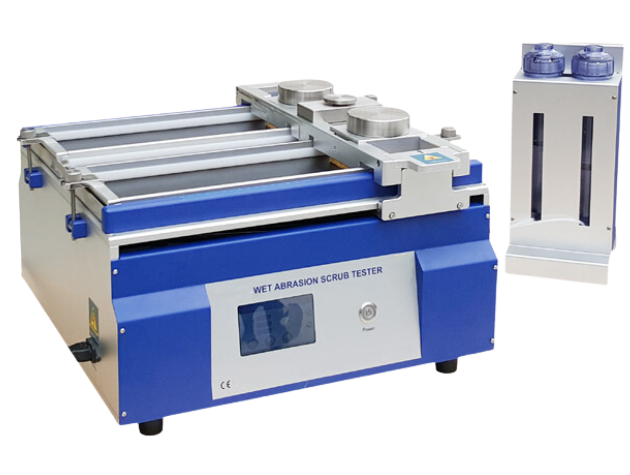

QualiWAST-II Multifunction Scrub Abrasion and Washability Tester

The QualiWAST™ II Multifunction Abrasion Scrub Tester is a robust tool for abrasion testing. With interchangeable abrasion heads, it can meet all testing standards for linear reciprocating abrasion, including wet abrasion scrub, sponge washability, scrub resistance, cleanability, dirt pickup resistance, MEK test, Rub test, and more.

Furthermore, this machine utilizes a touchscreen interface for operation, allowing users to directly set all required test parameters and monitor its status conveniently. It's incredibly easy and straightforward to operate.

Standards:

  • ISO 11998: Paints and varnishes - Determination of wet-scrub resistance and cleanability of coatings
  • ASTM D 2486: Standard Test Methods for Scrub Resistance of Wall Paints
  • ASTM D 3450: Standard Test Method for Washability Properties of Interior Architectural Coatings
  • ASTM D 4213: Standard Test Method for Scrub Resistance of Paints by Abrasion Weight Loss
  • ASTM D 4828: Standard Test Methods for Practical Washability of Organic Coatings
  • ASTM D 5402: Standard Practice for Assessing the Solvent Resistance of Organic Coatings Using Solvent Rubs
  • ASTM D 4752: Standard Practice for Measuring MEK Resistance of Ethyl Silicate (Inorganic) Zinc-Rich Primers by Solvent Rub
  • ASTM D 7835: Standard Test Method for Determining the Solvent Resistance of an Organic Coating Using a Mechanical Rubbing Machine
  • DIN EN 13300: Paints and varnishes - Water-borne coating materials and coating systems for interior walls and ceilings



QualiWAST-II Multifunction Scrub Abrasion and Washability TesterQualiWAST-II Multifunction Scrub Abrasion and Washability Tester

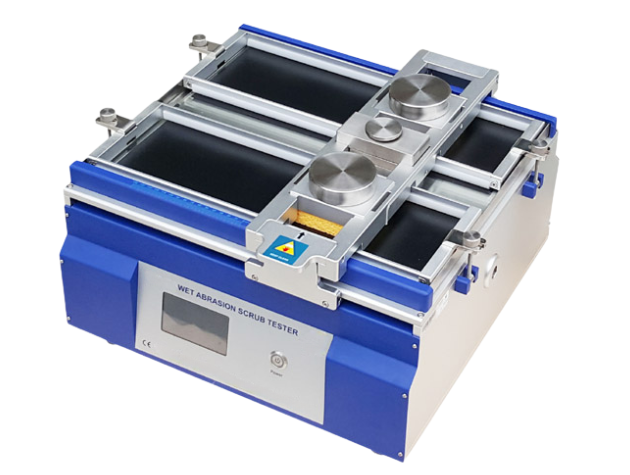

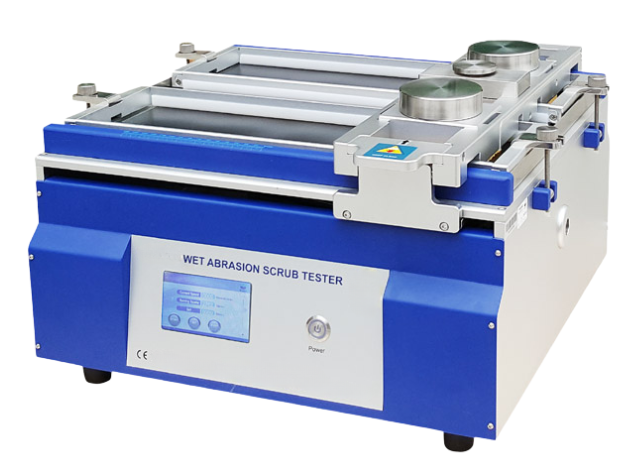

QualiWAST-II Multifunction Scrub Abrasion and Washability Tester

QualiWAST™ II Multifunction Scrub Abrasion and Washability Tester Features:

  • Double working channels, each with a separate container for scrub medium, allowing operators to perform two different tests simultaneously or conduct wet and dry abrasion tests concurrently.
  • Adjustable working speed ranging from 5 to 95 times/minute and flexible working distance from 0 to 300mm to comply with various standards.
  • Push-rod design ensures stable and uniform reciprocating motion, resulting in more reliable test results.
  • Equipped with a peristaltic pump for precise control of scrub medium flow.
  • Convenient and fast installation and dismantling of test panels or replacement of different abrasion heads.
  • Entirely constructed of aluminum alloy for durability and aesthetic appeal, ensuring a longer service life.
  • Compatible with both 110V/220V and 50Hz/60Hz power supplies.

QualiWAST™ II Multifunction Scrub Abrasion and Washability Tester Technical Specifications:

Stroke Length0～300mm (adjustable)
Frequency of Travel5～95 times/min (adjustable)
Range of Count0～99,999 times
Size of Test Plate430mm×150mm×0.03mm
Power of Motor25W
Power110V～220V; 50/60 Hz
Dimensions500mm×460mm×280mm (L×W×H)
Capacity of Water Container500ml×2
Ordering InformationQualiWAST™ II Multifunction Scrub Abrasion and Washability Tester

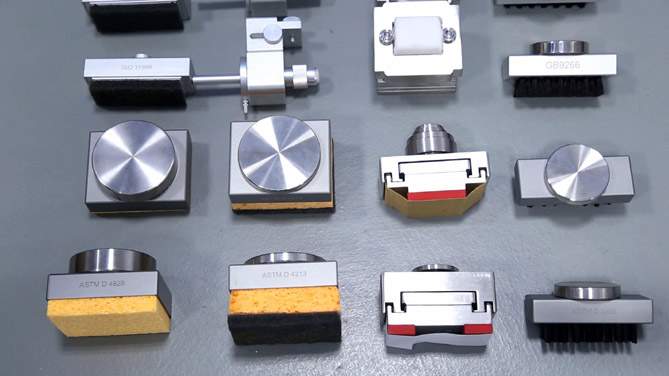

Optional Accessories:
  • QualiWAST™ ACC 1179---Abrasion Heads for DIN 53778（Hog Bristle Brush+ Weights, total weigh is 250±10g）
  • QualiWAST™ ACC 1182/B---Abrasion Heads for ASTM D 4752&D 5402（Absorbent cotton gauze+ Weights, total weigh is 1000±10g；Abrasion area 1.5 c㎡）
  • QualiWAST™ ACC 1182/C---Abrasion Heads for ASTM D 7835（Absorbent cotton gauze+ Weights, total weigh is 3000±50g；Abrasion area 2.0 c㎡）
  • QualiWAST™ ACC 1184---Abrasion Heads for Rub Resistance（For printed materials，Offset paper+weights，total weight is 20N±0.2N）
  • QualiWAST™ ACC 1185---Abrasion Heads for ISO 11998（3M Scotch Brite handpads + Weights, total weigh is 135±1g）
  • QualiWAST™ ACC 1186---Abrasion Heads for ASMT D 2486（Nylon+ Weights, total weigh is 454±10g）
  • QualiWAST™ ACC 1187---Abrasion Heads for ASTM D 3450（Sponge+ Weights, total weigh is 1,500g）
  • QualiWAST™ ACC 1188---Abrasion Heads for ASTM D 4213（Sponge+3M Scotch Brite handpads + Weights, total weigh is 470±10g）
  • QualiWAST™ ACC 1189---Abrasion Heads for ASTM D 4828（Sponge+ Weights, total weigh is 1000±10g）
  • QualiWAST™ ACC 1190/A---Abrasion Heads for Alcohol Resistance（1c㎡ area, 25g/50g/100g/200g/500g weights+Cotton gauze）
  • QualiWAST™ ACC 1190/R---Abrasion Heads for Rubber Resistance（25g/50g/100g/200g/500g weights+5 rubbers）
  • QualiWAST™ ACC 1197---Locating Frame for brush & abrasive pad（Used in conjunction with QualiWAST™ ACC 1179, 1185 and 1186）
  • QualiWAST™ ACC 1198---Locating Frame for sponges (Used in conjunction with QualiWAST-ACC 1187, 1188 and 1189)
Consumables
  • QualiWAST™ ACC 1045---Abrasive pad (3M Scotch Brite® handpads)  (ISO 11998；Size--- 90mm×39mm; Pack of 50)
  • QualiWAST™ ACC 1364---Special nylon brush (ASTM D 2486；1 pair)
  • QualiWAST™ ACC 1365/A---Hog Bristle Brush (1 pair)
  • QualiWAST™ ACC 1510---Sponges (ASTM D 3450;12 pcs)
  • QualiWAST™ ACC 1511---Sponges (ASTM D 4213 & ASTM 4828; 12 pcs)
  • QualiWAST™ ACC 2355---Brass Shim (165mm×12.7mm×0.25mm; pack of 10 pairs)
  • QualiWAST™ ACC 2208---Black plastic panel (432mm×165mm×0.25mm; pack of 100)
