Rain Spray Test Chamber IPX-12/34/56

Rain Spray Test Chamber IPX-12/34/56
Parent Product
Rain Test Chamber – IPX Rain Spray Test Chamber
Standards
CNS 7138
D5500
IEC 60529
JIS D 0203
SAE J585e

Discover our Rain Spray Test Chamber IPX-12/34/56, a versatile solution for assessing water resistance and waterproofing in a wide range of products. Compliant with international standards including IEC60529 and JIS D0203, our chamber provides essential testing data for industries such as automotive, aerospace, and electronics. Ensure product quality and reliability with our advanced rainproof spray test chamber.

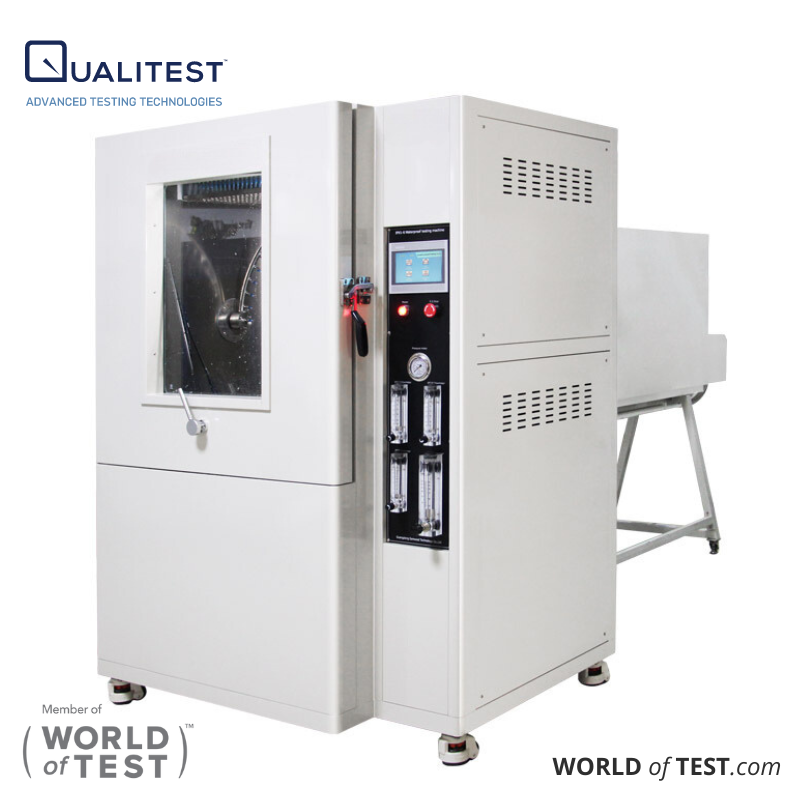

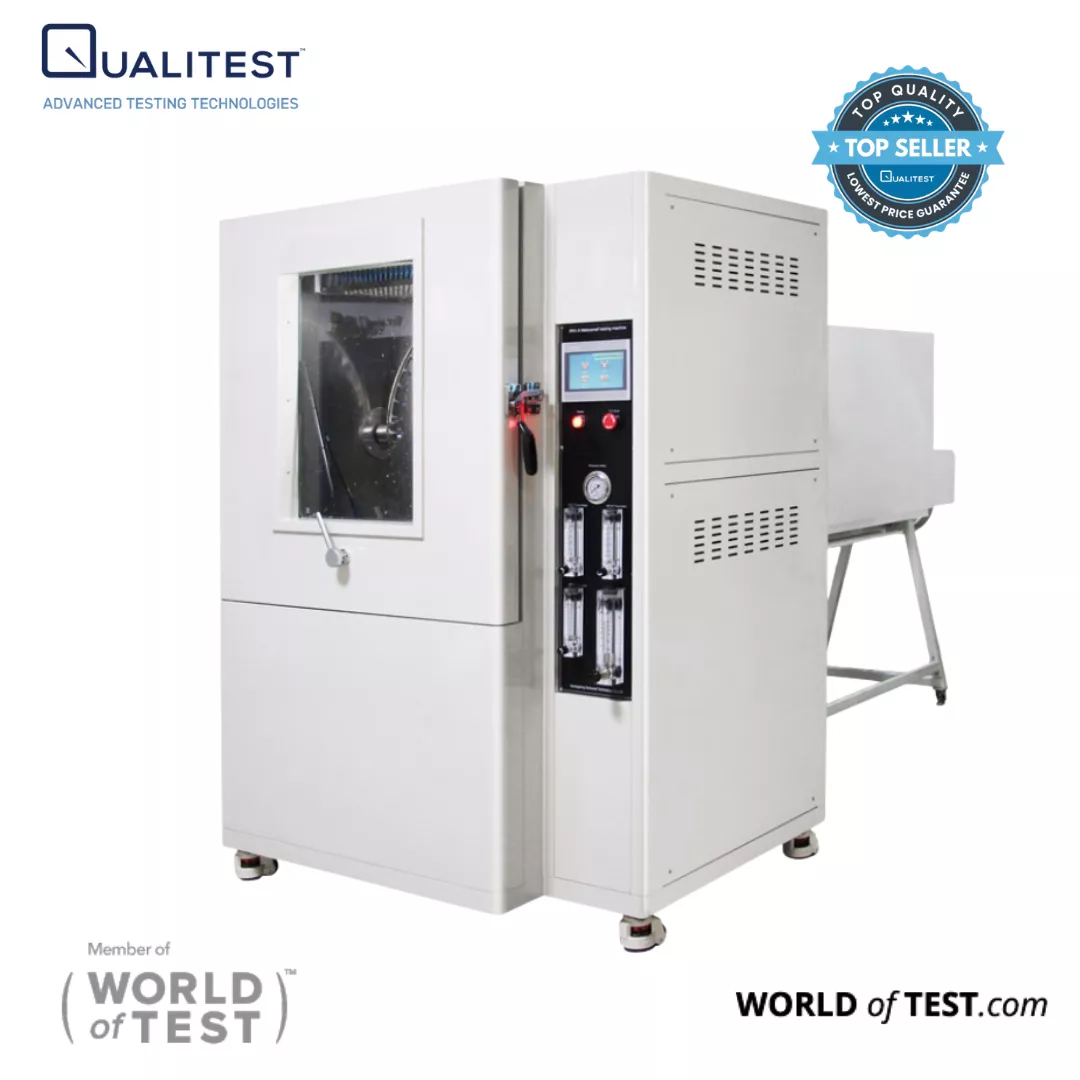

Rain Spray Test Chamber IPX-12/34/56

Rain Spray Test Chamber IPX-12/34/56

Overview:

Our Rainproof Spray Test Chamber assesses the water resistance and waterproof capabilities of various products, including automotive parts, windshield wipers, waterproof bands, motorcycle gauges, defense equipment, navigation systems, missiles, radar domes, and aerospace components. It complies with IEC IP code specifications and offers flexibility for further customization.

Rain Spray Test Chamber IPX-12/34/56Rain Spray Test Chamber IPX-12/34/56

Rainproof Spray Test Chamber (IPX-1/2/3/4/5/6) Standards:

Our chamber meets the rain test standards of IEC60529, JIS D0203, D5500, SAE J585e, and CNS 7138.

Applications of Our Rainproof Spray Test Chamber:

Our rainproof spray test chamber is applicable across industries including plastics, rubber, paint, coatings, printing inks, paper, pharmaceuticals, food, cosmetics, textiles, automotive parts, packaging materials, building materials, electrical goods, and electronics. It delivers crucial testing data vital for scientific research, product development, and quality control purposes.

Rain Spray Test Chamber IPX-12/34/56Rain Spray Test Chamber IPX-12/34/56

Rain Spray Test Chamber IPX-12/34/56 Technical Specifications:

ModelQT-IPX12-1000
Inner chamber material
D×W×H（mm)		1000*1000*1000
Outer chamber material
D×W×H（mm)		1200*1450*1850
 Performance index Drip mold height200～800mm（adjustable）
Rainfall3～5mm/min
Drip hole diameter φ0.4mm
Testing bench size500×400（mm）
Testing bench angle The horizontal center faces from both sides to 45°
Lifting mode up and down
Operation Control SystemControllerSH-5500 controller
Time controllerImported programmable time computer-integrated controller
Water pressure control Electromagnetic flowmeter
ObservationLarge area visualization of toughened glass door
Water supply systemWater tank, booster pump
Power supplyAC380V  TN-S
Safety protectionLeakage, short circuit, motor overheating



ModelQT-IPX34-1000
Testing room size1000(W)*1000(H)*1000(D)
External size1450(W)*1800(H)*1200(D)
Power2.5(KW)
 Performance index Radius of Water spraying ring 400mm
Water pipe diameter φ18mm
Nozzle hole diameter φ0.4mm
Aperture spacing 50mm
Swing amplitude ±45°、±60°、±90°、±180°（theoretical value）
Rotating speed 1r/min can also be used for speed regulation without joints
Operation Control SystemControllerSH-5500 controller
Time controllerImported programmable time computer-integrated controller
Water pressure control Electromagnetic flowmeter
ObservationLarge area visualization of toughened glass door
Water supply systemWater tank, booster pump
Power supplyAC380V  TN-S
Safety protectionLeakage, short circuit, motor overheating



ModelQT-IPX56-1000
Testing room Size1000(W)*1000(H)*1000(D)
External Size3950(W)*1800(H)*1200(D)（2.5m pipeline is detachable ）
Power2.5(KW)
 Performance Index IPX5 Nozzle diameter φ6.3mm
IPX5 water flow12.5L/min
IPX6 Nozzle diameterφ12.5mm
IPX5 water flow100L/min
Flushing distance 2500mm
Swing amplitude ±15°（theoretical value）
Rotating speed 1~20r/min can also be used for speed regulation without joints
Operation Control SystemControllerSH-5500 controller
Time controllerImported programmable time computer-integrated controller
Water pressure control Electromagnetic flowmeter
ObservationLarge area visualization of toughened glass door
Water supply systemWater tank, booster pump
Power supplyAC380V  TN-S
Safety protectionLeakage, short circuit, motor overheating
