Rain Spray Test Chamber IPX-3/4

Rain Spray Test Chamber IPX-3/4
Parent Product
Rain Test Chamber – IPX Rain Spray Test Chamber
Standards
CNS 7138
D5500
JIS D 0203
SAE J585e

Discover superior rain Spray Test Chamber IPX-3/4 is Perfect for evaluating waterproofing in various products, from Automotive to Aerospace Technologies. Compliant with industry standards like JIS D0203 and SAE J585e, it's a vital tool for quality control and product development across multiple sectors.

Rain Spray Test Chamber IPX-3/4 Overview

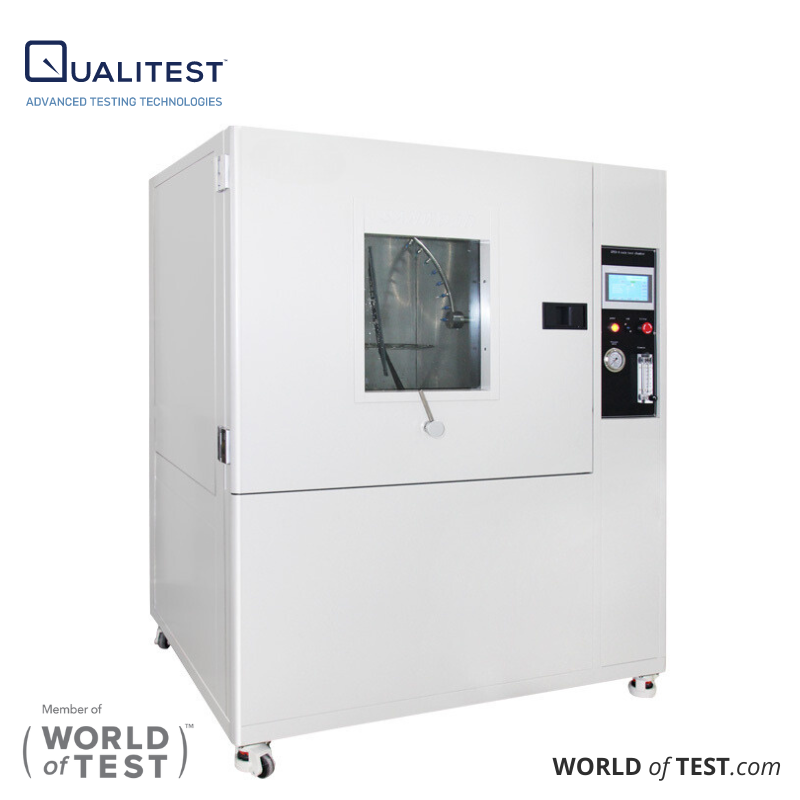

Rain Spray Test Chamber IPX-3/4

The Rain Spray Test Chamber (IPX-3/4) serves to evaluate the resistance to rain and waterproofing capabilities of various products. These include steam automotive parts, wiper systems, waterproof bands, motorcycle instruments, defense equipment, navigation systems, missiles, radar components, and aerospace technology. It conforms to IEC IP code specifications, which may require further discussion.

Corresponding Standards for Rain Spray Test Chamber (IPX-3/4):

Our IPX-3/4 rain spray testing chamber complies with standards such as JIS D0203, D5500, SAE J585e, and CNS 7138.

Rain Spray Test Chamber IPX-3/4



Applications of Our Rain Spray Test Chamber (IPX-3/4):

This equipment finds application across a wide range of industries including plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, automotive parts, packaging materials, building materials, electronics, and electrical products. It plays a crucial role in providing essential testing data for scientific research, product development, and quality control.

Rain Spray Test Chamber IPX-3/4Rain Spray Test Chamber IPX-3/4



Rain Spray Test Chamber IPX-3/4 Technical Specifications:

Model

QT-IPX34-1000

Testing room size

1000(W)*1000(H)*1000(D)

External size

1450(W)*1800(H)*1200(D)

Power

2.5(KW)

Performance index

Radius of Water
Spraying ring

400mm

Water pipe diameter

⌀18mm

Nozzle hole diameter

⌀0.4mm

Aperture spacing

50mm

Swing amplitude

±45° ±60° ±90° ±180° (theoretical value)

Rotating speed

1r/min can also be used for speed regulation without joints
Operation Control
System

Controller

SH-5500 controller

Time Controller

Imported programmable time computer-integrated controller

Water Pressure Control

Electromagnetic flowmeter

Observation

Large area visualization of toughened glass door

Water Supply System

Water tank, booster pump

Power Supply

AC380V TN-S
Safety protection

Leakage, short circuit, motor overheating
