RDE-OES Precision Arc Elemental Analyzer - QualiRDE™ 800H

RDE-OES testing gives maintenance and laboratory teams a fast way to measure wear metals, contaminants, and additive elements in working fluids. The QualiRDE™ 800H is built for direct oil analysis with no dilution, no auxiliary gases, and no added chemical reagents, making it a strong fit for routine condition monitoring in industrial labs. Analysis in under 30 seconds, a detection limit below 1 ppm, and repeatability within ±10%.

This compact RDE-OES Precision-Arc Elemental Analyzer uses rotating disc electrode atomic emission spectroscopy with a digital light source control system and CCD-based optical design. It is intended for organizations that need quick, repeatable insight into lubricant condition, machine wear, and contamination trends across maintenance, reliability, and failure-prevention programs.

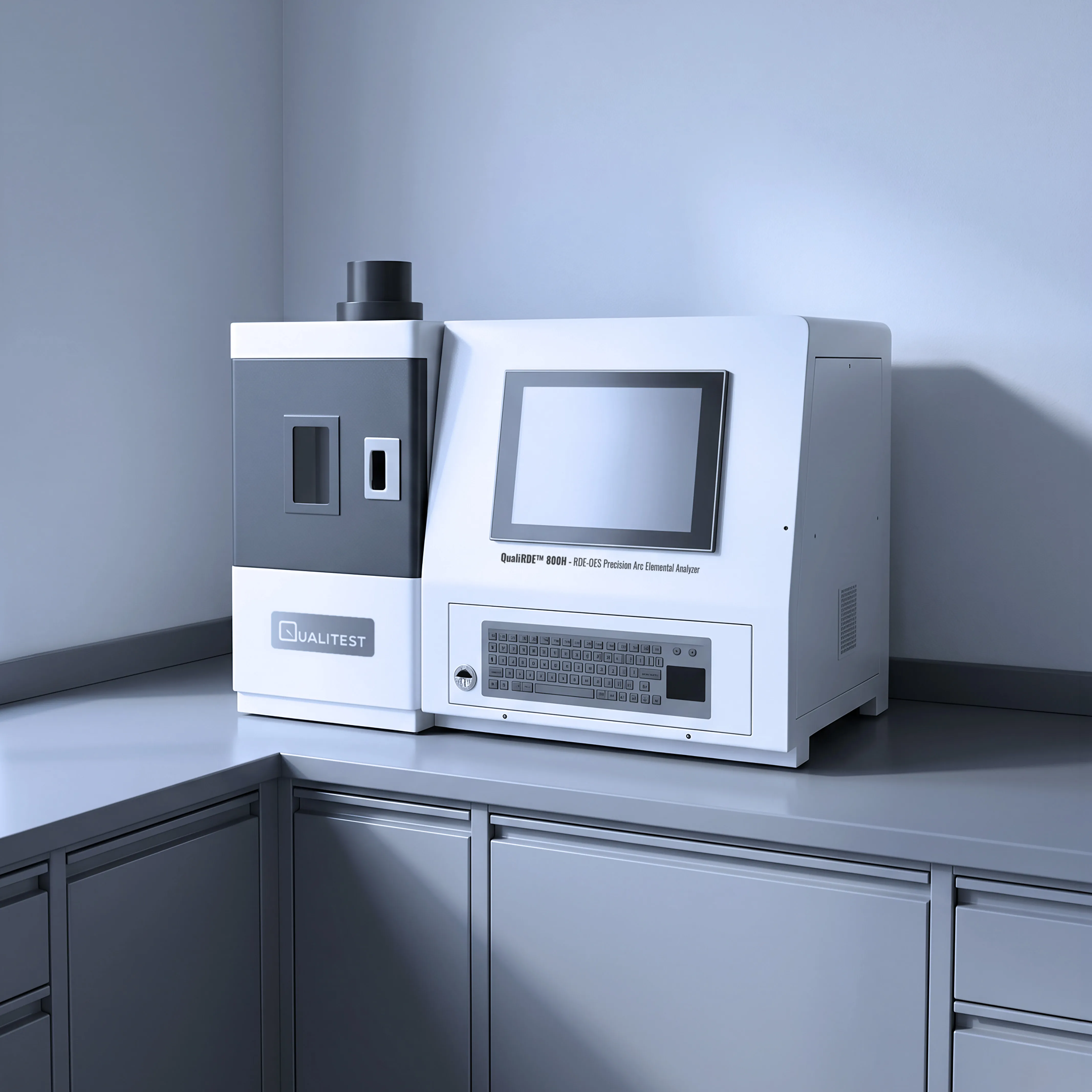

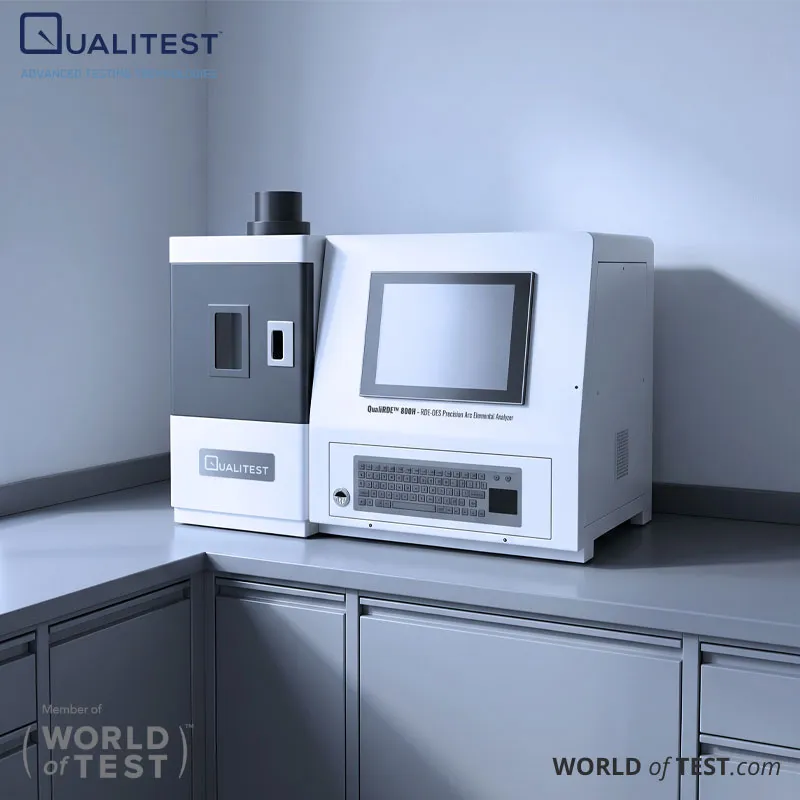

The QualiRDE™ 800H is a compact RDE-OES Precision Arc Elemental Analyzer for used lubricating oils and hydraulic fluids. It is designed to detect metallic wear particles, additive elements, and contaminants directly from the sample cup, helping laboratories and maintenance teams evaluate oil condition without lengthy preparation steps. Smaller and lighter than earlier designs while still supporting broad multi-element capability.

Its optical platform combines a 500 mm focal length, CCD detector architecture, and a Paschen-Runge optical structure with a Roland circle device. A multi-block high-performance CCD detector system, temperature stabilization, and software tools for analysis program editing, statistics, and reporting. Together, these features position the QualiRDE™ 800H as a practical RDE-OES solution for routine oil analysis in industrial and commercial laboratories.

RDE-OES Precision Arc Elemental Analyzer - QualiRDE™ 800H Applications

  • Used Lubricating Oil Analysis: the instrument is intended for elemental analysis of used lubricating oils to identify abnormal wear and contamination. ASTM D6595 specifically covers the determination of wear metals and contaminants in used lubricating oils and used hydraulic fluids using rotating disc electrode atomic emission spectroscopy.
  • Used Hydraulic Fluid Monitoring: hydraulic fluid analysis is another stated use case. This supports condition-based maintenance programs where rising metal content or contamination can indicate early component distress, lubricant degradation, or system cleanliness issues.
  • Fuel Contamination Screening: contaminants and corrosion-related materials in gas turbine and diesel engine fuels using RDE-AES, making the QualiRDE™ 800H relevant for selected fuel contamination screening workflows.
  • Predictive Maintenance Programs: predictive maintenance through quantification of wear metals such as iron, copper, and chromium. This makes the instrument suitable for maintenance teams that trend elemental data to support earlier intervention and better asset planning.
  • Industrial and Commercial Laboratory Use: such as industrial, transportation, energy, marine, defense, and commercial lab environments that rely on lubricant condition monitoring.
RDE-OES Precision Arc Elemental Analyzer

Standards

  • ASTM D6595 – Standard Test Method for Determination of Wear Metals and Contaminants in Used Lubricating Oils or Used Hydraulic Fluids by Rotating Disc Electrode Atomic Emission Spectrometry.
  • ASTM D6728 – Standard Test Method for Determination of Contaminants in Gas Turbine and Diesel Engine Fuel by Rotating Disc Electrode Atomic Emission Spectrometry.

RDE-OES Precision Arc Elemental Analyzer - QualiRDE™ 800H Key Features

RDE-OES Precision Arc Elemental Analyzer
  • Direct oil testing without pretreatment
    • Oil samples can be analyzed directly in the sample cup, with no dilution step and no requirement for auxiliary solvents, gases, or added chemical reagents. This supports a faster and simpler daily workflow.
  • Fast RDE-OES analysis
    • A single test time of 30 seconds or less than 30 seconds, helping laboratories process routine samples quickly.
  • High sensitivity for trace-level elemental detection
    • The published detection limit is below 1 ppm, with repeatability stated within ±10%. This makes the system suitable for low-level wear and contamination screening.
  • CCD full-spectrum analysis capability
    • Full-spectrum CCD analysis that helps support broader matrix and element configuration options, including future expansion.
  • 500 mm focal length optical design
    • The long focal length supports good resolution and also includes the Paschen-Runge and Roland circle optical structure description.
  • Broad wavelength coverage
    • A 200 to 800 nm spectral range. This broad range supports multi-element analysis across common oil-monitoring elements.
  • Digital arc light source control
    • A digital arc light source control system with small size, lighter weight, and stable excitation characteristics. It also uses FPGA-based parallel signal acquisition and control.
  • Editable analytical conditions
    • Excitation condition software can be modified, which helps application engineers identify and refine analytical conditions for oil monitoring work.
  • User-friendly software environment

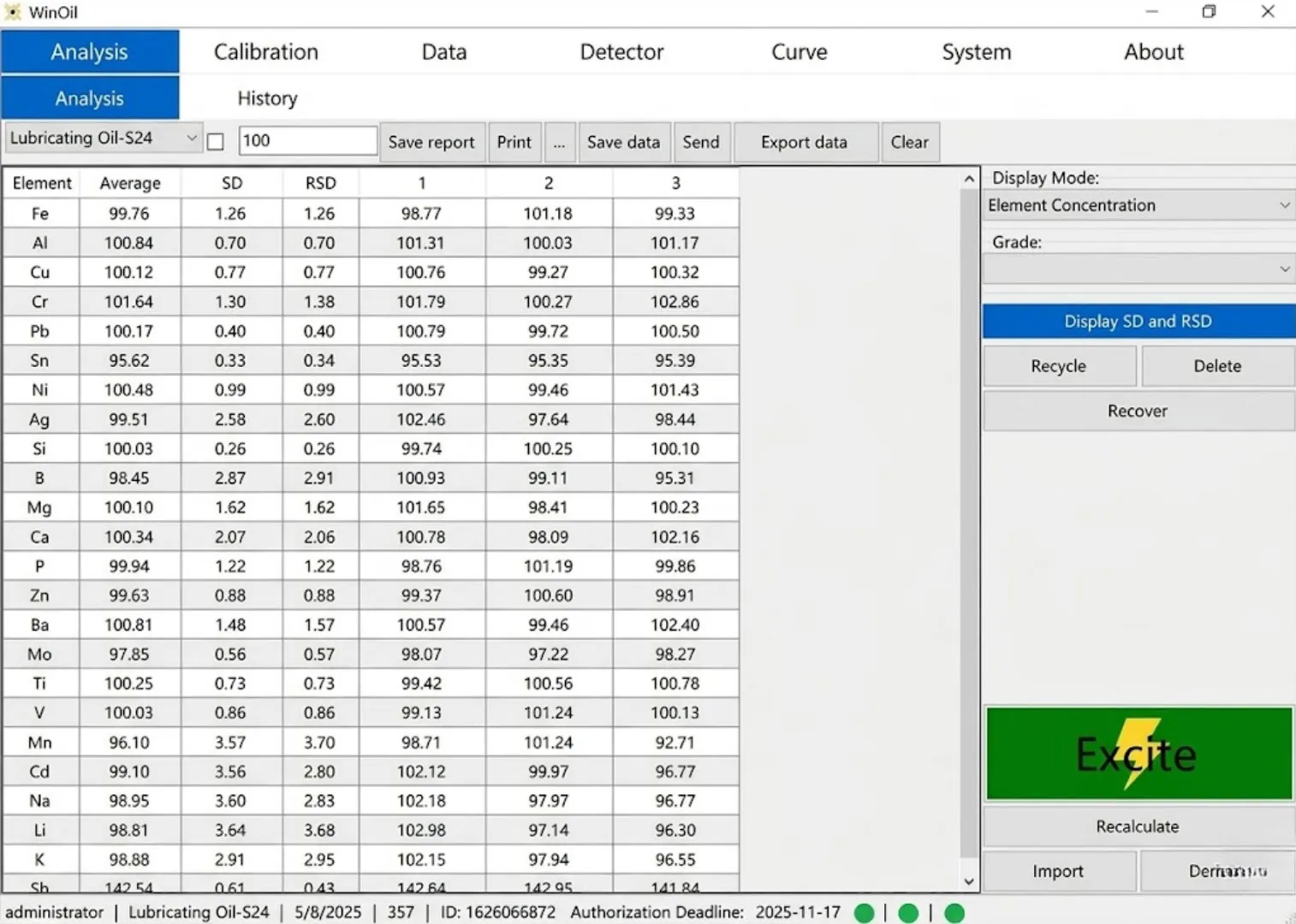

    • The software includes a graphical interface, method creation or modification, standard material library functions, statistics, and result marking for values outside the working curve range.
  • Expanded reporting tools
    • The system can print all excitation results or average values from up to 100 excitations, along with standard deviation and relative standard deviation.
  • Low-maintenance operation
    • The instrument is easy to use and maintain, with low professional requirements for operating personnel.
  • Continuous-duty stability
    • 24/7 working capability with strong stability and reliability, which is useful for laboratories running ongoing monitoring programs.

Theory and Method

RDE-OES or rotating disc electrode optical emission spectrometer is an elemental analysis method that excites the sample and measures the emitted light at characteristic wavelengths for each element. ASTM D6595 and ASTM D6728 both define this rotating disc electrode atomic emission approach for rapid detection of wear metals, contaminants, and corrosion-related materials in relevant oil and fuel matrices.

During operation, the sample is introduced to the excitation zone through the rotating disc electrode system, and the emitted light is measured by the optical system and detector. The QualiRDE™ 800H combines this method with CCD-based spectral acquisition, digital arc light source control, and software tools that help users configure analytical conditions, manage calibration-related functions, and report results efficiently.

Direct sample testing without dilution or added reagents. That workflow helps reduce sample preparation time and supports fast screening in routine maintenance and laboratory environments where quick turnaround matters.

RDE-OES Precision Arc Elemental Analyzer - QualiRDE™ 800H Technical Specification

ParameterQualiRDE™ 800H
ModelQualiRDE™ 800H
Analytical MethodRDE-OES / Rotating Disc Electrode Atomic Emission Spectrometer
Applicable StandardsASTM D6595, ASTM D6728
VoltageAC 220 V ±10%, 50/60 Hz; 110 V also available
Ambient Temperature0°C to 55°C
Test Time30 s
Optical StructurePaschen-Runge structure, Roland circle device
Optical Focal Length500 mm
Spectral Range200 to 800 nm
DetectorCCD
Detection ArchitectureMulti-block high-performance CCD detector system; each CCD 3648 pixels; up to 43,776-pixel resolution
Detection Elements24 elements standard, expandable to 32
Measuring Range0 to 6000 ppm
Detection LimitLess than 1 ppm
RepeatabilityWithin ±10%
Dimensions860 × 410 × 620 mm
Weight97 kg
