RDE-OES Standard Elemental Analyzer - QualiRDE™ 800

RDE-OES is widely used for fast elemental screening of in-service oils and related fluids. The QualiRDE™ 800 is designed for laboratories and maintenance programs that need quick detection of wear metals, contaminants, and additive elements without lengthy sample preparation. It uses rotating disc electrode optical emission spectrometry to deliver multi-element analysis in less than 30 seconds, helping teams make faster maintenance and fluid-condition decisions.

This RDE-OES Standard Elemental Analyzer supports routine oil analysis workflows in power generation, transportation, aerospace, defense, and heavy equipment maintenance. The platform combines a 500 mm focal length optical system, holographic diffraction grating, fast data acquisition, and intuitive software controls for stable, repeatable operation in busy lab environments.

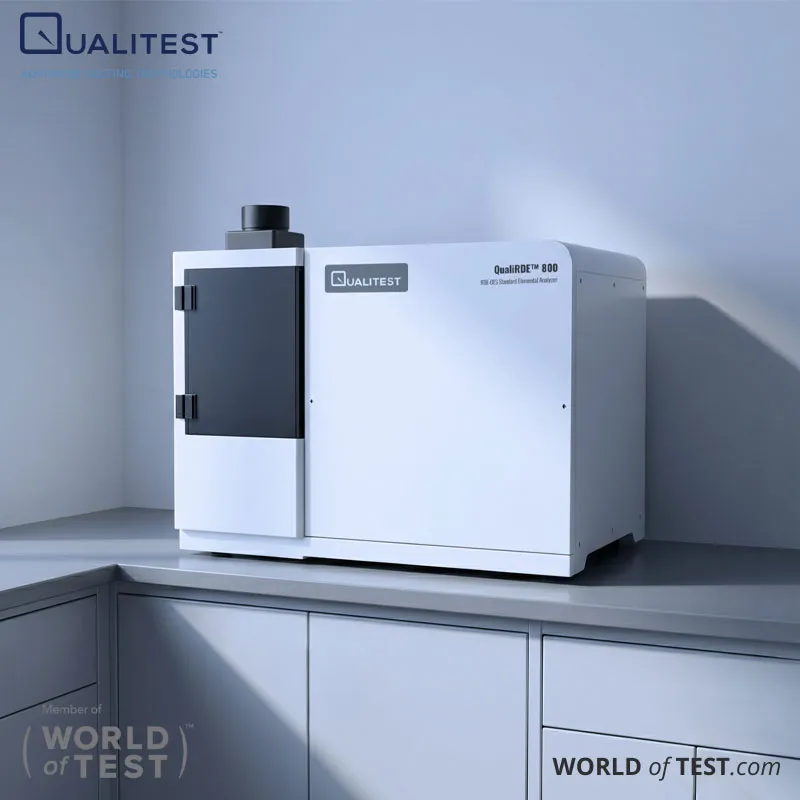

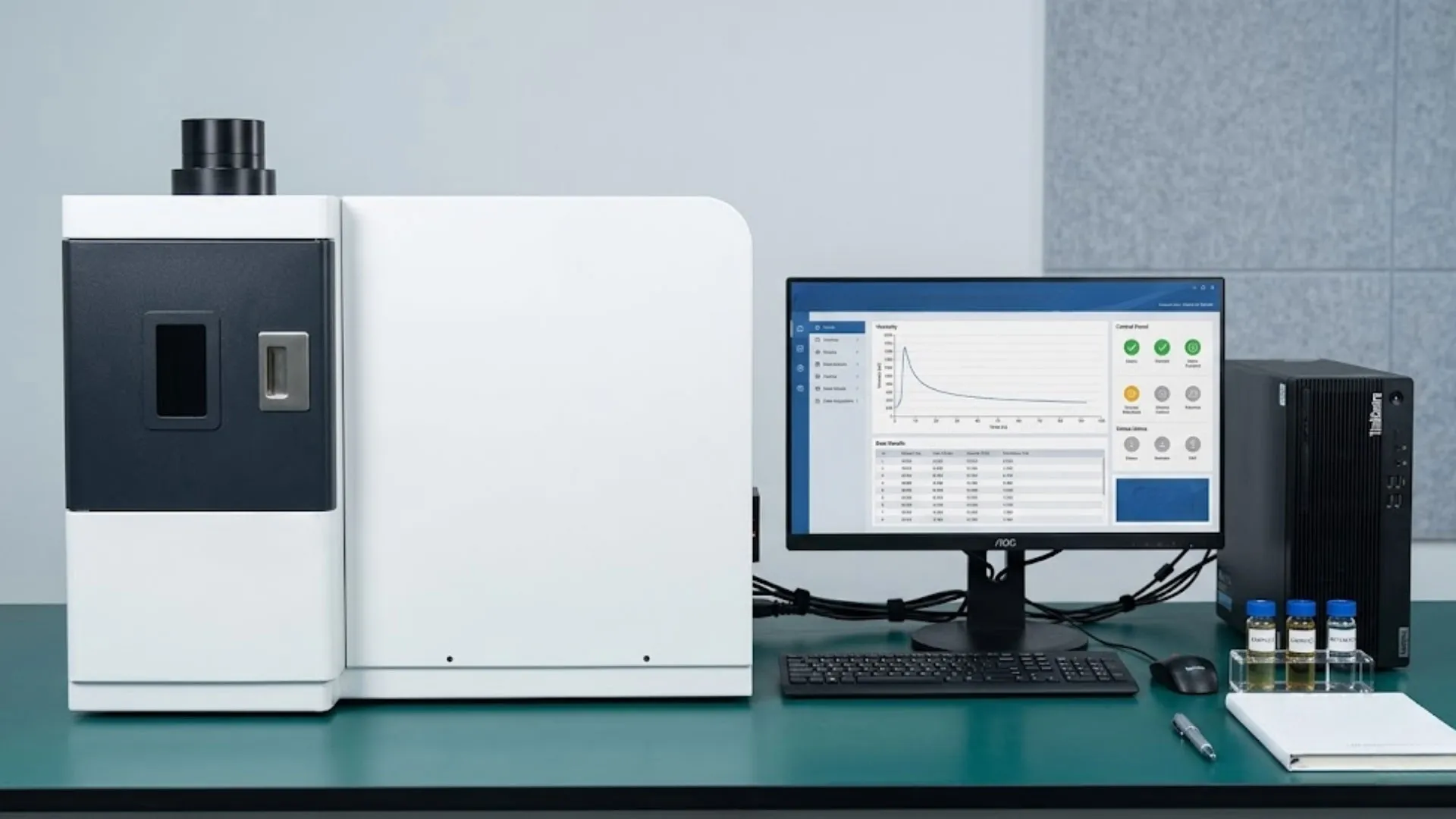

The QualiRDE™ 800 is a compact RDE-OES Standard Elemental Analyzer for rapid determination of metallic wear debris, contamination, and additive elements in used lubricants, hydraulic fluids, and selected fuel applications. It is intended for predictive maintenance, condition monitoring, incoming fluid checks, and troubleshooting programs where fast turnaround and multi-element capability matter.

This system performs direct oil analysis without dilution, auxiliary gases, or chemical reagents. Its optical design supports broad spectral coverage, while the software handles data acquisition, standardization, statistics, and reporting functions for efficient lab use. The result is a practical RDE-OES platform for organizations that need dependable screening of fluid condition and machine wear trends.

RDE-OES Standard Elemental Analyzer - QualiRDE™ 800 Applications

  • Used Lubricating Oil Analysis: the QualiRDE™ 800 is suited for elemental analysis of used lubricating oils to detect abnormal wear, contamination, and additive depletion. This helps maintenance teams track machine condition, flag unusual wear patterns, and support preventive or predictive maintenance programs.
  • Hydraulic Fluid Monitoring: hydraulic systems benefit from fast screening of metallic particles and contaminants that may indicate component wear or fluid degradation. Routine RDE-OES testing helps maintenance teams respond earlier to pump, valve, and system issues.
  • Fuel Contamination Screening: for applicable diesel and gas turbine fuel workflows, the instrument supports elemental contamination checks aligned with ASTM D6728-type testing needs. This is useful for identifying corrosive materials and other metallic contamination that may affect fuel performance or equipment health.
  • Aerospace, Defense, Power, and Transportation Programs: this analyzer in aerospace, military, electricity, and transportation sectors. These environments often rely on oil analysis to monitor engines, gearboxes, turbines, hydraulic circuits, and other fluid-lubricated assets.
  • High-Volume Maintenance Laboratories: with analysis times under 30 seconds and no sample pretreatment, the system fits laboratories that process many samples each day. The quick workflow supports faster reporting and easier trending across large equipment fleets.
RDE-OES Standard Elemental Analyzer - QualiRDE™ 800

Standards

  • ASTM D6595 – Standard Test Method for Determination of Wear Metals and Contaminants in Used Lubricating Oils or Used Hydraulic Fluids by Rotating Disc Electrode Atomic Emission Spectrometry.
  • ASTM D6728 – Standard Test Method for Determination of Contaminants in Gas Turbine and Diesel Engine Fuel by Rotating Disc Electrode Atomic Emission Spectrometry.

RDE-OES Standard Elemental Analyzer - QualiRDE™ 800 Key Features

RDE-OES Standard Elemental Analyzer - QualiRDE™ 800
  • Rapid multi-element analysis Delivers a single analysis in under 30 seconds, making it suitable for routine screening and higher-throughput maintenance workflows.
  • Direct sample testing without pretreatment Oil samples can be analyzed directly without dilution, auxiliary solvents, reagent gases, or added chemical reagents. This simplifies operation and reduces handling steps.
  • High-resolution optical design The system uses a high-performance holographic diffraction grating with 2700 lines/mm and a 500 mm focal length design for strong spectral resolution.
  • Low detection limits Detection limits below 1 ppm, supporting trace-level elemental monitoring in maintenance applications.
  • Broad spectral coverage The instrument is listed with spectral coverage in the 190–800 nm or 200–800 nm range depending on source wording, supporting multi-element measurement across a wide wavelength band.
  • Fast digital acquisition and control The analyzer incorporates microprocessor-controlled multi-channel integration, high-speed analog-to-digital conversion, and USB-based data handling for efficient control and processing.

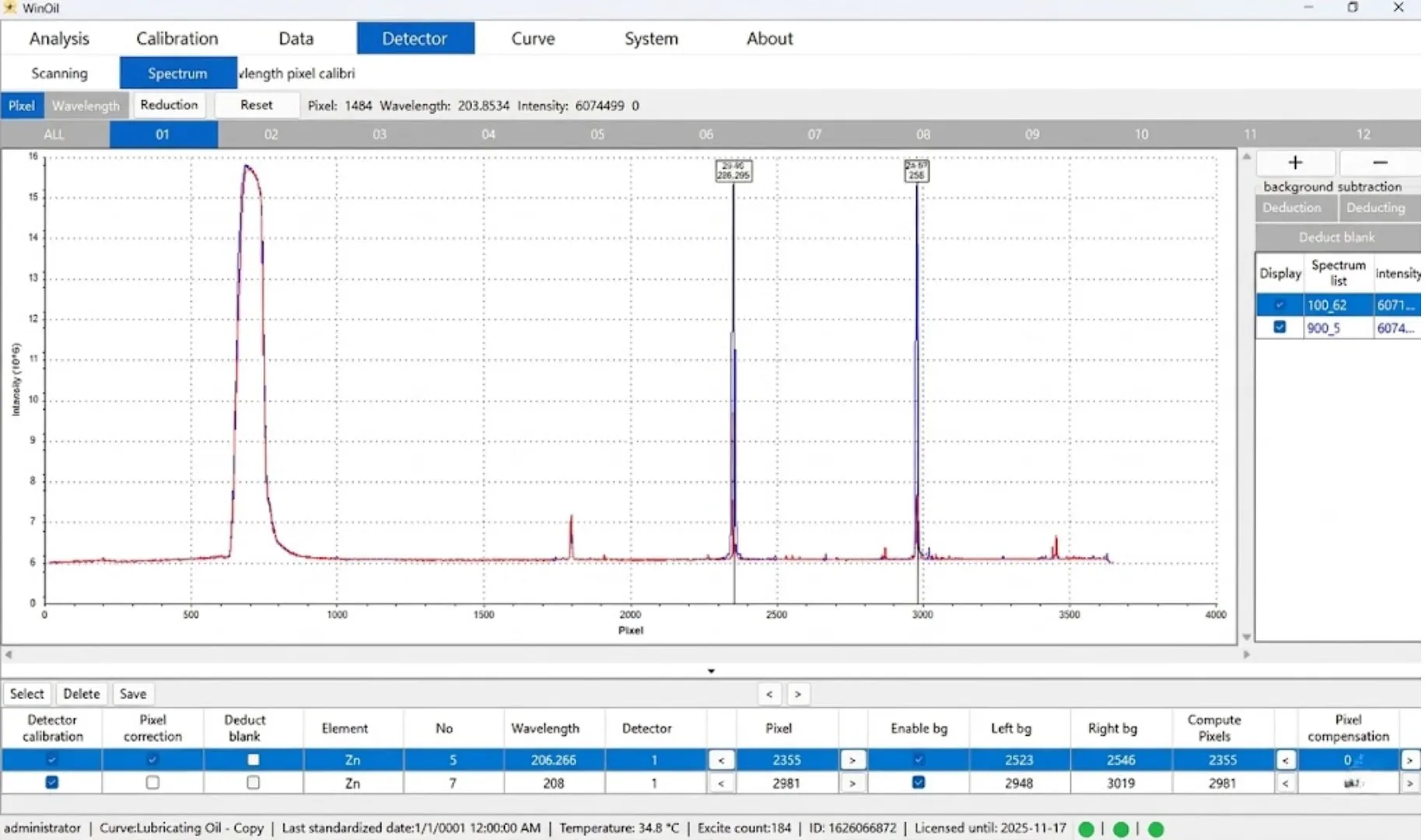

  • User-friendly software environment Software functions include easy graphical operation, method creation or editing, optional output formats, automatic standardization, statistical calculations, and result flagging beyond the working curve range.
  • Expanded reporting functions The system can print all excitation results or average values from up to 100 excitations, including standard deviation and relative standard deviation.
  • Easy operation and maintenance The instrument as simple to use, easy to maintain, and suitable for technicians with limited specialized training.
  • Stable continuous operation The Soohow page highlights 24/7 working capability with strong stability and reliability for regular lab use.
  • Supports wear, contamination, and additive tracking The analyzer is intended to quantify wear metals, monitor contamination, and follow additive element levels to support fluid health assessment.

Theory and Method

RDE-OES or rotating disc electrode optical emission spectrometer, measures metallic elements in oil or fuel by exciting the sample and reading the characteristic light emitted by each element. The technique is used for rapid multi-element analysis of wear metals, contaminants, and additive elements in service fluids.

During testing, a rotating graphite disc introduces a thin film of sample into the excitation zone. The energized sample emits light at element-specific wavelengths, and the spectrometer measures those wavelengths to calculate concentration levels. This method allows quick screening with minimal sample handling, making it highly practical for maintenance and routine condition monitoring.

The QualiRDE™8000 applies this principle through a holographic grating optical system, microprocessor-controlled acquisition, and software functions such as calibration support, statistical calculations, standardization, and result reporting. These functions help maintain consistent performance across repeated test cycles.

RDE-OES Standard Elemental Analyzer - QualiRDE™ 800 Technical Specification

ParameterQualiRDE™ 800
ModelQualiRDE™ 800
Analytical MethodRotating Disc Electrode Optical Emission Spectrometer (RDE-OES)
Optical SystemHigh-performance holographic diffraction grating
Grating Density2700 lines/mm
Detector / Readoutmulti-channel acquisition architecture or a multi-block high-performance CCD detector system
Focal Length500 mm
Spectral Range200–800 nm
Detection LimitLess than 1 ppm
Analysis TimeLess than 30 seconds per test
Sample PreparationNone required for routine analysis
Reagents / GasesNo auxiliary solvents, gases, or additional chemical reagents required
Data SystemMicroprocessor-controlled multi-channel integration and data acquisition
A/D ConverterHigh-speed 15-bit to 16-bit listing depending on source page
MicrocontrollerSP mixed-signal flash microcontroller, 100 MHz
InterfaceHigh-speed USB
Software FunctionsMethod creation/editing, standardization, statistics, output options, result flagging, print/average reporting
Voltage220 V ±10%, single phase, 50/60 Hz, 10 A, 1.5 kVA; 110 V available
Dimensions810 × 500 × 675 mm
Weight52 kg
Continuous Operation24/7 stability and reliability

Element Detection Range

ElementDetection RangeElementDetection Range
Fe0–1000Ba0–6000
Cr0–1000P0–6000
Pb0–1000Zn0–6000
Cu0–1000Mo0–1000
Sn0–1000Ti0–1000
Al0–1000V0–1000
Ni0–1000Mn0–1000
Ag0–1000Cd0–1000
Si0–1000Sb0–1000
B0–1000Li0–1000
Mg0–6000Na0–1000
Ca0–6000K0–1000
