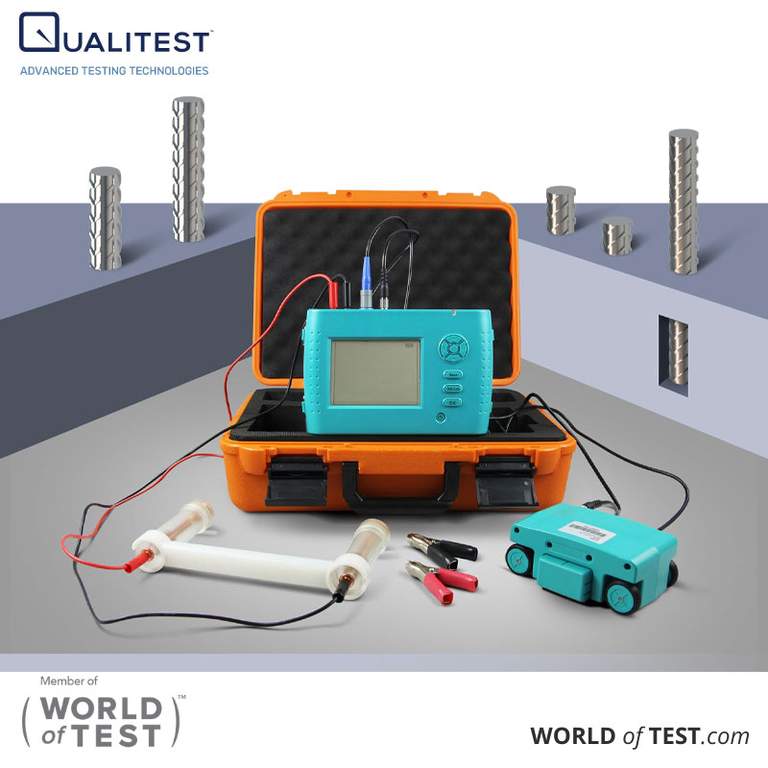

Rebar Locator & Corrosion Tester QualiRLCT™ 50B

Rebar Locator & Corrosion Tester QualiRLCT™ 50B is designed for detecting and scanning rebar in concrete. It measures depth, identifies rebar size and diameter, and assesses corrosion before drilling or core testing. Ideal for evaluating the structural condition of buildings, roads, highways, and other concrete structures.

Applications

Testing concrete cover thickness.

Test concrete member internal reinforcement position, rebar spacing, reinforcement position distribution.

Rebar corrosion.

Rebar Locator & Corrosion Tester QualiRLCT™ 50B Technical Specifications

REBAR DETECTION

Applicable steel-bar diameter

Dia.6mm~dia.50mm

Tested range of concrete cover thickness

Low range:6mm 90mm

High range:7mm 180mm

Tested range of Steel-bar diameter

Dia.6mm~dia.50mm

Permissible error of Steel-bar diameter

1 grade

Working environment

Temperature: -10°C +40°C

Dampness:<90%RH

EMI: no Strong electromagnetic field

Power supply

6 dry cells, work more than 30 hours

CORROSION DETECTION

Measuring Potential

1000mV

Measuring accuracy

1mV

Measuring space

1-99 cm (adjustable)

Environment Requirement

Ambient Temperature: -10°C +40°C, to avoid direct exposure to the sun for a long time.

Relative Humidity:<90%RH

Electromagnetic Interference: no strong alternating electromagnetic field.

Power supply

6 dry cells, work more than 30 hours
