Removable Panels for Cleanrooms

Removable Panels for Cleanrooms
Parent Product
Cleanrooms

Removable Panels for Cleanrooms

During the construction and use of cleanroom panels, local damage may occur, necessitating replacement and maintenance. Additionally, changes in process equipment and layout adjustments often require the removal of local walls. Traditional cleanroom panels are difficult to disassemble locally, causing inconvenience for both the construction team and the owner. Our rapid detachable technology effectively addresses these issues, allowing for easy and efficient local disassembly and reassembly.

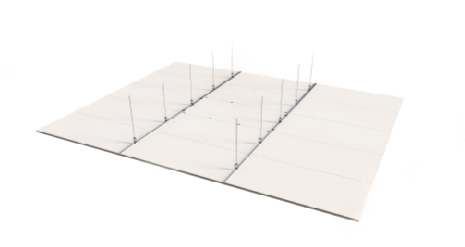

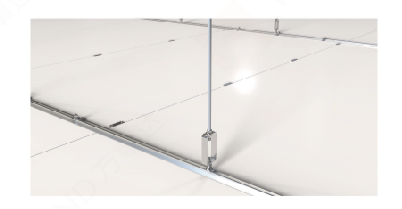

Removable Ceiling Panel

Removable Panels for Cleanrooms Removable Panels for Cleanrooms

Removable Panels for Cleanrooms Features

  • No need to remove all the walls, reducing the cost of panel replacement and making it more cost-effective.
  • Ensures no color difference, improving the overall aesthetics of the cleanroom.
  • Particularly suitable for reserved ports and vulnerable areas of cleanroom equipment.

Removable Panels for Cleanrooms Technical Specifications

Item Specification parameters (mm)
Width 980/1,180
Maximum length Maximum length 9000mm, the ceiling panel not exceed 3000mm
Thickness 50/75/100
Thickness of panel surface 0.4-0.6
Core material Rockwool (Bulk density 100-120 kg/m³), MGO board, Gypsum board, Aluminium honeycomb, Paper honeycomb
Frame thickness 0.6-0.8
Corner 0.5 (Galvanized)
Note: The final interpretation right of all parameters belongs to the technical center.
