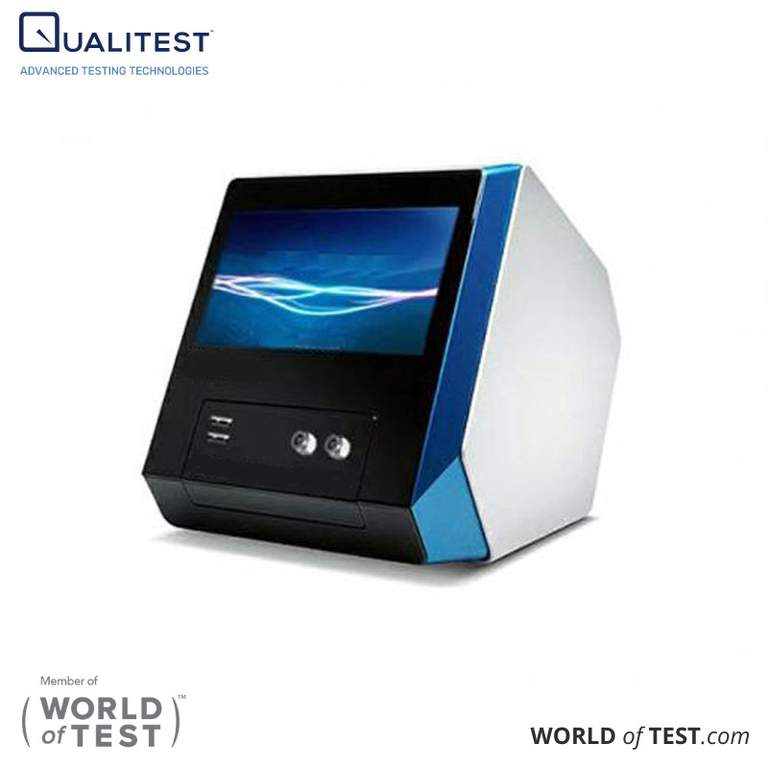

Respirator Fit Tester – For Face Masks - QualiFM™ RFT

Quantitative respirator fit testing evaluates facepiece seal integrity by replacing subjective human sensory reporting with direct numerical particle counting. Operating on Condensation Nuclei Counting (CNC) technology, the QualiFM™ RFT Respirator Fit Tester measures ambient airborne particle levels outside the facepiece relative to particle levels inside the mask cavity, verifying compliance with OSHA 29 CFR 1910.134, EN 149, GB 2626, and ISO standards.

Condensation Nuclei Counting (CNC) Operating Principle

The QualiFM™ RFT uses dual-channel optical particle sensing to quantify seal leakage without requiring manual mathematical conversion factors.

[ Ambient Airborne Particles (Cout) ]
                  │
                  ▼
┌───────────────────────────────────────┐
│   QualiFM™ RFT Particle Counter       │
│  (Condensation Nuclei Counting)       │
└───────────────────┬───────────────────┘
                  │
                  ▼
[ Particles Sampled Inside Mask (Cin) ]
                  │
                  ▼
Calculation: Fit Factor (FF) = Cout / Cin

• Alcohol Vapor Condensation: Sub-micron airborne particles pass through an internal saturation chamber fueled by 99.5%+ reagent-grade isopropyl alcohol. The alcohol vapor condenses onto microscopic particles, growing them into larger droplets that pass through an optical laser chamber for precise digital counting.
• Precision Airflow Control: A sensor-controlled internal pump maintains a regulated sampling flow rate of 2 L/min.
• Wide Detection Range: Accurately measures particle concentrations from 0 to 100,000 particles/cm³.
• Low Noise Output: Operates quietly below <65 dB, making it suitable for clinical and production environments.
• Data Traceability: Onboard digital operating software supports full audit trail tracking, LIMS network integration, and dataset standard deviation statistical calculations aligned with GMP appendix requirements.

Quantitative (CNC) vs. Qualitative Testing Methods

While qualitative checks rely on a worker detecting sweet or bitter mists, quantitative particle counting delivers verifiable numerical data:

• Eliminating Discrepancies: Comparative research shows qualitative mist checks and quantitative particle counters disagree roughly 12% of the time, yielding an agreement rating of just 0.63, which falls short of the standard 0.70 reliability benchmark.
• Removing Human Error: CNC testing eliminates reporting errors caused by head colds, olfactory fatigue, or subjective reporting.
• Mandatory High-Protection Testing: Qualitative checks are legally prohibited for full-face respirators, PAPR units, and SCBA apparatuses, making quantitative CNC testing mandatory for higher protection levels.

Fit Factor (FF) Mathematics & Pass Thresholds

The Fit Factor Calculation

The Fit Factor (FF) represents the mathematical ratio of ambient particles outside the mask (C_out) relative to particles sampled inside the mask cavity (C_in):

FF = C_out / C_in

Mandatory Regulatory Pass Thresholds

• Half-Masks & Filtering Facepieces (N95/N99/N100, P1/P2/P3): Must achieve a score of FF ≥ 100.
• Full-Face Masks, PAPR & SCBA Units: Must achieve a score of FF ≥ 500.

Harmonic Mean Aggregation

Because fit testing involves multiple physical movements, step scores (FF_i) are aggregated into an overall score using a harmonic mean calculation:

Overall FF = N / ∑(1 / FF_i)

This mathematical structure ensures that brief periods of severe leakage during movement heavily impact the final score, preventing unsafe masks from passing.

Standard OSHA & International Exercise Protocols

The QualiFM™ RFT features customizable exercise parameters to execute standard regulatory testing routines:

• Standard OSHA 8-Step Protocol: Normal breathing, deep breathing, turning head side-to-side, moving head up-and-down, talking out loud, grimacing, bending over, and final normal breathing.
• Modified Fast 4-Step Protocol: Normal breathing, turning head side-to-side, moving head up-and-down, and bending over. Reduces total test duration by 50% while maintaining statistical equivalence.

Fit Testing vs. Daily User Seal Checking

Manual user seal checks, such as cupping hands over filters upon donning, fail to identify leaking facepieces 80% of the time in clinical trials. Quantitative fit testing with the QualiFM™ RFT provides the objective measurement necessary to guarantee actual seal integrity.

Mask Compatibility Range

The QualiFM™ RFT evaluates fit factor scores across a complete spectrum of tight-fitting respiratory protective equipment:

• Filtering Facepieces: Disposable N95, N99, N100, and P1/P2/P3 series masks.
• Elastomeric Respirators: Reusable half-masks and full-face masks.
• Specialized Protective Equipment: Powered Air-Purifying Respirators (PAPR), Self-Contained Breathing Apparatus (SCBA), and industrial gas masks.
