Rockwell Hardness Tester

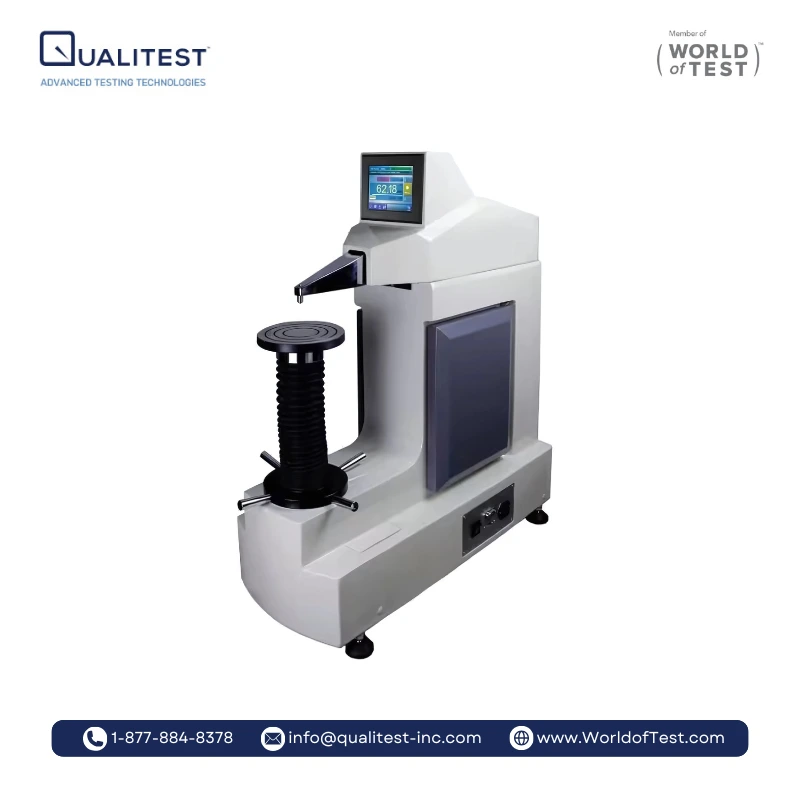

Digital Load Cell Rockwell Hardness Testers - QualiRock

ASTM E18, ISO 6508

Applications

QualiRock Digital hardness testers are our top-of-the-line load cell type Digital Rockwell hardness testers which meet and exceed ASTM E-18 requirements. Available in two versions of QualiRock-R Regular Rockwell or QualiRock-RS TWIN Rockwell (Regular & Superficial Rockwell scales), these advanced and highly accurate hardness testers are ideal instruments for both lab environments as well as production floor.
Additional advantages that make the QualiRock Series hardness testers, top contenders on the market are the 2 year warranty, extended indenter nose design for convenient inside or outside of test pieces hardness measurement, easy to use and stylish design, high definition backlit LCD, Auto conversion to other hardness scales, USB interface, built-in printer, low maintenance and rugged construction, as well as unbeatable price/quality ratio.

Able to test both metal and plastic.

Features

  • Horizontal Protrudent Indenter Design, suitable also for internal and external testing
  • Modern design with Titanium metallic Silver finish
  • Load Cell Type
  • Able to test both metal and plastic
  • Testing on Surfaces difficult to reach
  • Testing internal surface of rings and tubes with diameters over 23mm
  • Testing external surface of round bars with diameters over 3mm
  • Ideal design of indenter arm is for testing hardness on both regular flat surface and inside diameters
  • Automatic test procedure
  • High definition backlight LCD
  • Simple and easily selectable operation menu
  • USB data output
  • Unbeatable Cost/Quality Ratio
  • 2 Years Warranty

Technical Specifications

Specifications:

QualiRock-R (Rockwell Regular)

QualiRock-RS (Twin model)

Hardness Scales

Rockwell A, B, C, D, E, F, G, H, K, L, M, P, R, S, V

Rockwell A, B, C, D, E, F, G, H, K, L, M, P, R, S, V

15 scales in total

15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y

30 scales in total

Resolution

0.1 Rockwell Unit

Pre-Load

98.07N / 10kgf

98.07N/10kgf, 29.42N/3kgf

Total Load

588.4N/60kgf, 980.7N/100kgf, 1470.1N/150 kgf

588.4N/60kgf, 980.7N/100kgf, 1470.1N/150 kgf

147N/15kgf, 294.2N/30kgf, 441.3N/45kgf

Display

Matrix Backlight LCD

Operation method

Membrane keypad, menu

Test Process

Automatic

Load Duration

1-50 seconds, Can be set, dynamically displayed and stored

Functions:

Upper/ Lower hardness limits setting & alarming

Data statistics: Max., Min., S, R

Scales conversion: convert measured value to Vickers, Brinell, Leebs, etc.

Curvature correction: Cylinder & sphere

Applicable standard:

ASTM E-18, ISO 6508-1999

Testing Space:

Vertical: 300mm - 11.8 inches

Horizontal: 220mm – 8.7 inches

Tested workpiece:

External Cylinder: Min. Ø 3mm, Internal Cylinder: Min. Ø 23mm

Voltage:

110V/220V 50Hz, 4A

Frame Deformation:

+/- 0.5% (ASTM E18 Requires less than +/-1%)

Transducer Accuracy:

+/- 0.3μm Regular Rockwell (ASTM E18 Requires +/- 1.0μm Regular Rockwell)

+/- 0.5μm Superficial Rockwell (ASTM E18 Requires +/- 0.5μm Superficial Rockwell)

Repeatability:

0.5 up to 1.0 (HRC Scale) (ASTM E18 Requires, 1.0, 1.5 up to 2.0 on the HRC scale)

Tolerance of applied force:

Within 0.5% (ASTM E18 requires 0.6-0.75%)

Dimensions:

690 x 280 x 860 (27.2x11x33.8 in.)

690 x 280 x 860 (27.2x11x33.8 in.)

Weight:

86kg (190lb)

Standard Configuration:

Main unit, 1 HRC Test Block, 1 HRB Test Block, (15N, 30N, 30T Blocks with QualiRock-RS), 120° diamond penetrator, 1/16" steel ball indenter, 1/16" steel balls, Round flat anvil, V- anvil, Power cable, Manual
