Rotary Mode Spout Sealing Machine QualiSSM-3000Z (Three-station) Features
- During operation, tube feeding, bag feeding, heat sealing, and discharge are fully automated, making it easy to use. For online production of two to three machines, only three to four people are needed, while a single machine requires only one person, saving labor and allowing for flexible control of orders.
- Turntable structure saves space.
- The LCD touch screen allows for function settings with simple operation, precise control, stable performance, and the capability to work continuously for extended periods.
- Uses imported temperature control modules, SMC pneumatic components, and Omron PLC control units to ensure quality, performance, and longevity.
- Features automatic fault detection, alarm, stop, diagnosis, and fault location display.
- Consists of a spout feeding system, a pouch feeding system, a heat sealing system, and a pouch collecting system, with each component operating fully automatically. Production speed can reach 80-120 pieces per minute.
- The spout delivery system is fully automated, efficient, and accurate.
- The pouch feeding system uses a three-station design, making it three times more efficient.
- Working speed for regular pouches: 80~120 pieces/minute. Position accuracy: ≤0.02 mm.
- Heat sealing tool: Preheating: 1 group, Heat sealing: 4 groups, Cooling: 1 group. Temperature range: 0~300℃.
- Power supply: 380V, 50Hz. Power: 13KW. Air pressure requirements: 0.8MPa, 45 liters/minute.
- Instrument Size: 2800mmx3100mm*1800 mm (L x W x H). Net weight: 3000KG. Instrument Color: Case stainless steel original color. Control system: PLC.
- The size of the delivery pouch can be adjusted within a maximum length of 230mm and a maximum width of 120mm, with customization available according to customer needs.
- The heat sealing system features a step-by-step heating and cooling design for better product quality. The sealing knife is replaceable to adapt to different spouts.
System Structures

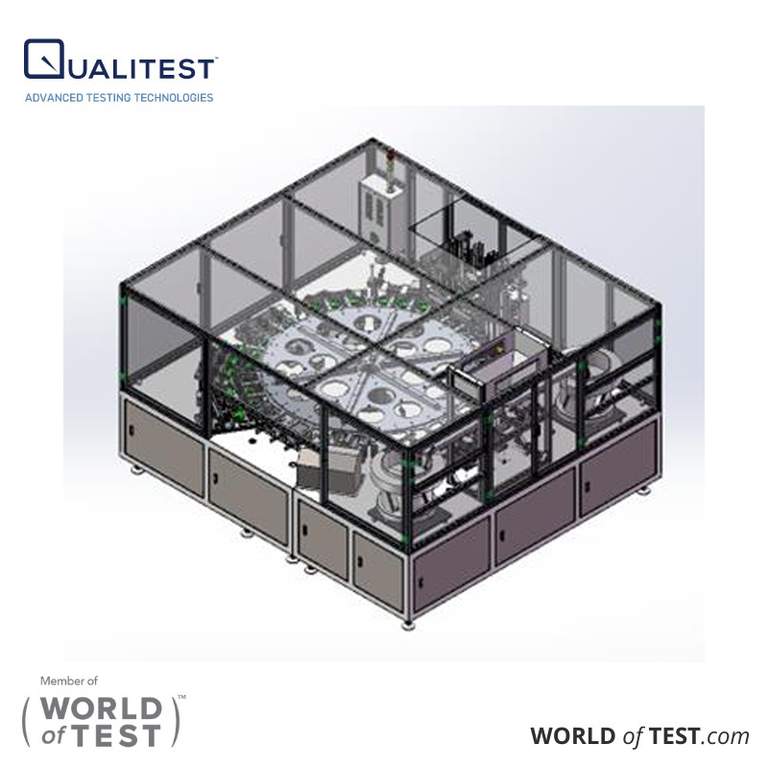

- Fully Automatic Rotary Mode Spout Sealing Machine SSM-3000Z includes a spout feeding system, a pouch feeding system, a heat sealing system, a pouch collecting system, a central control system, and a base.
- The spout feeding system comprises a hopper, a vibrating plate, and a slide rail. A photoelectric sensor automatically senses the spout to control the feeding action.
- The pouch feeding system uses pneumatic suction cups for feeding pouches.
- The heat sealing system includes a large turntable, heat sealing knives, and a workstation. It features 6 sets of heat sealing knives: 1 set for preheating, 4 sets for heat sealing, and 1 set for cooling.
- The heat sealing station frame is adjustable to accommodate bags of various sizes. Users can customize heat sealing knives to fit different spouts.
- Each heat sealing knife group has independent temperature control, allowing for individual temperature settings, operation, and debugging.
- The pouch collection system includes a finished product collection table and a recycling table for unsuccessful pouches. It utilizes photoelectric induction and pneumatic control for automatic edge swing, achieving full automation.
- The control panel features a touch screen for setting various parameters and displaying real-time working status, such as the number of finished products, time, success rate, and failure rate.
- The machine includes a 12-channel temperature control system, 9 high-precision pressure regulating valves (with built-in pressure gauge), and 2 to 4 emergency stop buttons, which can be installed as needed. The base is designed for easy disassembly, transportation, and assembly.
