Salt Spray Corrosion Test Chamber

Operating Principles & Fluid Sequence

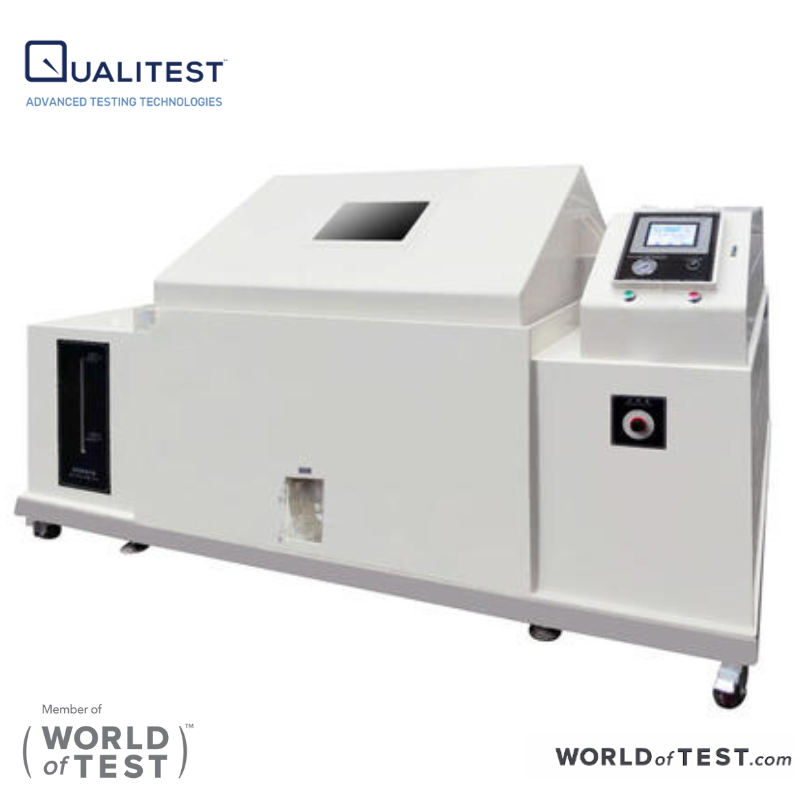

Salt spray corrosion testing accelerates atmospheric metal degradation by atomizing a 5% sodium chloride (NaCl) solution into a fine, suspended aerosol fog. In Qualitest salt spray test chambers, including the QSST and PQSST Series, pressurized air passes through a saturated humidifying tower before drawing saline solution through a titanium atomizing nozzle to maintain uniform fog deposition per ASTM B117, ISO 9227, JIS Z 2371, and ASTM G85.

flowchart LR
    A[Compressed Air Supply] --> B[Warm Saturation Tower at 47°C]
    B --> C[Titanium Atomizing Nozzle]
    D[NaCl Solution Reservoir] --> C
    C --> E[Suspended Salt Fog]
    F[Testing Chamber at 35°C] <-- E
    F --> G[Slanted Test Specimens]
    G --> H[Corrosion Rate Analysis]

Figure 1: Thermodynamic fluid sequence inside a salt spray testing chamber.

1. Compressed Air Humidification: Clean air enters the saturation tower at ~47°C to achieve 100% relative humidity, preventing salt recrystallization at the nozzle tip.

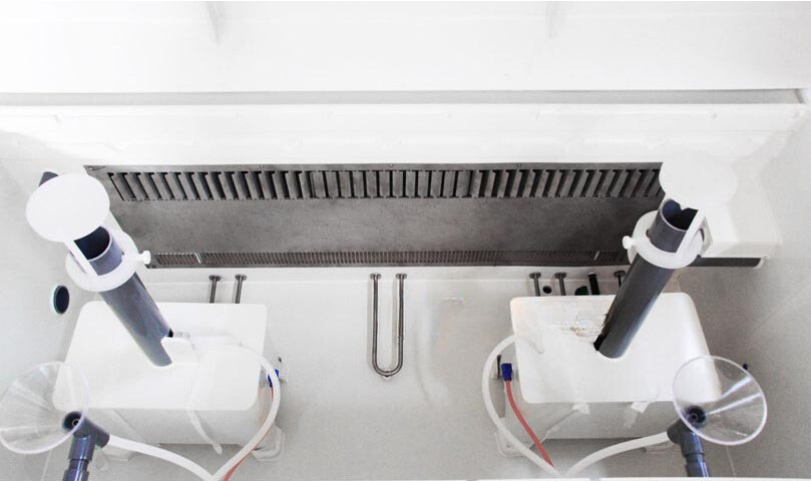

2. Solution Atomization: Pressurized air creates a suction effect across a titanium alloy nozzle, drawing a 5% NaCl solution from the internal reservoir.
3. Aerosol Suspension: The liquid converts into micro-droplets (0.1 to 0.5 µm) that float evenly throughout the chamber volume.

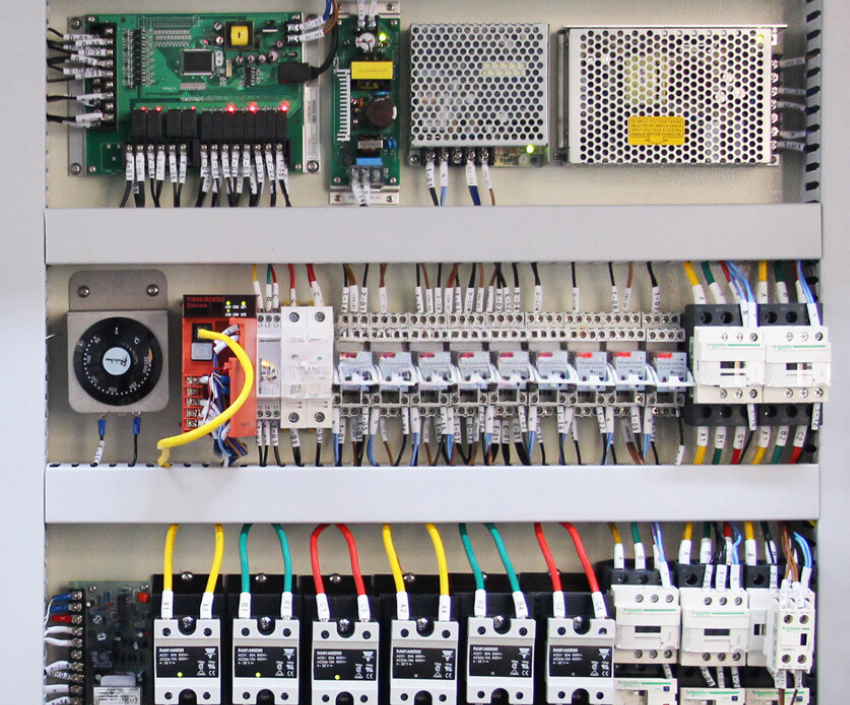

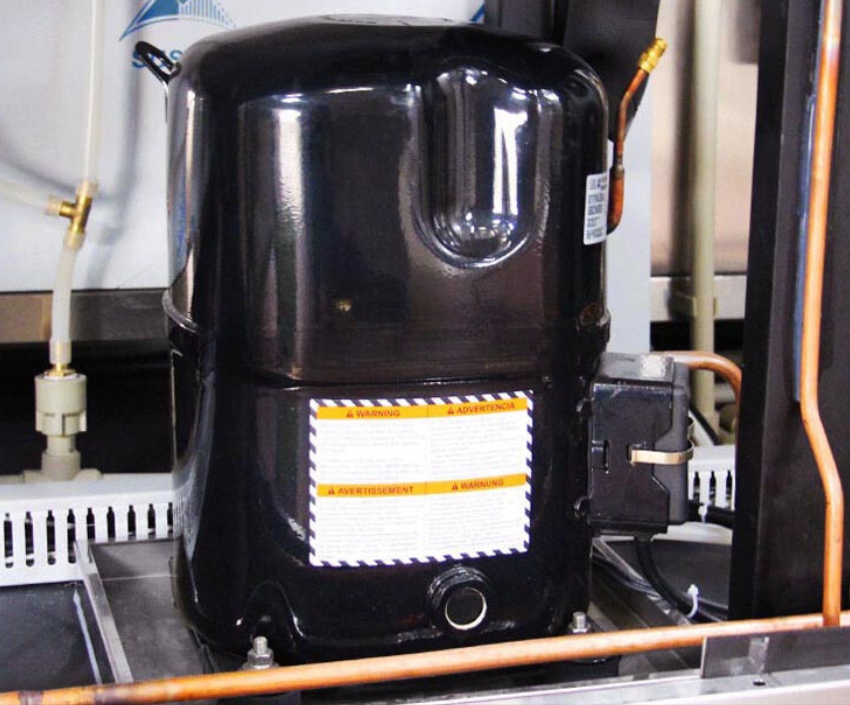

4. Isothermal Chamber Control: The internal testing room maintains a continuous 35°C ± 2°C temperature through digital PID regulation.
5. Specimen Exposure: Test coupons sit at a 15° to 30° incline to ensure uniform fog settling while allowing continuous liquid drainage.

Chamber Design Geometry & Test Parameters

┌────────────────────────────────────────────────────────────────────────┐
│                        CHAMBER ROOF / LID DESIGN                       │
│                                                                        │
│                   /\  <- Angled Lid (100° – 120°)                      │
│                  /  \                                                  │
│                 /    \   Prevents droplets from dripping directly      │
│                /      \  onto test specimens                           │
│               /________\                                               │
│              │          │                                              │
│              │  [Fog]   │                                              │
│              │          │                                              │
│              └──────────┘                                              │
└────────────────────────────────────────────────────────────────────────┘

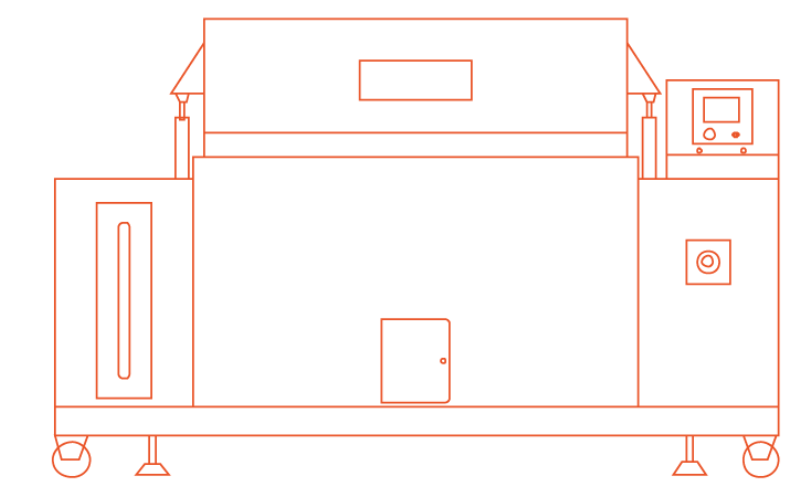

Chamber lid geometry features a 100° to 120° peaked roof angle. This design relies on surface tension to channel ceiling condensate down internal walls, preventing droplets from falling directly onto specimens and causing localized testing errors.

Method Variations: Acetic Acid Salt Spray (AASS) and Copper-Accelerated Acetic Acid Salt Spray (CASS) lower pH to 3.0 to 3.3 using glacial acetic acid and cupric chloride, raising chamber heat to 50°C to accelerate electroplated coating breakdown.

Thin-Film Electrochemical Kinetics & Evaluation Methods

Salt fog exposure accelerates corrosion kinetics up to fivefold compared to full saline immersion. Atomized micro-droplets form a thin electrolyte film on the metal surface, dramatically shortening oxygen diffusion paths to cathodic sites.

Anodic Metal Oxidation: Fe → Fe²⁺ + 2e^-

Cathodic Oxygen Reduction: O₂ + 2H₂O + 4e^- → 4OH^-

                         THIN SURFACE LIQUID FILM
       Atmospheric Oxygen ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~   Rapid Oxygen Transfer
            │                         │                            │
            ▼                         ▼                            ▼
     ┌──────────────┐          ┌──────────────┐             ┌──────────────┐
     │ Cathodic Zone│          │ Salty Liquid │             │ Anodic Zone  │
     │ O₂ Reduction │◄─────────┤ High Ionic   ├────────────►│ Metal Loss   │
     │ Hydroxide    │          │ Conductivity │             │ Fe ──► Fe²⁺  │
     └──────┬───────┘          └──────────────┘             └──────┬───────┘
            │                                                      │
            └────────────────── Metal Substrate ───────────────────┘

Specimen Angle Mechanics:

• Horizontal Orientation (0°): Causes liquid pooling, increasing film thickness and restricting oxygen transport, which produces artificially low corrosion rates.
• Slanted Orientation (15° to 30°): Maintains a thin liquid layer while facilitating constant drainage of corrosion byproducts.

Post-Exposure Quantitative Methods:

• Mass Loss Determination (ASTM G1): Chemical cleaning of corrosion products followed by weight loss measurement to calculate wear rate. Structural steel typically loses 4.5 to 6.7 mm/year under wet salt fog.
• Electrochemical Impedance Spectroscopy (EIS): In-situ measurement of polarization resistance (R_p) to evaluate barrier coating failure.
• Surface Characterization (SEM-EDS): High-magnification microscopy mapping pit morphology and corrosion product composition.

Testing Methodology: Static NSS vs. Cyclic Testing (CCT)

Static Neutral Salt Spray (NSS) testing under ASTM B117 maintains constant wet fog exposure. However, real-world outdoor weathering involves alternating wet, dry, and humid cycles.

       STATIC SALT SPRAY (NSS)                          CYCLIC CORROSION TESTING (CCT)
┌─────────────────────────────────┐               ┌─────────────────────────────────┐
│ Continuous Salt Fog (35°C)      │               │ Salt Fog ➔ Dry Heat ➔ Moisture  │
├─────────────────────────────────┤               ├─────────────────────────────────┤
│ • Continuous wet film           │  ───────►     │ • Alternating humidity cycles   │
│ • Constant static environment   │  METHODOLOGY  │ • Matches natural wet/dry decay │
│ • Comparative baseline data     │  EVOLUTION    │ • Realistic field correlation   │
└─────────────────────────────────┘               └─────────────────────────────────┘

Advanced cyclic corrosion chambers, such as the Qualitest QCCT Series, expand on standard salt spray methodology by automating multi-stage exposure cycles:

• Salt Fog Phase: Standard NSS or CASS atomization establishing initial electrolyte wetting.
• Dry Stage: High-temperature air purging that evaporates surface moisture, inducing salt crystallization stress.
• Controlled Humidity Phase: Regulating relative humidity to approximately 75% RH to evaluate energized electronics without triggering short circuits.
• Combined Weathering Cycles: Integrating temperature swings and UV cycles to replicate natural atmospheric degradation.
