Sample Cutter for Plastic Film, and Paper Tensile Strips Q-2SC

Sample Cutter for Plastic Film, and Paper Tensile Strips Q-2SC
Parent Product
Sample Cutters for Plastic Film & Paper Specimens

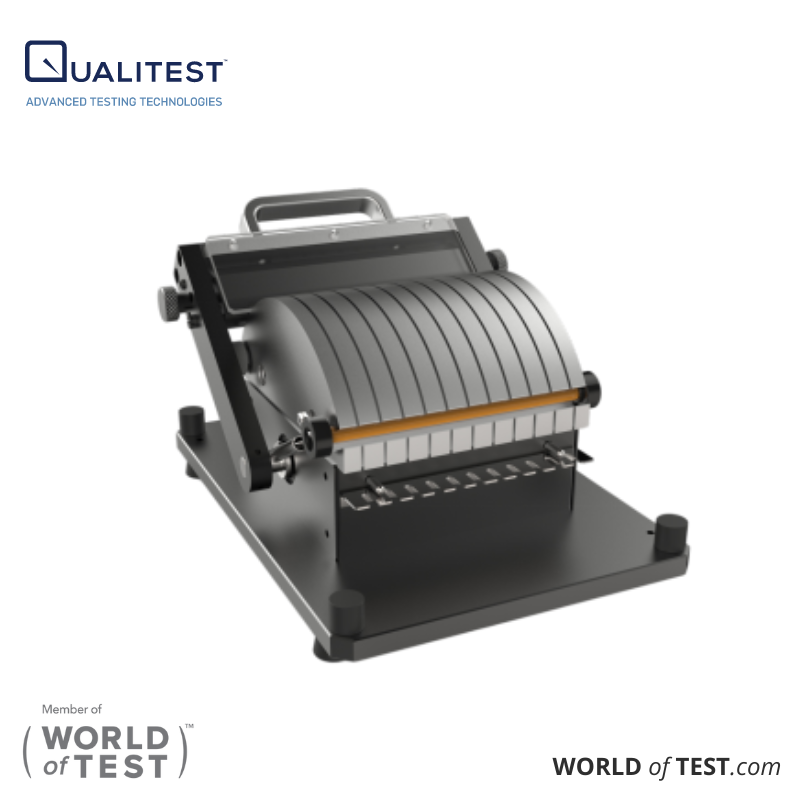

The Q-2SC Sample Cutter is designed for cutting samples from various plastic films, paper, and other materials in preparation for stretching, peeling, and heat sealing tests. This cutter is both easy and efficient to operate, enabling precise cutting of samples to standard required sizes.

Sample Cutter for Plastic Film, and Paper Tensile Strips Q-2SC

Sample Cutter for Plastic Film, and Paper Tensile Strips Q-2SC



Sample Cutter for Plastic Film, and Paper Tensile Strips Q-2SC Features:

  • Standard Compliance: Meets the sample creation requirements for Type 2 specimens according to standard GB/T 1040.3.
  • High-Quality Blades: Equipped with high-quality tungsten steel blades that are finely ground for sharpness and durability, boasting a hardness of up to 92 HRA.
  • Precision Cutting: Ensures accurate sample sizes with no damage, delivering smooth and burr-free edges.
  • Spring Tension: Features spring tension for easy sample placement and smooth cutting.
  • High Efficiency: Capable of cutting up to 12 samples in a single pass, enabling efficient production of large sample batches.
  • Safety Protection: Includes a protective layer over the blade to prevent direct contact, enhancing user safety.
  • Customizable Widths: Offers customizable sample widths to meet the diverse needs of our customers.

Sample Cutter for Plastic Film, and Paper Tensile Strips Q-2SC Technical Specifications:

Cut Size15 mm x 210 mm (Width optional)
Number of Samples12 pcs (Single Layer)
Sample ThicknessUp to 200 μm
Product Dimensions250 mm x 350 mm x 248 mm
Weight11 kg (24.25 lbs)
